Tropical Storm 03R

Passive Microwave (PMW) Intensity Information
Hurricane Intensity Estimation (HIE) Algorithm
Version 9.0


         Overpass     Inten           Ring    Ring          Wind           Forecast        Final        Target
       Date    Time   Score  Meaning   Pct    Diam  BTdiff   Est   Sat    Lat    Lon    Lat    Lon    Lat    Lon
     20191204 014350    N/A      N/A   N/A     N/A     N/A  20.0 SSMI18  -4.7  -64.4   -4.7  -64.4   -5.3  -64.6 Analysis Plot
     20191205 124934  -21.7      N/A 100.0%  22.22    6.65  50.0 SSMI16  -9.0  -63.1   -9.4  -62.7   -9.4  -62.7 Analysis Plot
     20191205 134745  -25.4      N/A 100.0%  22.22   10.35  50.0 SSMI18  -9.0  -63.0   -9.4  -62.7   -9.4  -62.7 Analysis Plot
     20191205 205453   84.7  >85 kts 100.0%  11.11   69.75  90.0    GMI -10.3  -62.4  -10.2  -62.2  -10.2  -62.2 Analysis Plot
     20191205 211932  100.3  >85 kts 100.0%  11.11   85.32  90.0  AMSR2 -10.4  -62.3  -10.3  -62.2  -10.3  -62.2 Analysis Plot
     20191206 002101   38.1  >65 kts 100.0%  11.11   23.14  90.0 SSMI16 -10.6  -62.3  -10.3  -62.3  -10.3  -62.3 Analysis Plot
     20191206 011755   44.2  >65 kts 100.0%  11.11   29.20 120.0 SSMI18 -10.5  -62.2  -10.4  -62.2  -10.4  -62.2 Analysis Plot
     20191206 093519    N/A      N/A   N/A     N/A     N/A  95.0  AMSR2 -11.1  -62.2  -11.2  -62.2  -11.2  -62.2 Analysis Plot
     20191206 125823    1.8      N/A   N/A  222.20    1.79  95.0 SSMI15 -11.1  -62.2  -11.4  -62.4  -11.4  -62.4 Analysis Plot

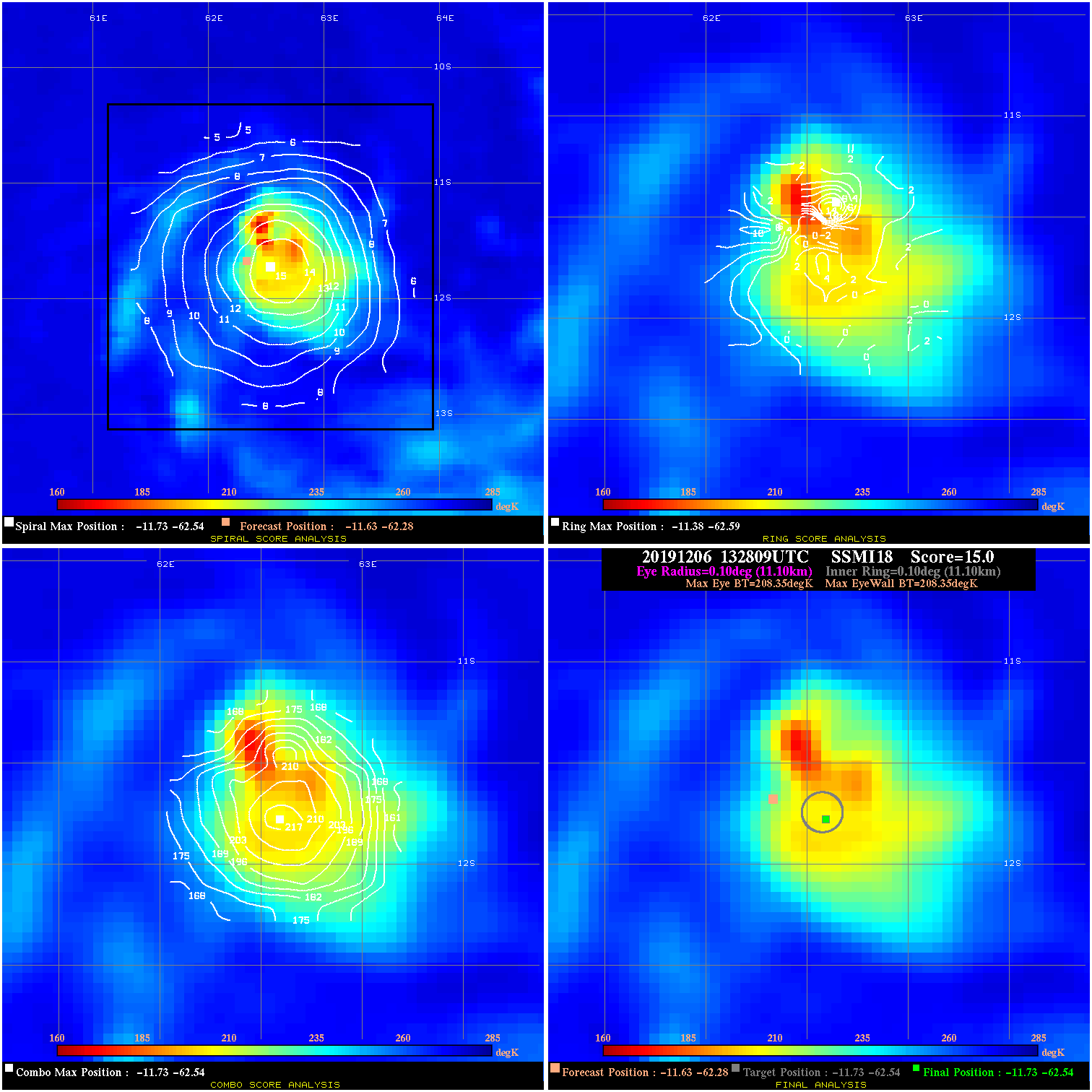

     20191206 132809    N/A      N/A   N/A     N/A     N/A  80.0 SSMI18 -11.6  -62.3  -11.7  -62.5  -11.7  -62.5 Analysis Plot
     20191207 122559 -930.0      N/A   N/A     N/A    0.00  60.0 SSMI16 -12.8  -63.3  -12.8  -63.3  -13.3  -63.9 Analysis Plot
     20191207 131543    N/A      N/A   N/A     N/A     N/A  60.0 SSMI18 -12.9  -63.3  -12.9  -63.3  -13.4  -63.9 Analysis Plot

Legend:

  - Date/Time are determined from PMW imagery at Forecast (initial guess) Lat/Lon position.

  - Positive/Negative Latitude = North/South Hemisphere; Longitude = Western/Eastern Hemisphere.

  - "Ring Diam" value indicates the estimated surface eyewall diameter in km (the MI eyewall edge diameter minus 10 km).

  - "Ring Pct" is the percentage of the "ring" (eyewall inner boundary) that is 1) colder than the "hot spot" (warmest eye pixel) in the eye by 20K, or 2) the percentage that is a) colder than 232K and b) colder than the "hot spot" by 10K, whichever is greater.
  - Values are red if Ring % <= 65, yellow/brown if Ring % <= 85 and green if Ring % > 85.

  - "Tb diff" is the difference between the "hot spot" (warmest eye pixel) and the warmest pixel on the eyewall.

  - Intensity score are listed as negative, and not used, when the JTWC or NHC estimated Vmax is <55 kts in order to rule out weak but highly symmetric TCs.

  - Error messages in intensity scores: -920 is used when the hottest pixel in the eye is <200K, to prevent false positives; -930 means <85% of eyewall has observations/data.
