Tropical Storm 30Y_07
|
Passive Microwave (PMW) Intensity Information Hurricane Intensity Estimation (HIE) Algorithm Version 9.0 |
Overpass Inten Ring Ring Wind Forecast Final Target
Date Time Score Meaning Pct Diam BTdiff Est Sat Lat Lon Lat Lon Lat Lon
20190805 082821 -930.0 N/A N/A N/A 0.00 30.0 SSMI18 17.1 -145.9 17.1 -145.9 18.0 -146.1 Analysis Plot
20190805 153912 -930.0 N/A N/A N/A 0.00 30.0 AMSR2 16.9 -144.3 16.9 -144.3 17.4 -145.0 Analysis Plot
20190805 175336 -930.0 N/A N/A N/A 0.00 30.0 SSMI15 17.0 -143.3 17.0 -143.3 17.9 -143.7 Analysis Plot
20190805 203248 -930.0 N/A N/A N/A 0.00 30.0 SSMI18 17.0 -143.2 17.0 -143.2 17.6 -142.7 Analysis Plot
20190805 214820 -930.0 N/A N/A N/A 0.00 30.0 SSMI17 17.0 -143.1 17.0 -143.1 17.6 -142.8 Analysis Plot
20190806 040941 -930.0 N/A N/A N/A 0.00 30.0 AMSR2 18.4 -143.1 18.4 -143.1 19.0 -142.4 Analysis Plot
20190806 065406 -930.0 N/A N/A N/A 0.00 35.0 SSMI16 18.3 -142.5 18.3 -142.5 19.1 -142.6 Analysis Plot
20190806 162035 -930.0 N/A N/A N/A 0.00 40.0 AMSR2 19.2 -142.2 19.2 -142.2 19.8 -141.3 Analysis Plot

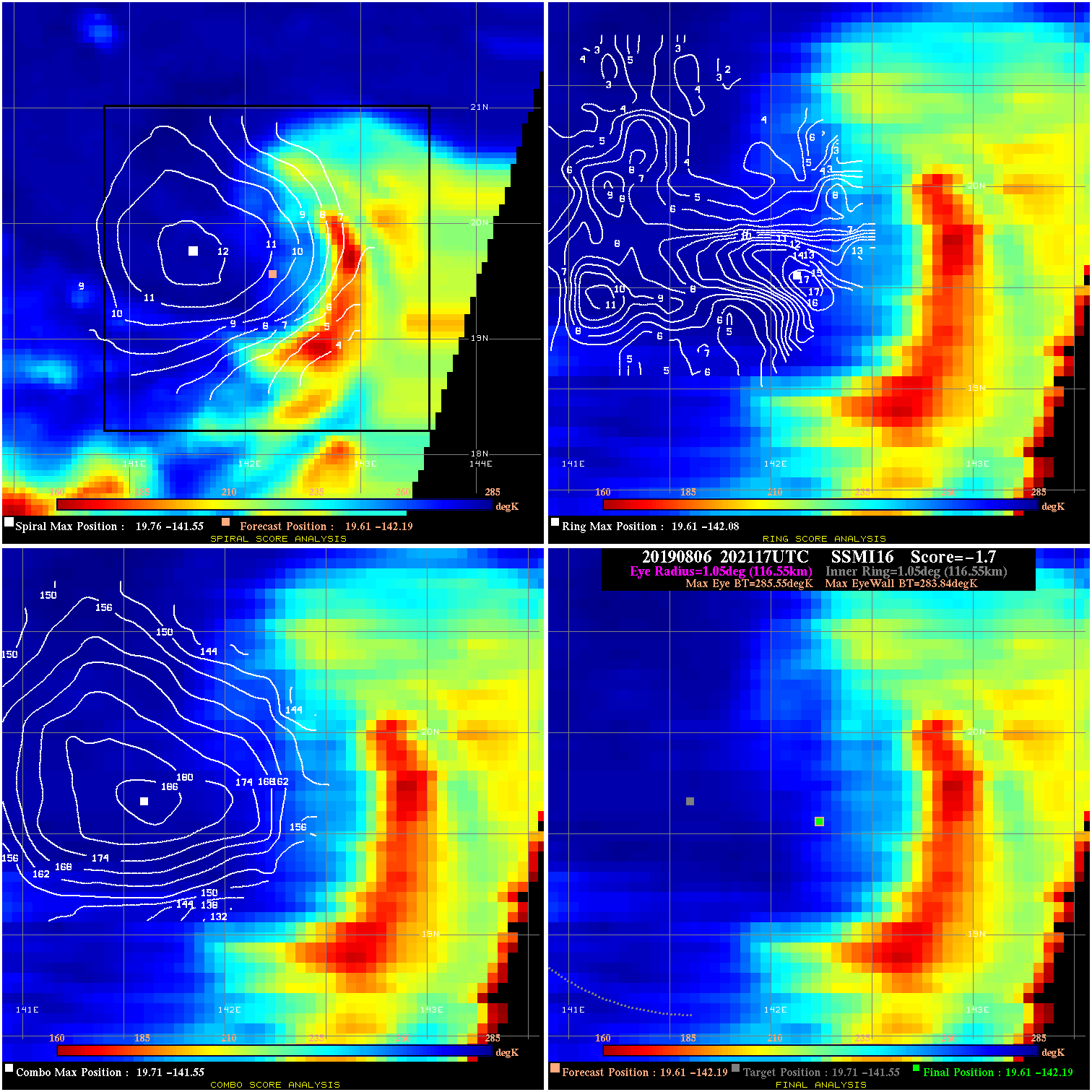

20190806 202117 -1.7 N/A 28.8% 233.31 1.71 40.0 SSMI16 19.6 -142.2 19.6 -142.2 19.7 -141.6 Analysis Plot
20190807 064053 -9.7 N/A N/A 66.66 9.65 50.0 SSMI16 21.0 -141.3 21.0 -141.3 21.0 -141.3 Analysis Plot
20190807 101010 -16.5 N/A 23.3% 66.66 16.52 50.0 SSMI18 21.2 -141.2 21.1 -141.2 21.1 -141.2 Analysis Plot
20190807 200805 15.8 N/A 41.1% 66.66 15.78 65.0 SSMI16 21.6 -140.5 21.9 -140.7 21.9 -140.7 Analysis Plot

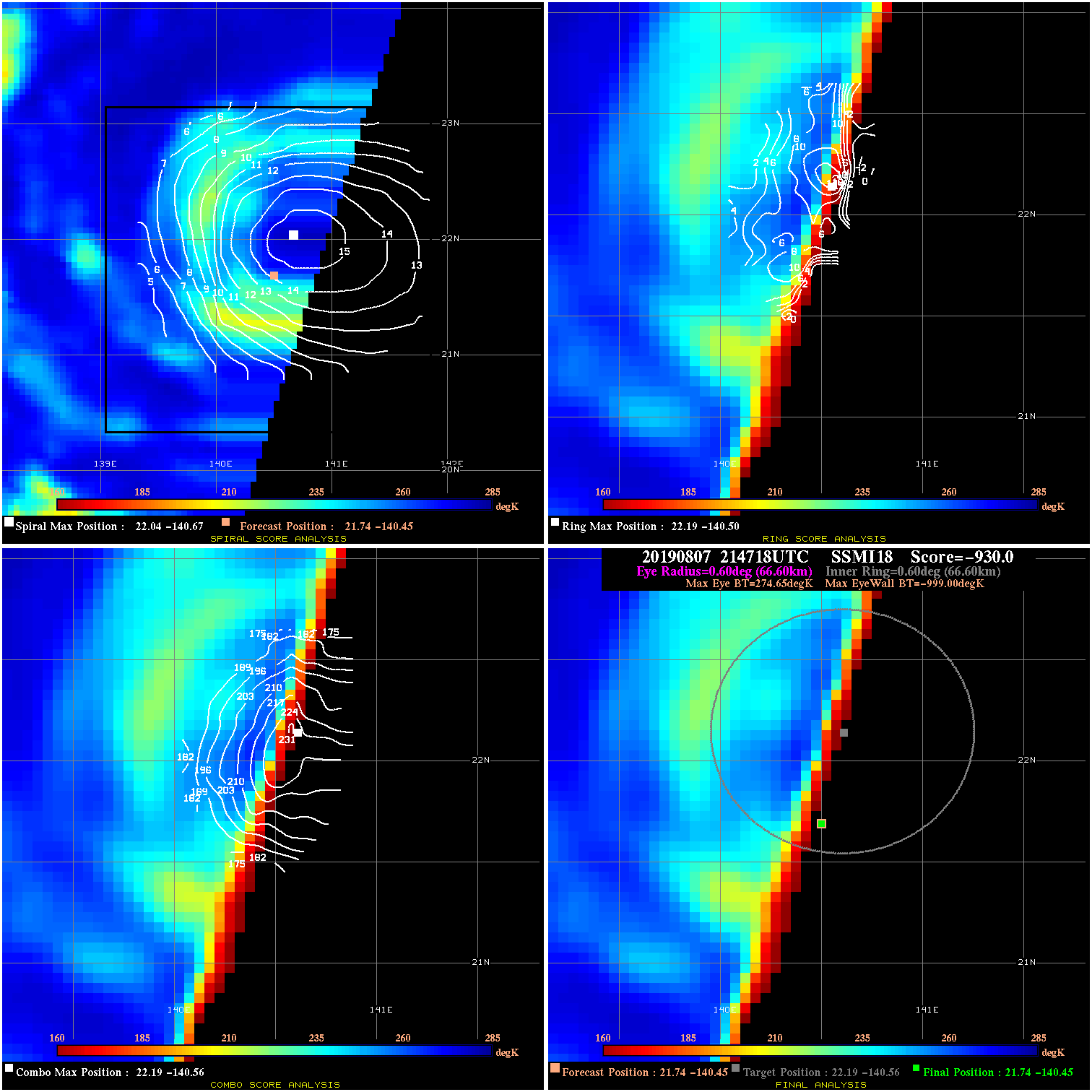

20190807 214718 -930.0 N/A N/A N/A 0.00 65.0 SSMI18 21.7 -140.4 21.7 -140.4 22.2 -140.6 Analysis Plot

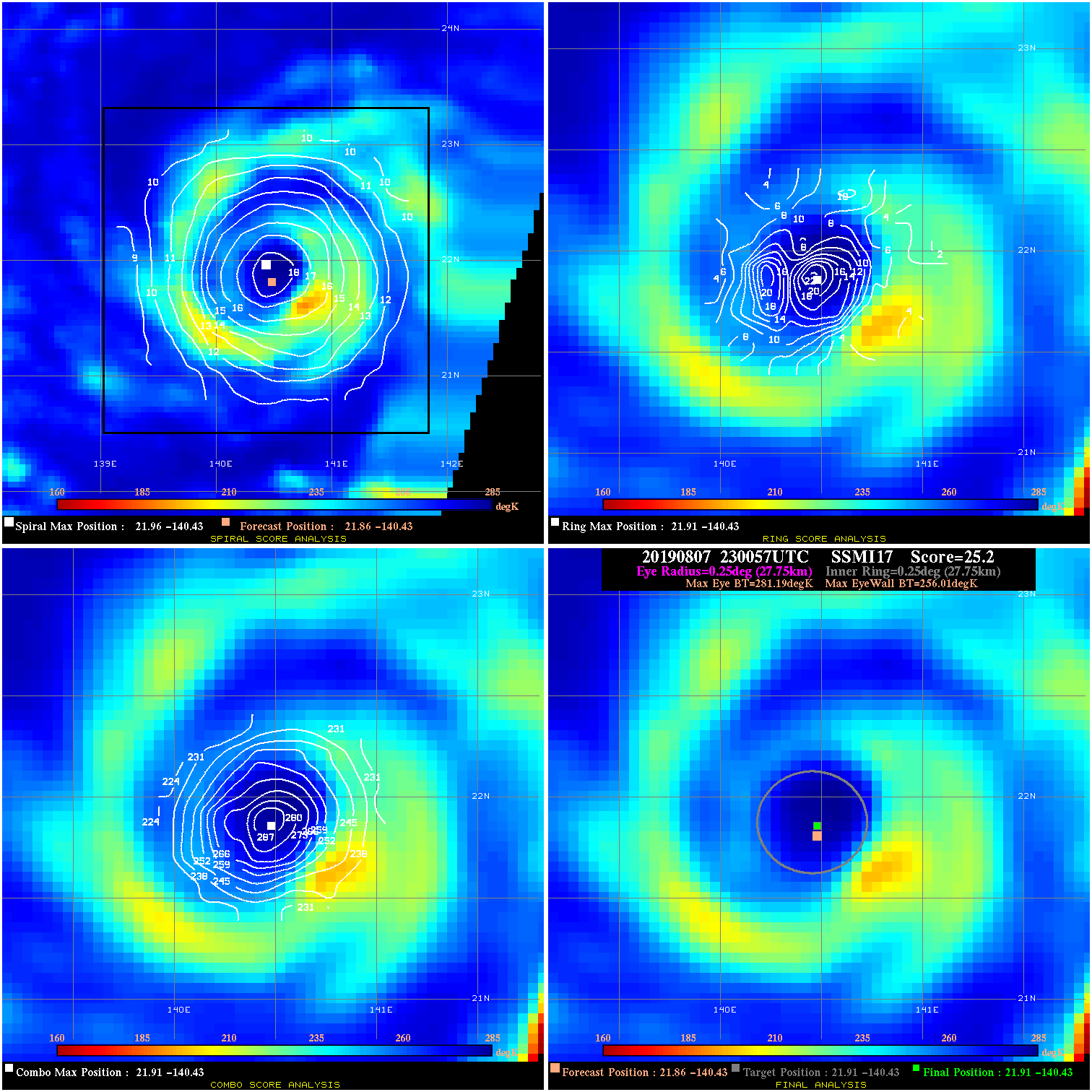

20190807 230057 25.2 >65 kts 39.7% 55.55 25.18 65.0 SSMI17 21.9 -140.4 21.9 -140.4 21.9 -140.4 Analysis Plot
20190808 035801 59.6 >65 kts 100.0% 66.66 44.60 70.0 AMSR2 21.9 -140.3 22.0 -140.5 22.0 -140.5 Analysis Plot
20190808 081930 58.1 >65 kts 100.0% 55.55 43.10 85.0 SSMI16 22.1 -140.4 21.9 -140.6 21.9 -140.6 Analysis Plot

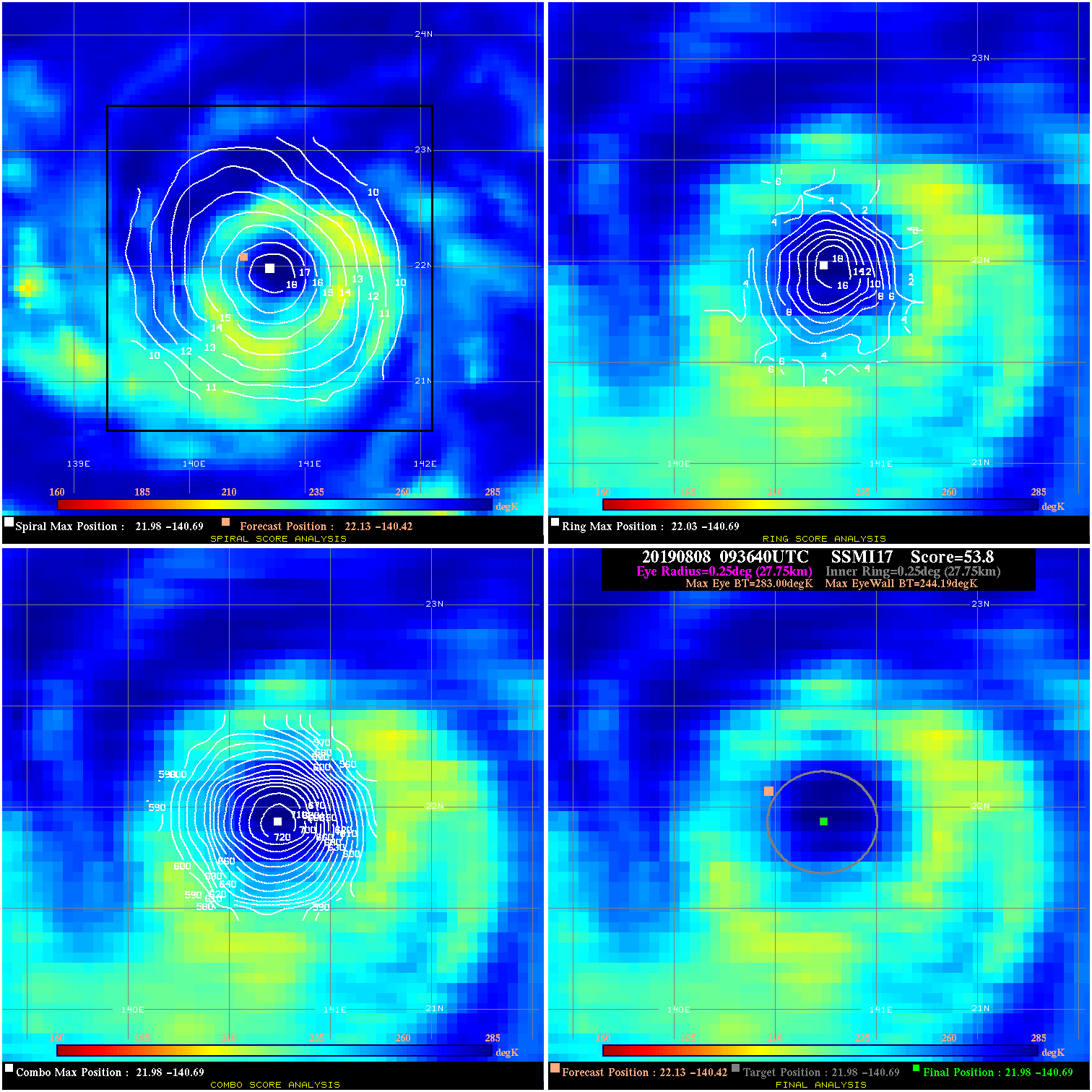

20190808 093640 53.8 >65 kts 100.0% 55.55 38.81 85.0 SSMI17 22.1 -140.4 22.0 -140.7 22.0 -140.7 Analysis Plot
20190808 160752 10.9 N/A 28.8% 88.88 10.90 85.0 AMSR2 22.2 -140.4 22.0 -140.9 22.0 -140.9 Analysis Plot

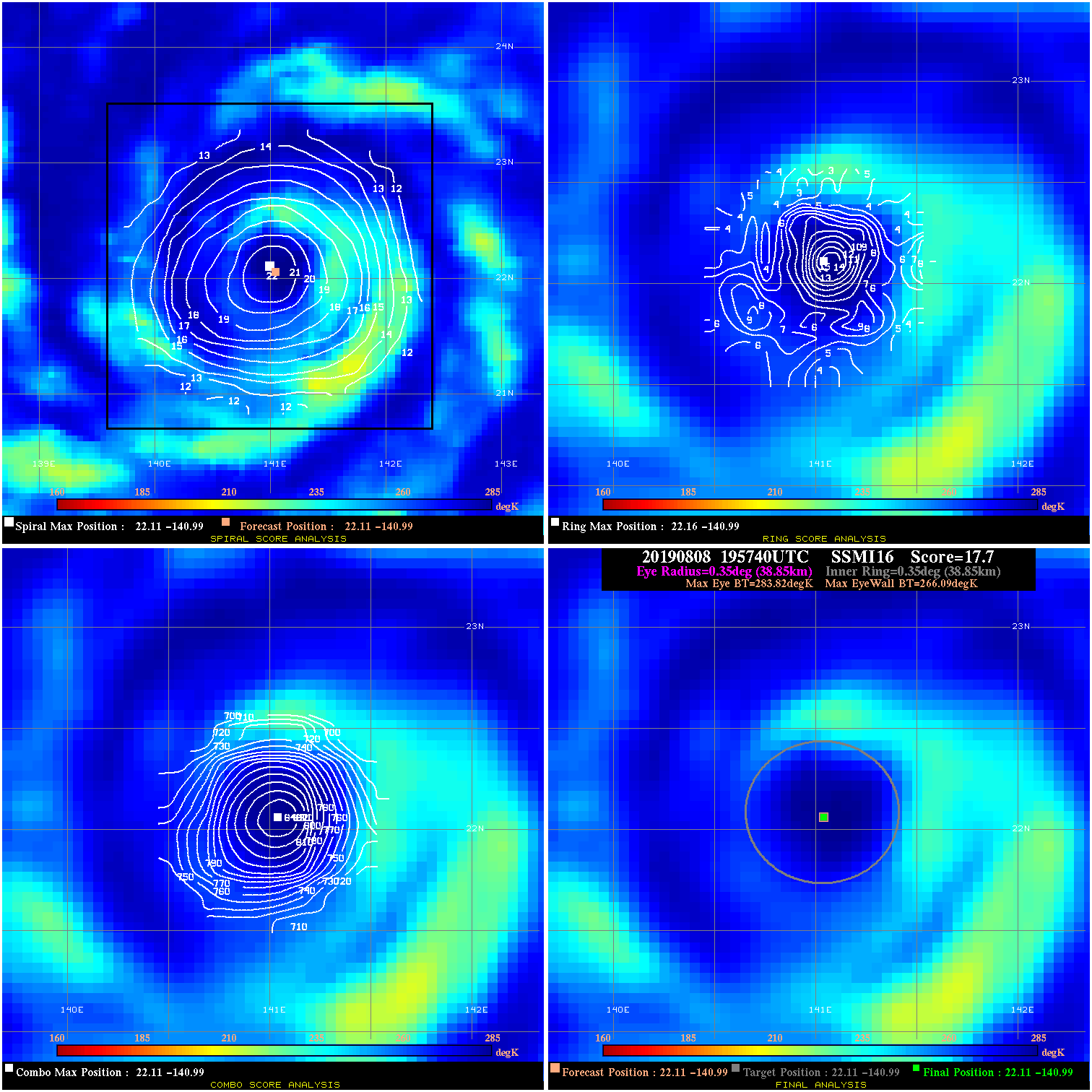

20190808 195740 17.7 N/A 5.5% 77.77 17.73 85.0 SSMI16 22.1 -141.0 22.1 -141.0 22.1 -141.0 Analysis Plot
20190808 213406 18.1 N/A 11.0% 77.77 18.06 85.0 SSMI18 22.1 -141.0 22.0 -141.0 22.0 -141.0 Analysis Plot
20190808 224749 21.1 >65 kts 13.7% 77.77 21.15 85.0 SSMI17 22.2 -141.0 22.1 -141.0 22.1 -141.0 Analysis Plot
20190809 094504 1.0 N/A N/A 133.32 1.02 80.0 SSMI18 22.0 -141.2 21.9 -141.6 21.9 -141.6 Analysis Plot
20190809 194151 -930.0 N/A N/A N/A 0.00 70.0 SSMI16 22.3 -141.2 22.8 -141.6 22.8 -141.6 Analysis Plot
20190809 212209 -930.0 N/A N/A N/A 0.00 70.0 SSMI18 22.3 -141.2 22.7 -141.4 22.7 -141.4 Analysis Plot
20190810 034602 1.8 N/A N/A 155.54 1.76 70.0 AMSR2 22.9 -141.3 22.8 -141.2 22.8 -141.2 Analysis Plot
20190810 093227 5.5 N/A N/A 166.65 5.53 65.0 SSMI18 22.8 -140.6 22.8 -141.0 22.8 -141.0 Analysis Plot
20190810 210946 -930.0 N/A N/A N/A 0.00 65.0 SSMI18 22.7 -140.2 22.7 -140.2 22.8 -140.6 Analysis Plot
20190811 093149 -930.0 N/A N/A N/A 0.00 65.0 SSMI18 23.8 -139.6 23.8 -139.6 23.4 -139.6 Analysis Plot
20190811 100636 -930.0 N/A N/A N/A 0.00 65.0 SSMI17 23.9 -139.5 23.9 -139.5 23.6 -139.9 Analysis Plot
20190811 205720 -930.0 N/A N/A N/A 0.00 60.0 SSMI18 24.0 -137.9 24.0 -137.9 23.9 -138.4 Analysis Plot
20190812 071612 -930.0 N/A N/A N/A 0.00 60.0 SSMI16 25.0 -137.4 25.0 -137.4 25.3 -137.5 Analysis Plot
20190812 204402 -930.0 N/A N/A N/A 0.00 60.0 SSMI16 26.8 -135.9 26.8 -135.9 27.4 -136.2 Analysis Plot
20190813 041800 3.6 N/A 4.5% 288.86 3.56 60.0 AMSR2 27.3 -134.4 27.3 -134.4 27.8 -134.8 Analysis Plot
20190813 070304 -930.0 N/A N/A N/A 0.00 55.0 SSMI16 27.4 -134.4 27.4 -134.4 27.5 -135.0 Analysis Plot
20190813 201756 -930.0 N/A N/A N/A 0.00 55.0 SSMI16 28.2 -133.4 28.2 -133.4 28.7 -133.3 Analysis Plot

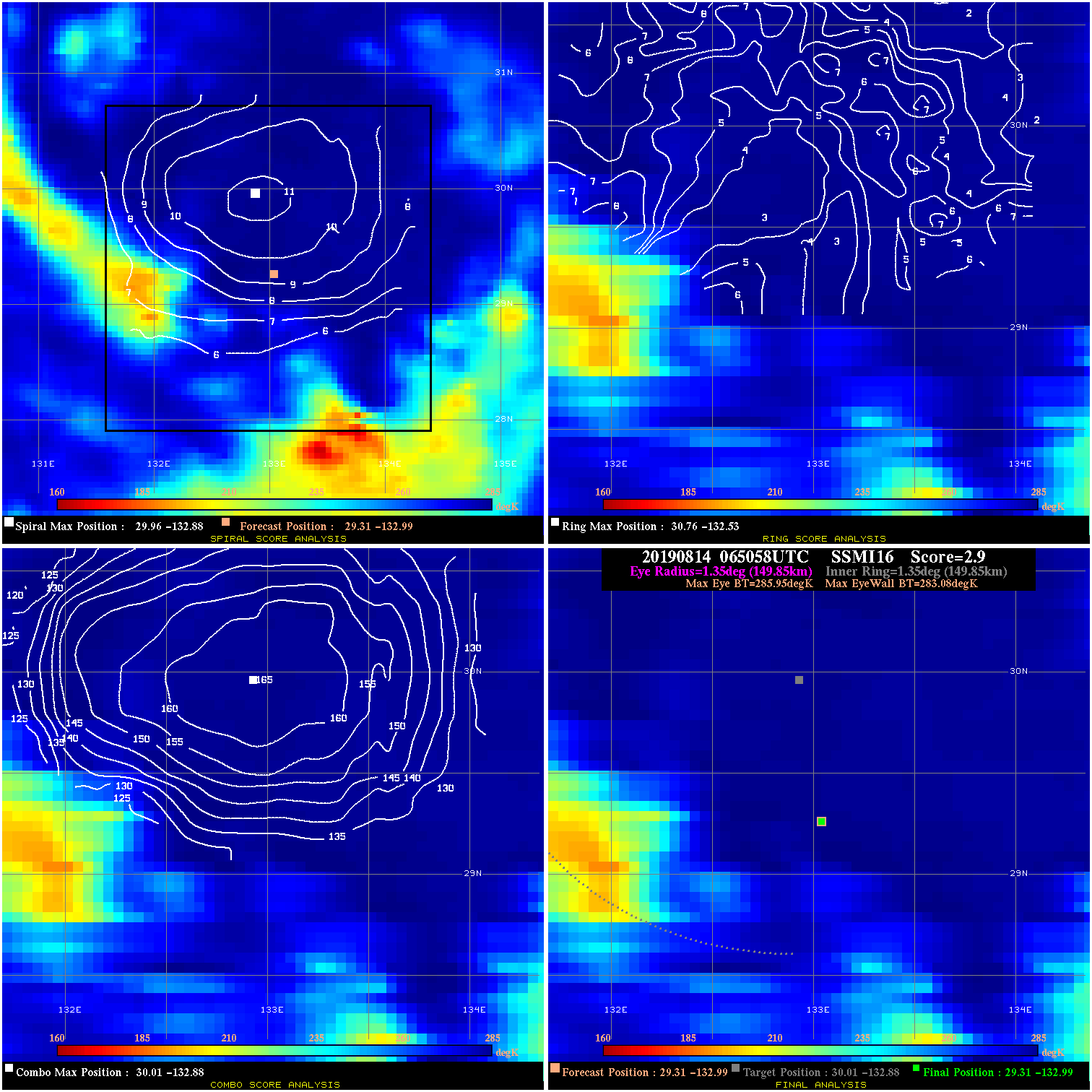

20190814 065058 2.9 N/A 16.7% 299.97 2.87 55.0 SSMI16 29.3 -133.0 29.3 -133.0 30.0 -132.9 Analysis Plot
20190814 220028 1.1 N/A 5.5% 155.54 1.13 55.0 SSMI18 31.9 -132.2 31.9 -132.2 32.0 -131.8 Analysis Plot
20190814 230837 3.8 N/A 5.5% 288.86 3.79 55.0 SSMI17 32.2 -132.2 32.2 -132.2 32.5 -131.9 Analysis Plot
20190815 063750 -2.4 N/A 11.0% 66.66 2.42 50.0 SSMI16 34.2 -132.4 34.2 -132.4 34.3 -133.1 Analysis Plot
20190815 102020 -2.2 N/A N/A 244.42 2.19 50.0 SSMI18 35.4 -132.4 35.4 -132.4 35.2 -132.9 Analysis Plot
20190815 112834 -930.0 N/A N/A N/A 0.00 50.0 SSMI17 35.7 -132.4 35.7 -132.4 35.9 -133.2 Analysis Plot

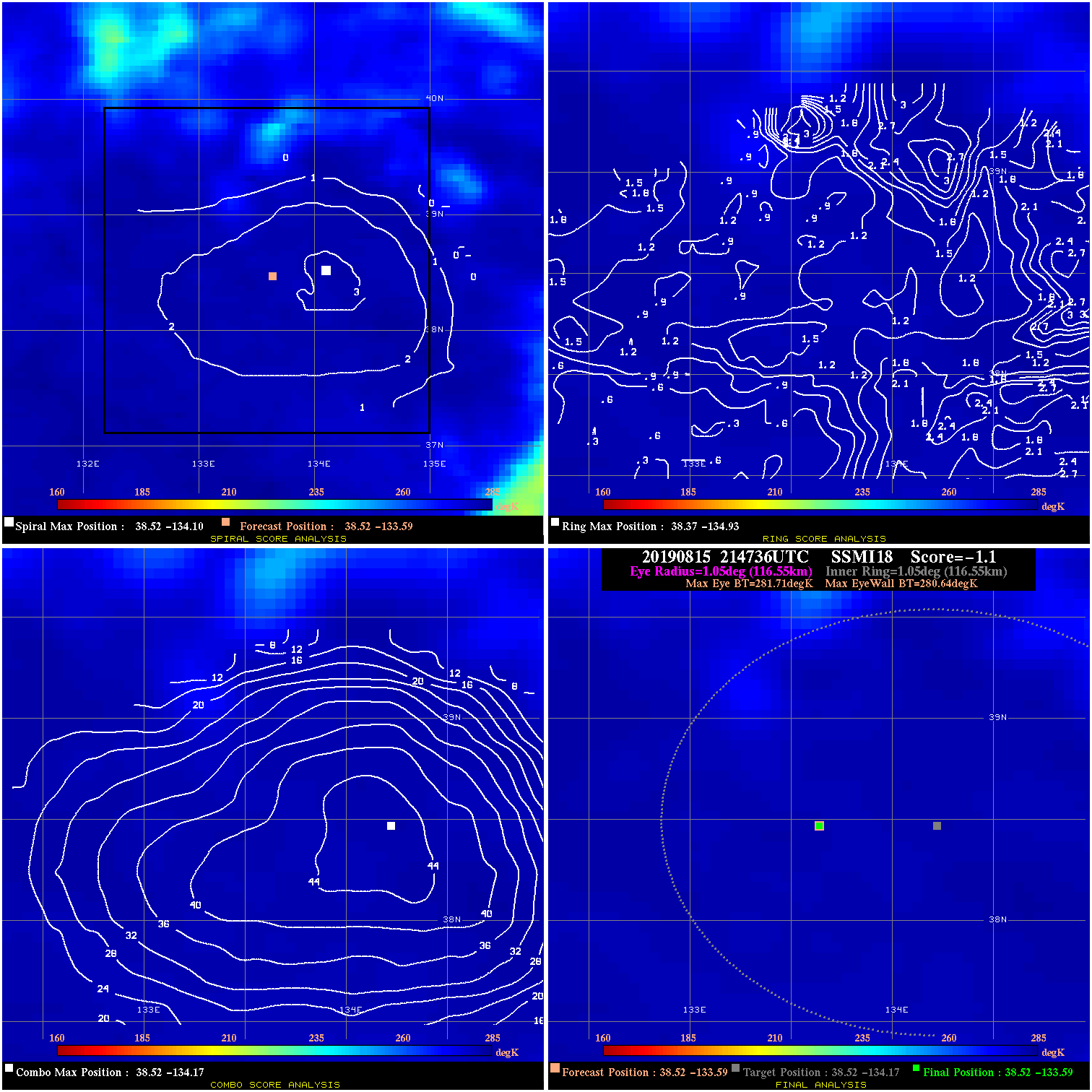

20190815 214736 -1.1 N/A N/A 233.31 1.07 50.0 SSMI18 38.5 -133.6 38.5 -133.6 38.5 -134.2 Analysis Plot
20190815 225512 -0.9 N/A N/A 133.32 .92 50.0 SSMI17 38.8 -133.8 38.8 -133.8 39.2 -134.3 Analysis Plot
20190816 021353 -1.6 N/A 2.7% 144.43 1.59 45.0 GMI 40.3 -134.7 40.3 -134.7 40.7 -135.5 Analysis Plot
20190816 095809 -0.8 N/A N/A 11.11 .84 45.0 SSMI18 41.4 -135.7 41.4 -135.7 41.2 -136.0 Analysis Plot
20190816 110539 -0.9 N/A N/A 288.86 .86 45.0 SSMI17 41.7 -136.0 41.7 -136.0 41.7 -136.0 Analysis Plot
|
|
Legend: - Date/Time are determined from PMW imagery at Forecast (initial guess) Lat/Lon position. - Positive/Negative Latitude = North/South Hemisphere; Longitude = Western/Eastern Hemisphere. - "Ring Diam" value indicates the estimated surface eyewall diameter in km (the MI eyewall edge diameter minus 10 km). - "Ring Pct" is the percentage of the "ring" (eyewall inner boundary) that is 1) colder than the "hot spot" (warmest eye pixel) in the eye by 20K, or 2) the percentage that is a) colder than 232K and b) colder than the "hot spot" by 10K, whichever is greater. - Values are red if Ring % <= 65, yellow/brown if Ring % <= 85 and green if Ring % > 85. - "Tb diff" is the difference between the "hot spot" (warmest eye pixel) and the warmest pixel on the eyewall. - Intensity score are listed as negative, and not used, when the JTWC or NHC estimated Vmax is <55 kts in order to rule out weak but highly symmetric TCs. - Error messages in intensity scores: -920 is used when the hottest pixel in the eye is <200K, to prevent false positives; -930 means <85% of eyewall has observations/data. |
