Tropical Storm 30Y_14

Passive Microwave (PMW) Intensity Information
Hurricane Intensity Estimation (HIE) Algorithm
Version 9.0


         Overpass     Inten           Ring    Ring          Wind           Forecast        Final        Target
       Date    Time   Score  Meaning   Pct    Diam  BTdiff   Est   Sat    Lat    Lon    Lat    Lon    Lat    Lon
     20190918 073937 -930.0      N/A   N/A     N/A    0.00  30.0 SSMI16  21.4 -128.5   21.4 -128.5   22.4 -128.4 Analysis Plot
     20190918 121952 -930.0      N/A   N/A     N/A    0.00  30.0 SSMI17  21.5 -128.4   21.5 -128.4   22.7 -128.2 Analysis Plot
     20190918 174041 -930.0      N/A   N/A     N/A    0.00  30.0  AMSR2  22.1 -129.0   22.1 -129.0   23.1 -128.9 Analysis Plot
     20190918 205820   -2.2      N/A  20.5% 199.98    2.23  30.0 SSMI16  22.1 -128.8   22.1 -128.8   22.8 -129.2 Analysis Plot
     20190918 212510 -930.0      N/A   N/A     N/A    0.00  30.0 SSMI18  22.1 -128.8   22.1 -128.8   22.8 -129.2 Analysis Plot

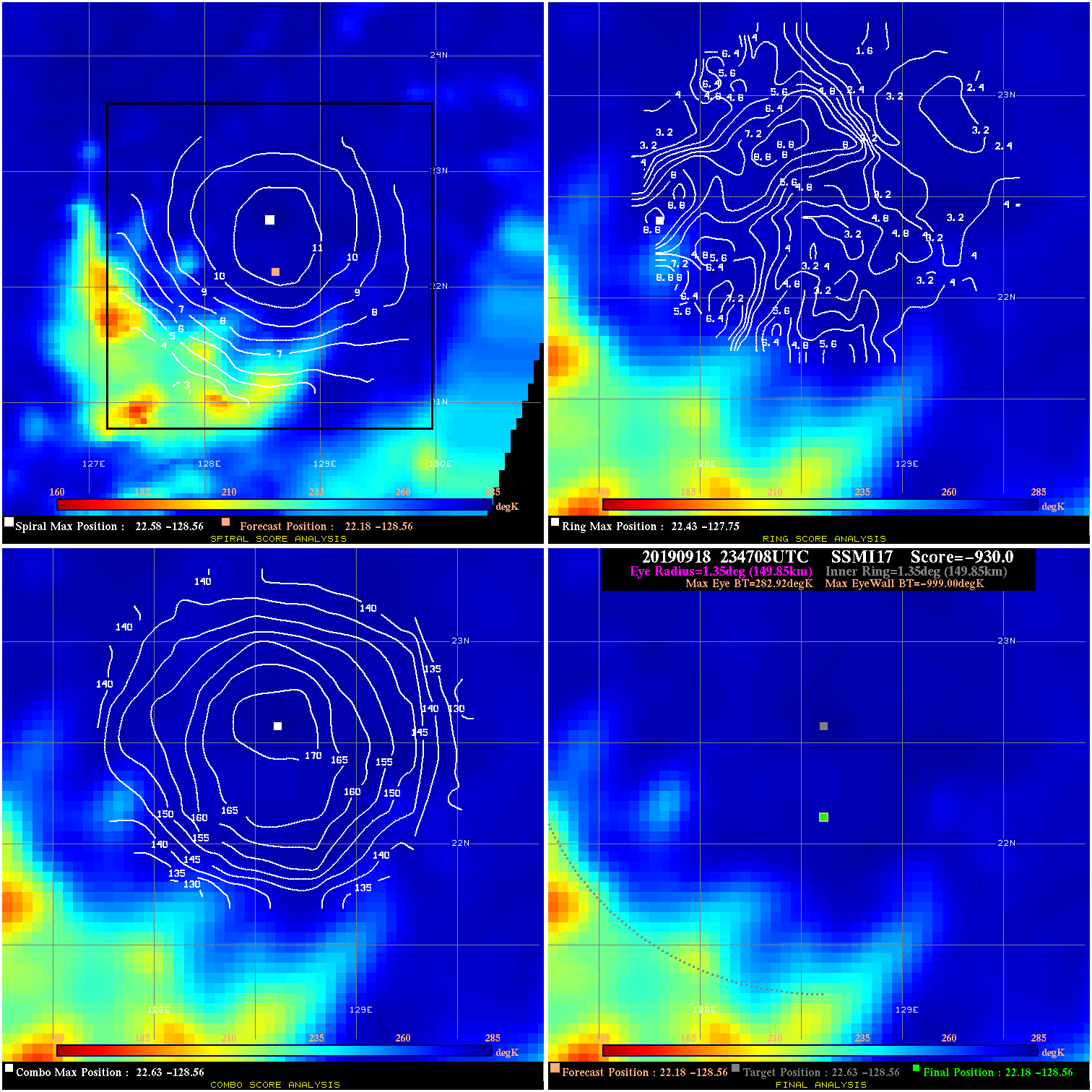

     20190918 234708 -930.0      N/A   N/A     N/A    0.00  30.0 SSMI17  22.2 -128.6   22.2 -128.6   22.6 -128.6 Analysis Plot

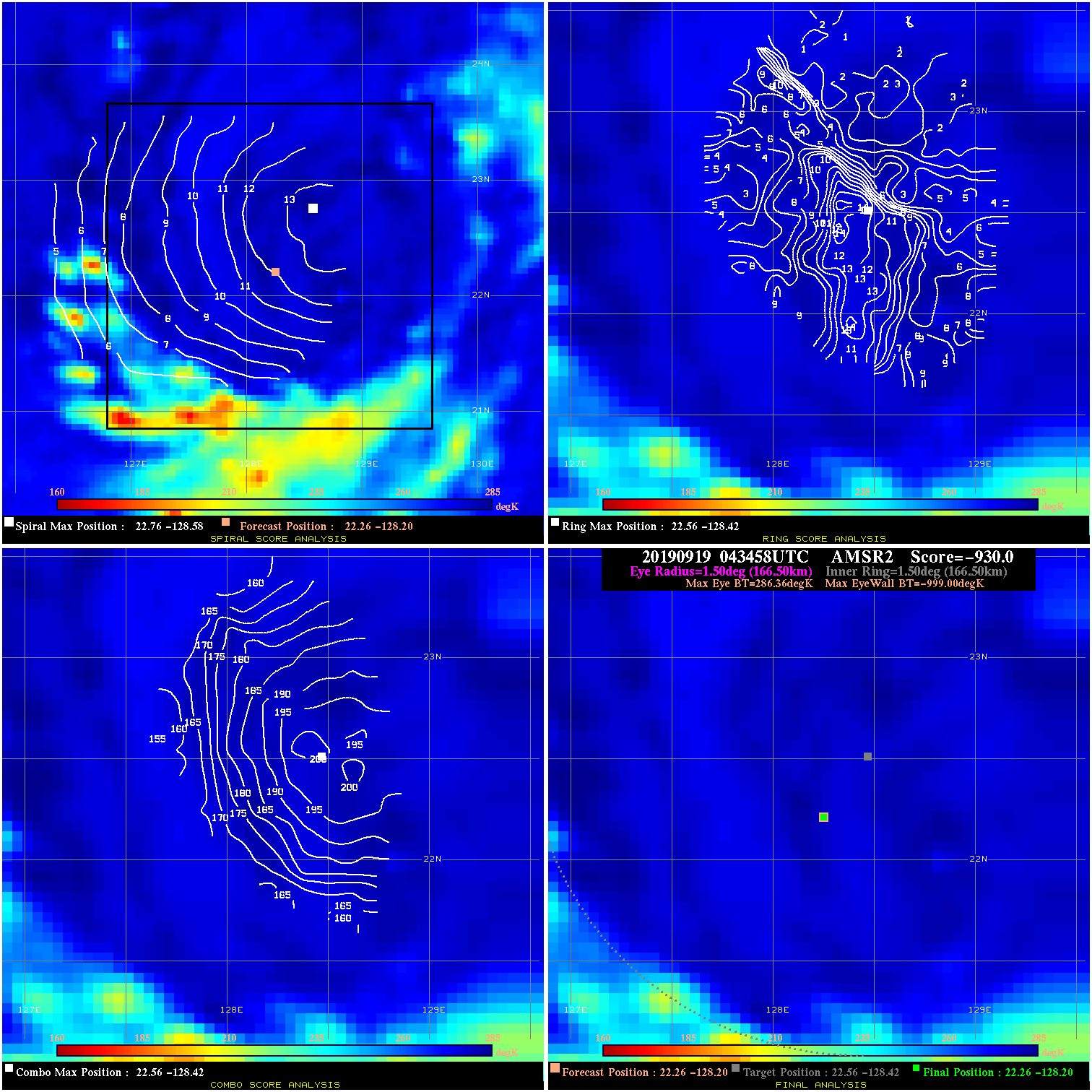

     20190919 043458 -930.0      N/A   N/A     N/A    0.00  30.0  AMSR2  22.3 -128.2   22.3 -128.2   22.6 -128.4 Analysis Plot
     20190919 120631 -930.0      N/A   N/A     N/A    0.00  35.0 SSMI17  22.4 -128.2   22.4 -128.2   22.7 -127.9 Analysis Plot
     20190919 161500   -1.2      N/A   N/A  177.76    1.16  35.0    GMI  23.2 -127.7   23.2 -127.7   23.2 -127.3 Analysis Plot
     20190919 204530   -0.3      N/A   2.7% 266.64     .32  40.0 SSMI16  22.8 -126.7   22.8 -126.7   22.9 -126.8 Analysis Plot

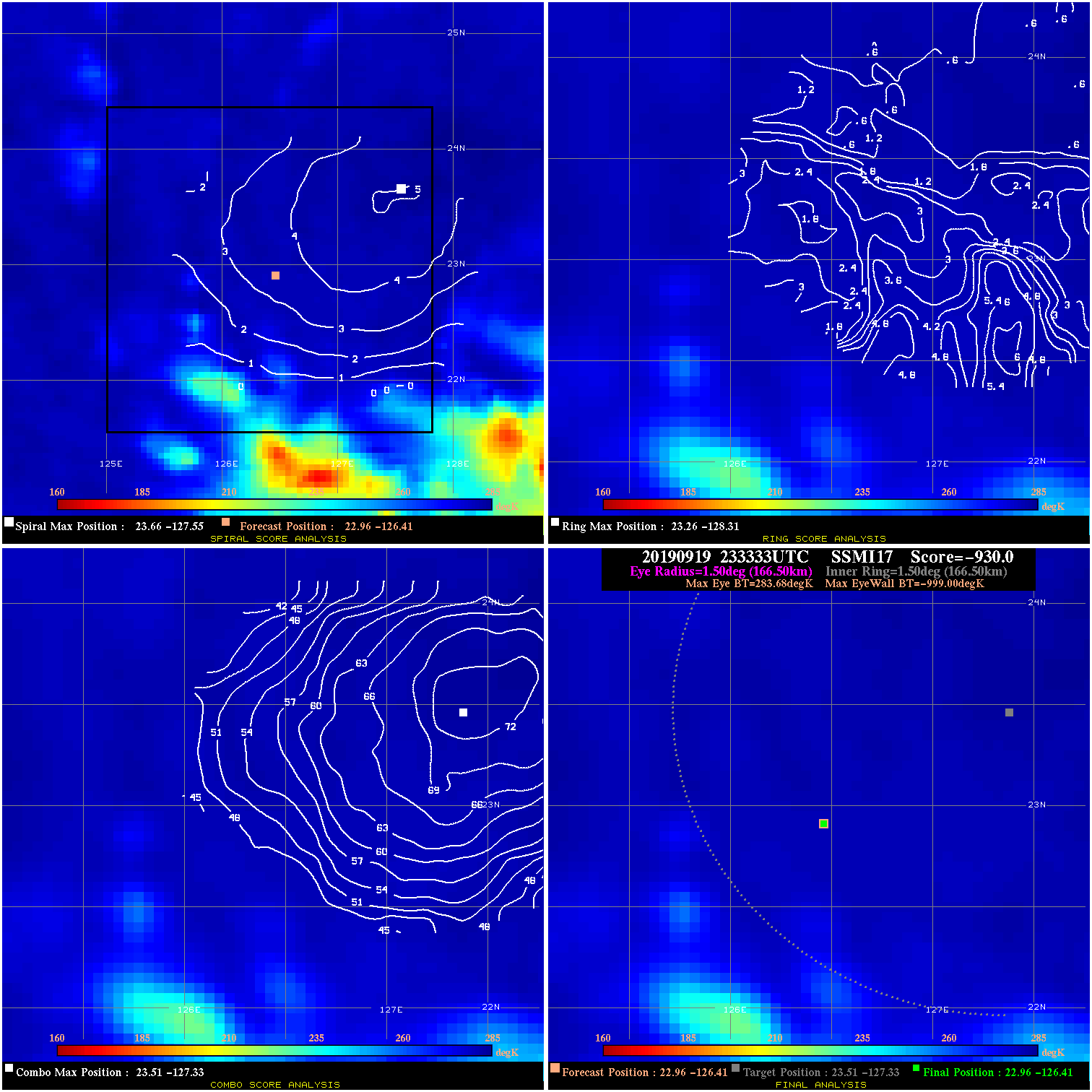

     20190919 233333 -930.0      N/A   N/A     N/A    0.00  40.0 SSMI17  23.0 -126.4   23.0 -126.4   23.5 -127.3 Analysis Plot
     20190920 051842 -930.0      N/A   N/A     N/A    0.00  40.0  AMSR2  23.0 -126.4   23.0 -126.4   23.9 -126.8 Analysis Plot

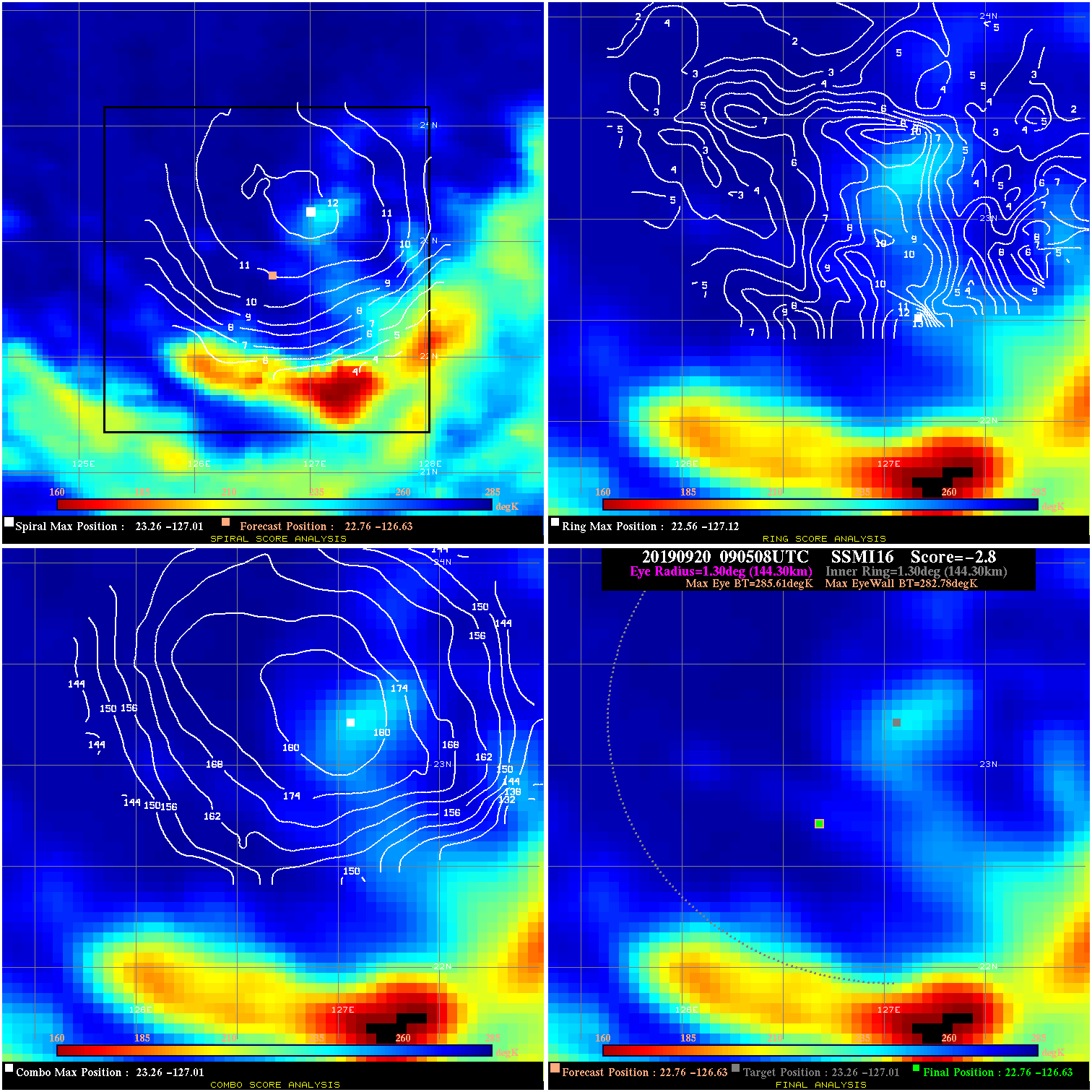

     20190920 090508   -2.8      N/A  41.2% 288.86    2.83  50.0 SSMI16  22.8 -126.6   22.8 -126.6   23.3 -127.0 Analysis Plot

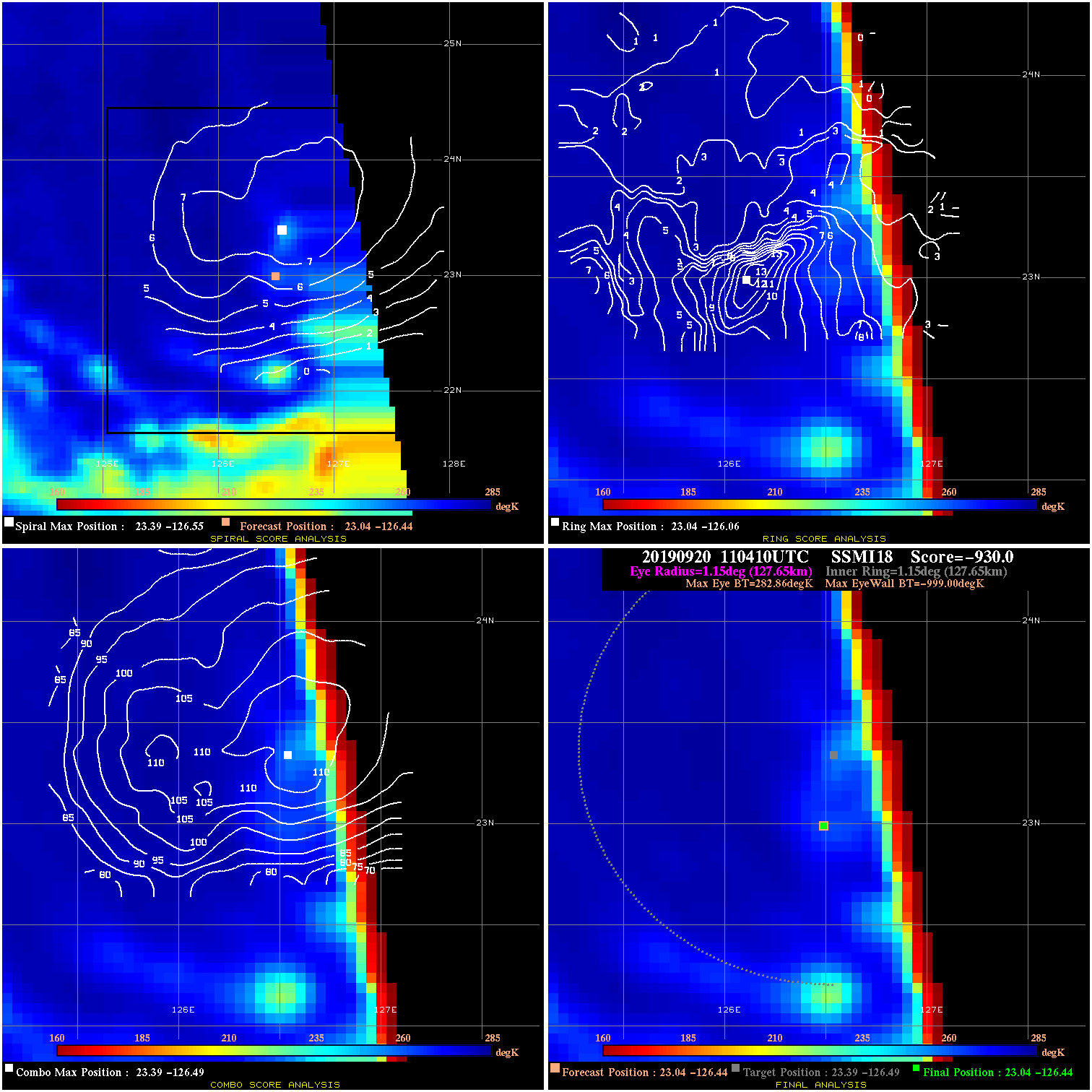

     20190920 110410 -930.0      N/A   N/A     N/A    0.00  50.0 SSMI18  23.0 -126.4   23.0 -126.4   23.4 -126.5 Analysis Plot
     20190920 115307 -930.0      N/A   N/A     N/A    0.00  50.0 SSMI17  23.1 -126.4   23.1 -126.4   23.0 -126.1 Analysis Plot
     20190920 203145    1.5      N/A  13.4% 266.64    1.50  60.0 SSMI16  25.3 -125.9   25.3 -125.9   25.3 -126.4 Analysis Plot
     20190920 224234    0.5      N/A   N/A  177.76     .52  60.0 SSMI18  25.7 -125.6   25.7 -125.6   25.9 -126.0 Analysis Plot
     20190920 232023    0.9      N/A   N/A  177.76     .89  60.0 SSMI17  25.8 -125.5   25.8 -125.5   26.1 -126.1 Analysis Plot
     20190921 084946 -930.0      N/A   N/A     N/A    0.00  65.0 SSMI16  27.6 -125.3   27.6 -125.6   27.6 -125.6 Analysis Plot
     20190921 105134    3.1      N/A   5.5% 122.21    3.09  65.0 SSMI18  28.0 -125.3   27.9 -125.5   27.9 -125.5 Analysis Plot
     20190921 113954    8.9      N/A  11.0% 144.43    8.90  65.0 SSMI17  28.1 -125.3   27.9 -125.8   27.9 -125.8 Analysis Plot
     20190921 160355    2.4      N/A   9.6% 188.87    2.40  65.0    GMI  29.0 -125.2   29.0 -126.1   29.0 -126.1 Analysis Plot
     20190921 222922    1.5      N/A   5.5% 222.20    1.54  65.0 SSMI18  30.4 -126.2   30.4 -126.2   30.4 -126.3 Analysis Plot
     20190921 230631 -930.0      N/A   N/A     N/A    0.00  65.0 SSMI17  30.6 -126.2   30.6 -126.2   30.4 -126.3 Analysis Plot
     20190922 064808    4.6      N/A  24.7% 244.42    4.59  60.0 SSMI16  32.3 -128.0   32.3 -128.0   32.3 -128.4 Analysis Plot
     20190922 103900 -930.0      N/A   N/A     N/A    0.00  60.0 SSMI18  32.8 -128.5   32.8 -128.5   32.6 -129.1 Analysis Plot
     20190922 111703 -930.0      N/A   N/A     N/A    0.00  60.0 SSMI17  33.0 -128.6   33.0 -128.6   33.3 -129.7 Analysis Plot
     20190922 151322 -930.0      N/A   N/A     N/A    0.00  60.0    GMI  34.3 -130.1   34.3 -130.1   33.9 -129.6 Analysis Plot
     20190922 171114    3.1      N/A  76.7%  33.33    3.13  55.0  AMSR2  35.2 -131.2   35.2 -131.2   35.5 -132.1 Analysis Plot

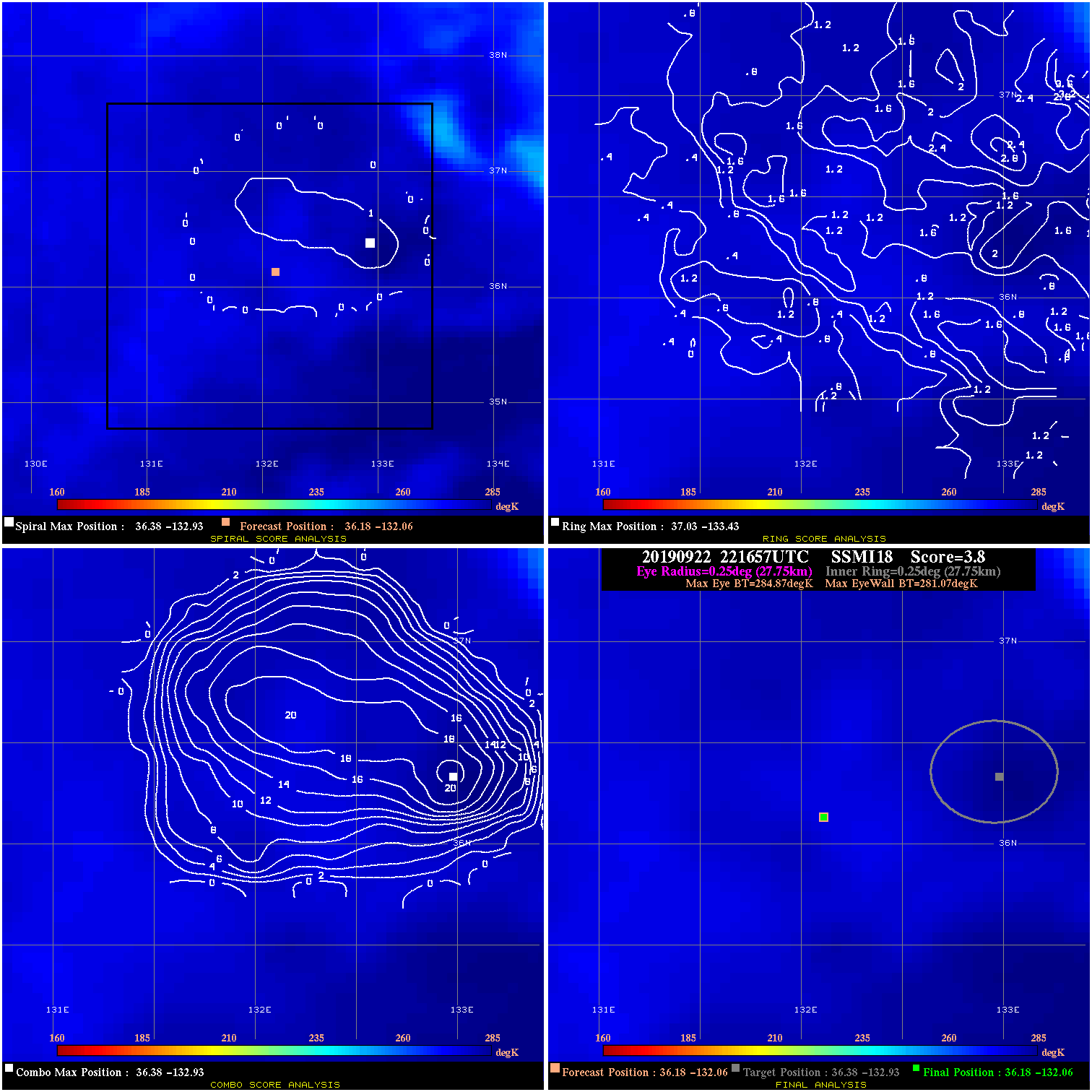

     20190922 221657    3.8      N/A   N/A   55.55    3.80  55.0 SSMI18  36.2 -132.1   36.2 -132.1   36.4 -132.9 Analysis Plot
     20190922 225339    4.0      N/A   N/A   44.44    4.02  55.0 SSMI17  36.4 -132.3   36.4 -132.3   36.5 -133.3 Analysis Plot
     20190923 041422    4.5      N/A   N/A   33.33    4.55  55.0  AMSR2  38.5 -135.3   38.5 -135.3   38.8 -135.6 Analysis Plot


Legend:

  - Date/Time are determined from PMW imagery at Forecast (initial guess) Lat/Lon position.

  - Positive/Negative Latitude = North/South Hemisphere; Longitude = Western/Eastern Hemisphere.

  - "Ring Diam" value indicates the estimated surface eyewall diameter in km (the MI eyewall edge diameter minus 10 km).

  - "Ring Pct" is the percentage of the "ring" (eyewall inner boundary) that is 1) colder than the "hot spot" (warmest eye pixel) in the eye by 20K, or 2) the percentage that is a) colder than 232K and b) colder than the "hot spot" by 10K, whichever is greater.
  - Values are red if Ring % <= 65, yellow/brown if Ring % <= 85 and green if Ring % > 85.

  - "Tb diff" is the difference between the "hot spot" (warmest eye pixel) and the warmest pixel on the eyewall.

  - Intensity score are listed as negative, and not used, when the JTWC or NHC estimated Vmax is <55 kts in order to rule out weak but highly symmetric TCs.

  - Error messages in intensity scores: -920 is used when the hottest pixel in the eye is <200K, to prevent false positives; -930 means <85% of eyewall has observations/data.
