Tropical Storm 07E


UW-CIMSS Automated Satellite-Based
Advanced Dvorak Technique (ADT)
Version 8.2.1
Tropical Cyclone Intensity Estimation Algorithm


Current Intensity Analysis



                     UW - CIMSS
              ADVANCED DVORAK TECHNIQUE
                  ADT-Version 8.2.1
         Tropical Cyclone Intensity Algorithm

             ----- Current Analysis -----
     Date :  25 JUL 2017    Time :   233000 UTC
      Lat :   16:25:05 N     Lon :  138:09:49 W


                CI# /Pressure/ Vmax
                2.1 /1003.3mb/ 31.0kt


             Final T#  Adj T#  Raw T#
                2.1     2.3     2.3

 Center Temp : +10.5C    Cloud Region Temp : -28.0C

 Scene Type : CURVED BAND with 0.46 ARC in DK GRAY
              Maximum CURVED BAND with 0.56 ARC in DK GRAY
               at Lat:  16:36:36 N  Lon: 138:21:36 W

 Positioning Method : FORECAST INTERPOLATION

 Ocean Basin : EAST PACIFIC
 Dvorak CI > MSLP Conversion Used : CKZ Method

 Tno/CI Rules : Constraint Limits : NO LIMIT
                   Weakening Flag : OFF
           Rapid Dissipation Flag : OFF

 C/K/Z MSLP Estimate Inputs :
  - Average 34 knot radii : N/A
  - Environmental MSLP    : 1010mb

 Satellite Name :  GOES15
 Satellite Viewing Angle : 19.6 degrees

****************************************************

History File Listing
PMW Information

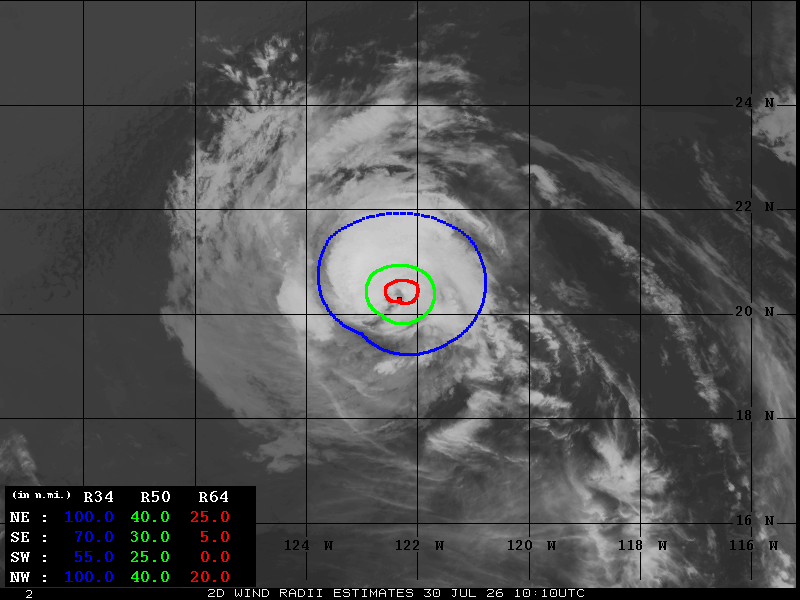

Satellite Imagery
