Tropical Storm 17W


UW-CIMSS Automated Satellite-Based
Advanced Dvorak Technique (ADT)
Version 8.2.1
Tropical Cyclone Intensity Estimation Algorithm


Current Intensity Analysis



                     UW - CIMSS
              ADVANCED DVORAK TECHNIQUE
                  ADT-Version 8.2.1
         Tropical Cyclone Intensity Algorithm

             ----- Current Analysis -----
     Date :  25 AUG 2015    Time : 231500 UTC
      Lat :   39:57:01 N     Lon :  163:16:16 E


                CI# /Pressure/ Vmax
                1.7 / 982.9mb/ 27.0kt


             Final T#  Adj T#  Raw T#
                1.7     1.5     1.5

 Center Temp : -10.1C    Cloud Region Temp : -14.3C

 Scene Type : SHEAR (>1.25^ TO DG)

 Positioning Method : FORECAST INTERPOLATION

 Ocean Basin : WEST PACIFIC
 Dvorak CI > MSLP Conversion Used : CKZ Method

 Tno/CI Rules : Constraint Limits : NO LIMIT
                   Weakening Flag : OFF
           Rapid Dissipation Flag : OFF

 C/K/Z MSLP Estimate Inputs :

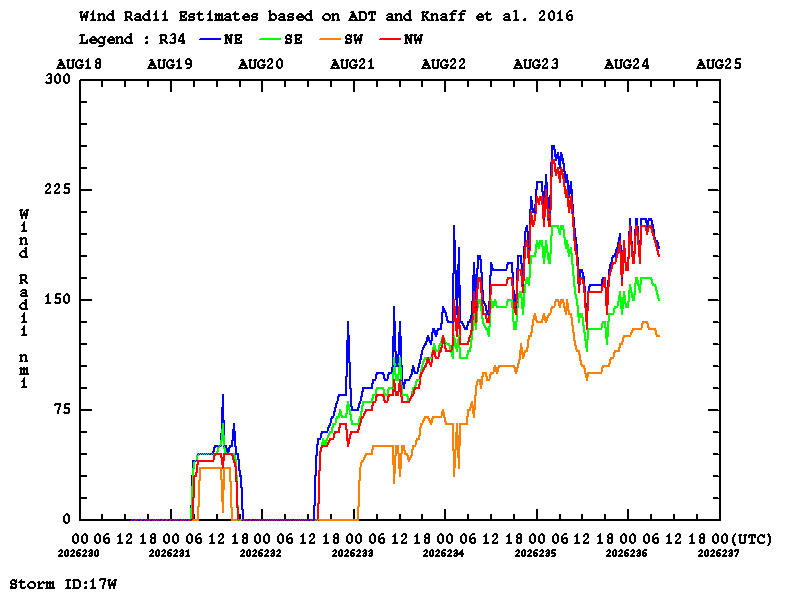

  - Average 34 knot radii :  171km
  - Environmental MSLP    : 1004mb

 Satellite Name :  MTSAT2
 Satellite Viewing Angle : 49.9 degrees
