Geo IR 85-92GHz
Date/Time_(UTC) Source Sensor Vmax(kts) ARCHER Lat Lon Geo-ref Lat Lon 50% cert. rad. 95% cert. rad. Eye diam (deg) % cert. of eye

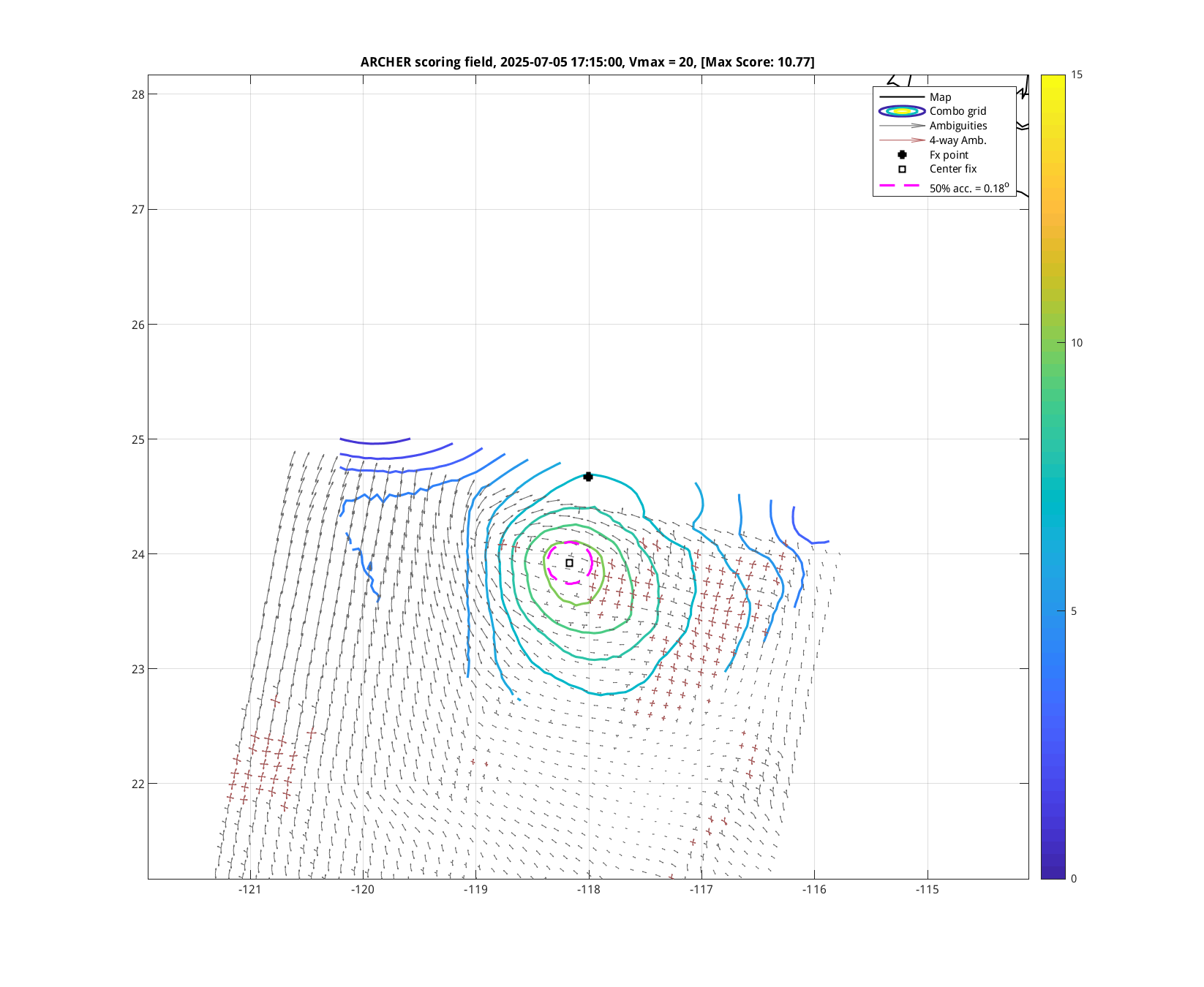

20250705 17:15:00 * Metop-C ASCAT 20.0 23.92 -118.17 23.95 -118.27 0.18 0.51 *** ***

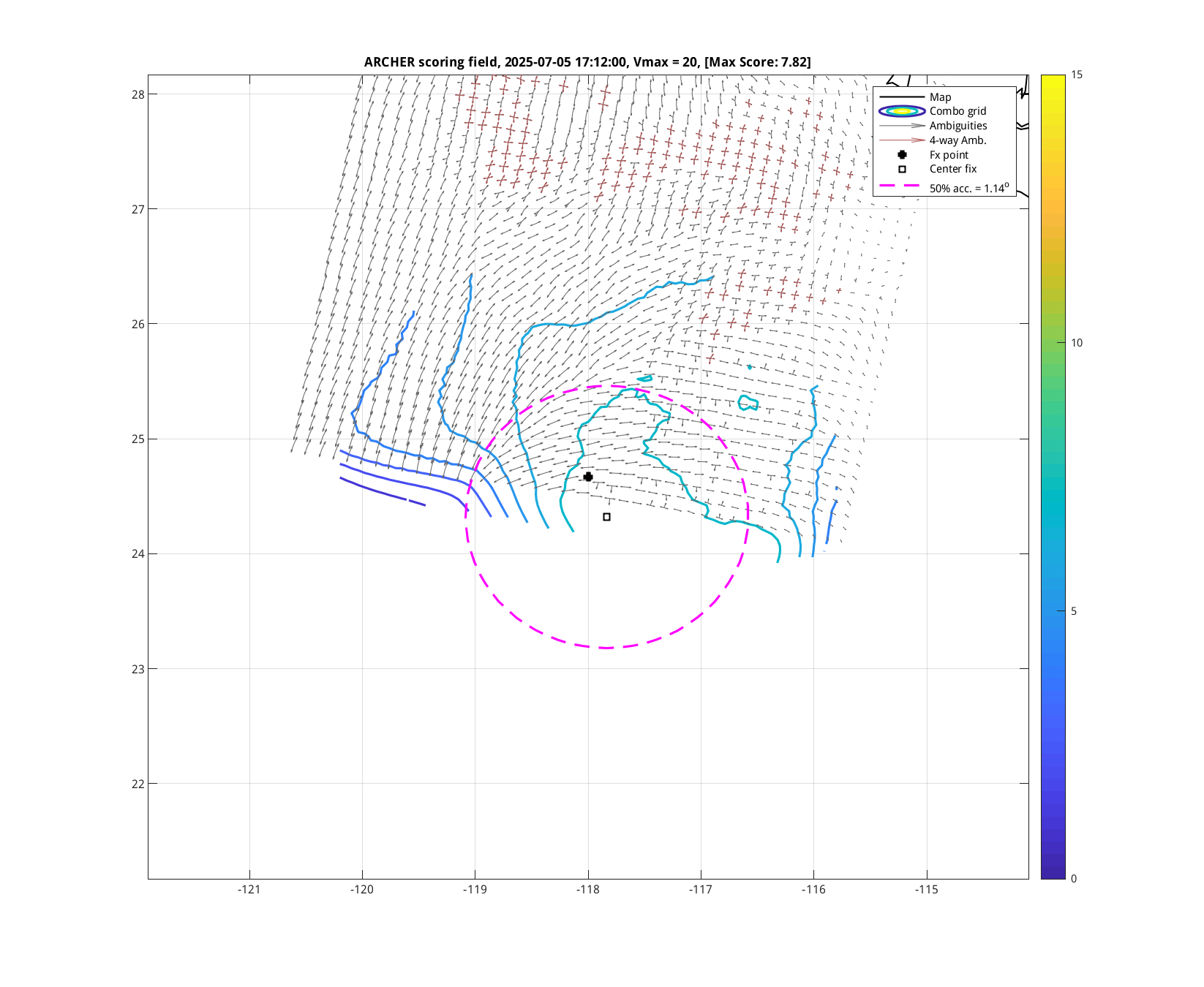

20250705 17:12:00 Metop-C ASCAT 20.0 24.32 -117.83 24.35 -117.93 1.14 3.22 *** ***
20250705 15:48:26 GMI 85-92GHz 20.0 24.96 -118.76 24.93 -118.66 0.31 0.87 0.40 3.9
20250705 15:48:26 GMI 37GHz 20.0 *** *** *** *** *** *** 3.00 ***
20250705 09:44:29 AMSR2 85-92GHz 20.0 24.46 -118.11 24.42 -118.02 0.44 1.25 0.60 1.7
20250705 09:44:29 AMSR2 37GHz 20.0 *** *** *** *** *** *** 2.30 ***

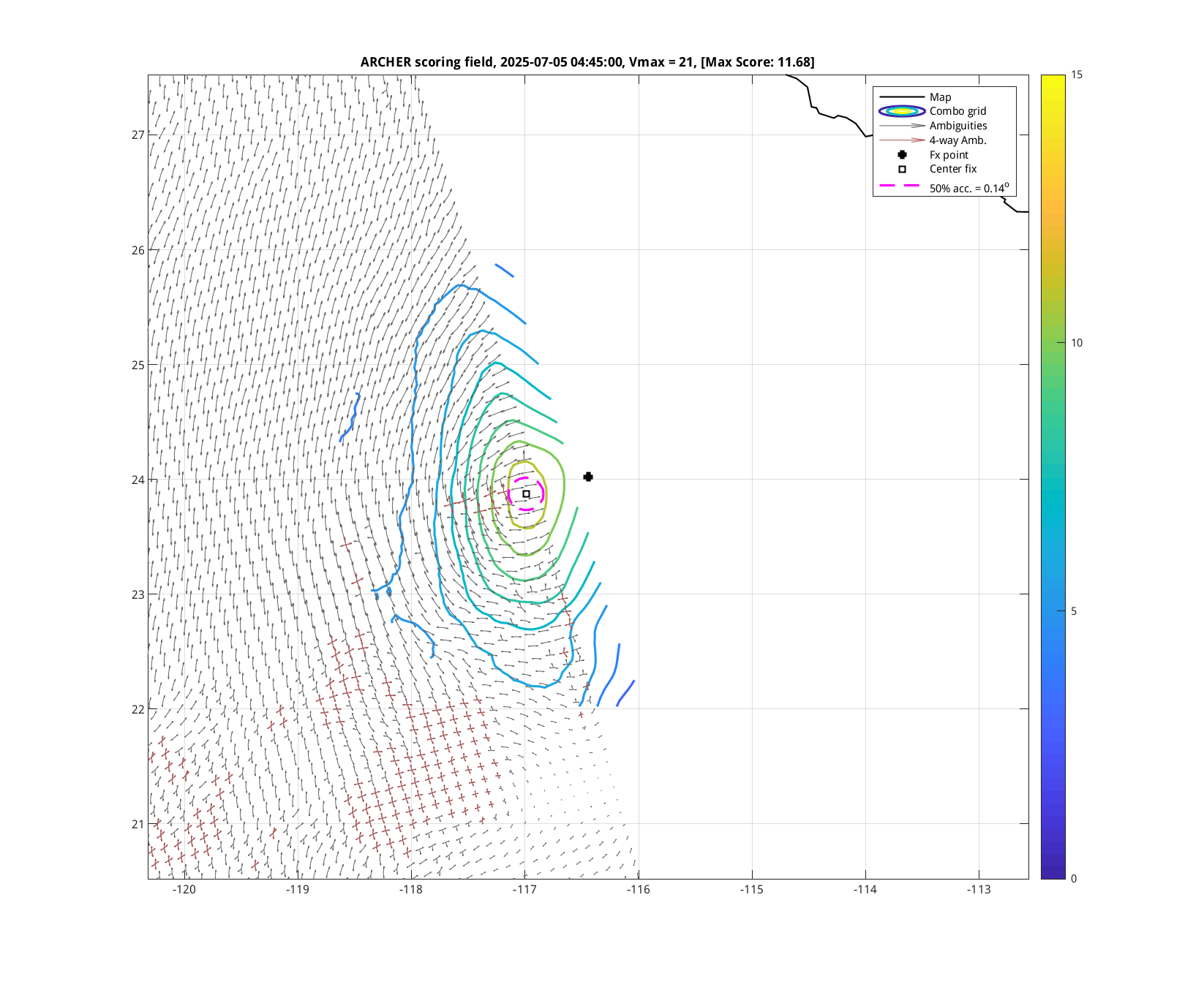

20250705 04:45:00 * Metop-C ASCAT 20.5 23.87 -116.99 23.95 -117.15 0.14 0.40 *** ***
20250705 03:54:00 Metop-A ASCAT 20.9 *** *** *** *** *** *** *** ***
20250705 02:23:26 GMI 85-92GHz 21.5 24.21 -117.14 24.25 -117.21 0.31 0.86 3.00 0.0
20250705 02:23:26 GMI 37GHz 21.5 *** *** *** *** *** *** 1.60 ***
20250704 23:15:44 * SSMIS-18 85-92GHz 22.8 23.93 -116.91 23.98 -117.00 0.24 0.67 0.70 4.3
20250704 17:33:00 Metop-C ASCAT 25.2 *** *** *** *** *** *** *** ***
20250704 16:45:00 Metop-A ASCAT 25.5 *** *** *** *** *** *** *** ***
20250704 12:01:34 * SSMIS-18 85-92GHz 27.5 22.77 -115.38 22.77 -115.38 0.35 1.00 0.60 1.9
20250704 09:02:04 * AMSR2 85-92GHz 28.7 22.69 -114.55 22.69 -114.54 0.30 0.85 1.20 2.7
20250704 09:02:04 AMSR2 37GHz 28.7 22.49 -114.00 22.49 -114.00 0.38 1.06 0.70 ***
20250703 20:52:18 AMSR2 85-92GHz 35.0 21.44 -112.60 21.45 -112.61 0.40 1.12 0.60 4.6

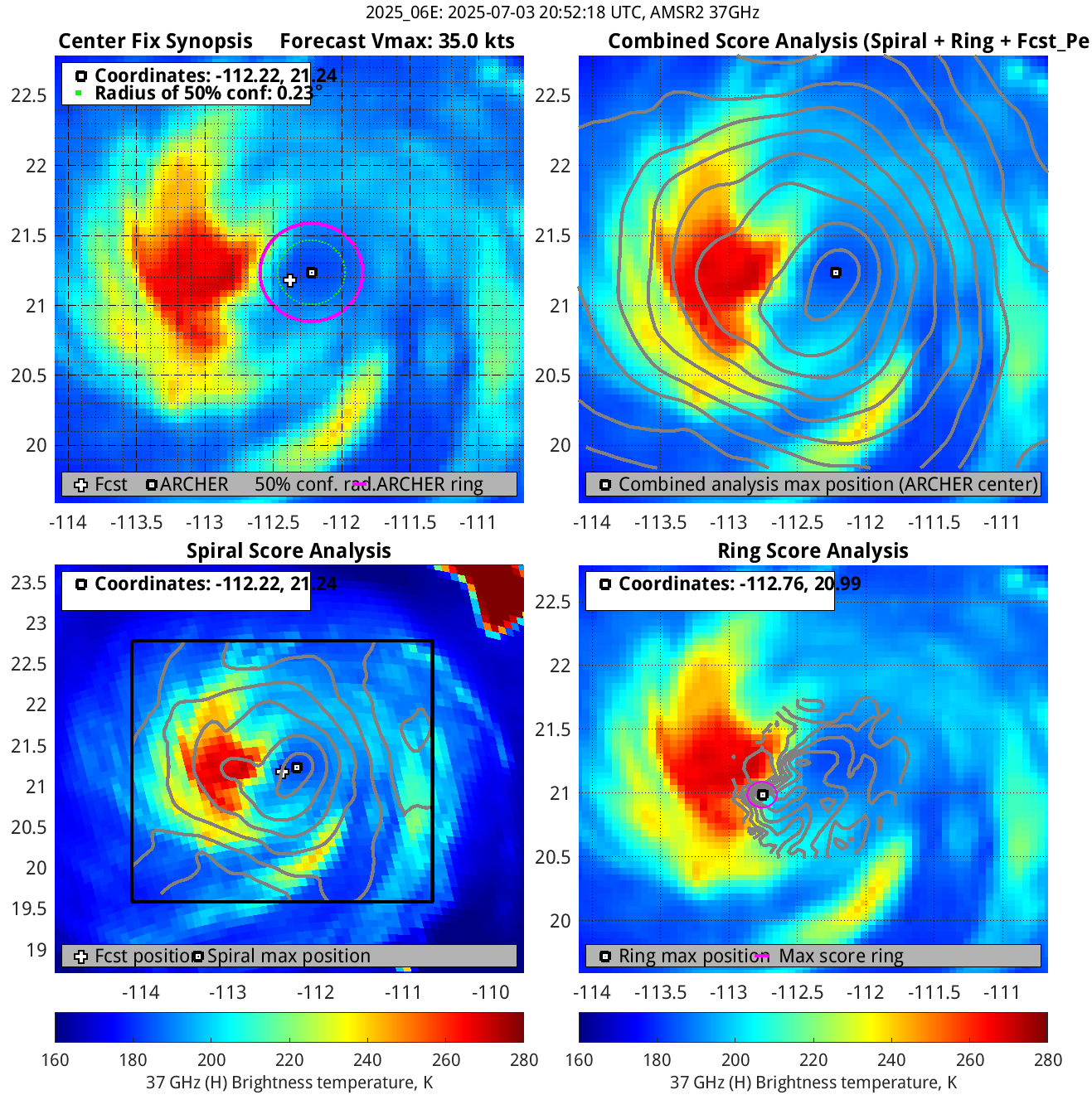

20250703 20:52:18 * AMSR2 37GHz 35.0 21.24 -112.22 21.25 -112.24 0.23 0.65 0.70 ***
20250703 15:38:25 GMI 85-92GHz 39.6 20.96 -111.84 20.89 -111.77 0.33 0.94 0.50 3.6
20250703 15:38:25 * GMI 37GHz 39.6 20.66 -111.46 20.59 -111.39 0.24 0.67 0.80 ***
20250703 13:53:59 SSMIS-16 85-92GHz 41.8 20.74 -111.39 20.85 -111.52 0.49 1.40 0.40 0.9
20250703 13:47:43 * SSMIS-17 85-92GHz 42.0 20.68 -111.22 20.80 -111.36 0.31 0.87 1.10 2.4
20250703 04:33:00 * Metop-A ASCAT 58.6 19.82 -110.38 19.90 -110.54 0.19 0.54 *** ***
20250703 02:13:26 GMI 85-92GHz 64.4 19.76 -110.10 19.79 -110.18 0.20 0.55 0.70 9.5
20250703 02:13:26 * GMI 37GHz 64.4 19.71 -110.05 19.74 -110.12 0.15 0.41 0.30 ***
20250703 01:21:34 SSMIS-16 85-92GHz 66.6 19.62 -109.86 19.55 -109.74 0.23 0.66 0.50 6.3
20250703 01:15:35 SSMIS-17 85-92GHz 66.9 19.61 -110.01 19.55 -109.90 0.19 0.55 0.40 6.3
20250702 14:07:51 SSMIS-16 85-92GHz 91.4 19.62 -109.43 19.70 -109.53 0.16 0.45 1.70 5.7
20250702 14:02:30 * SSMIS-17 85-92GHz 91.6 19.52 -109.26 19.60 -109.37 0.14 0.41 1.50 18.7

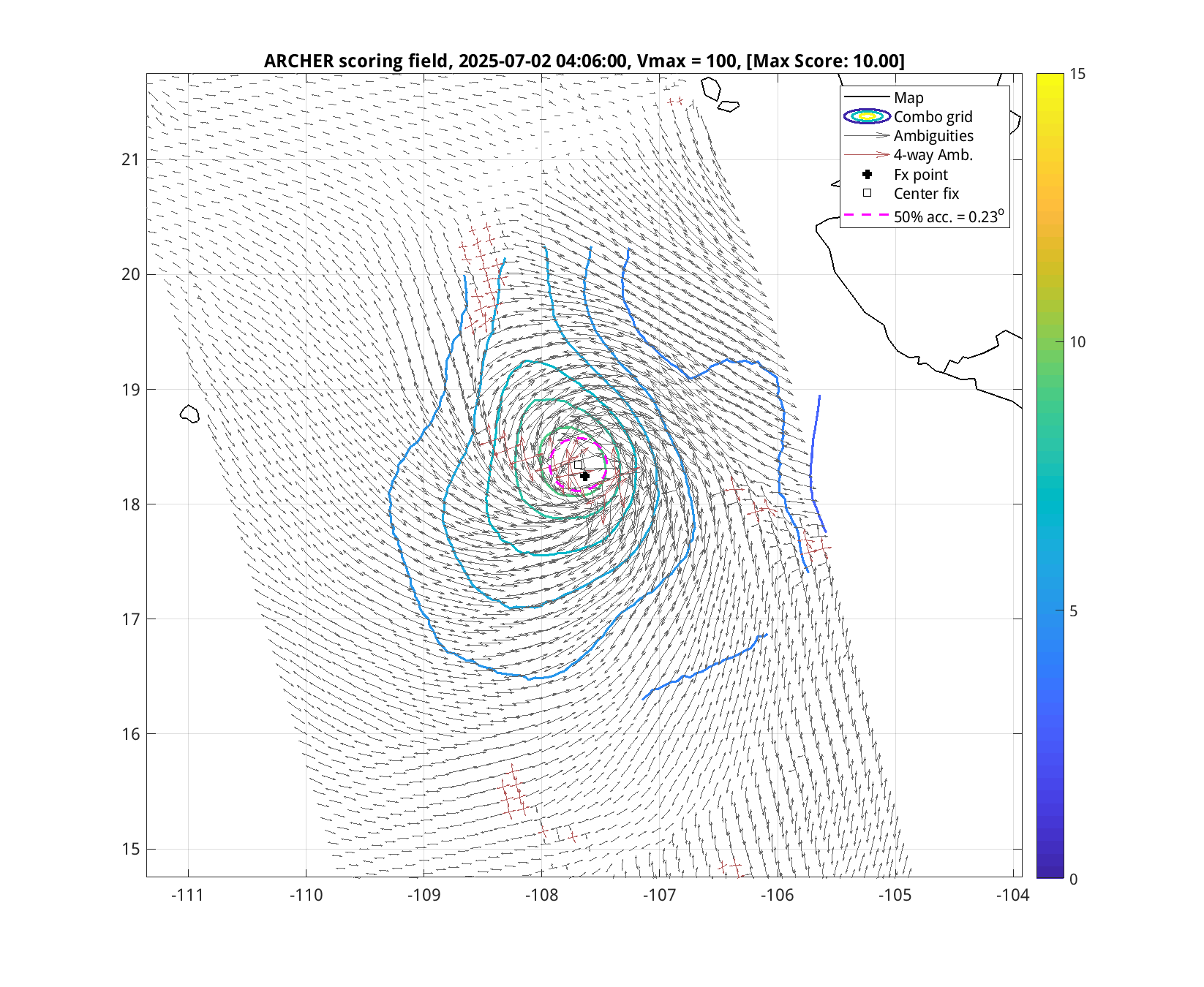

20250702 04:06:00 * Metop-C ASCAT 100.0 18.35 -107.69 18.25 -107.54 0.23 0.65 *** ***
20250702 02:53:26 GMI 85-92GHz 100.0 *** *** *** *** *** *** 3.00 ***
20250702 02:53:26 GMI 37GHz 100.0 *** *** *** *** *** *** 3.00 ***
20250702 01:34:34 SSMIS-16 85-92GHz 100.0 17.91 -107.20 18.03 -107.39 0.13 0.36 0.30 93.0
20250702 01:29:28 * SSMIS-17 85-92GHz 100.0 18.00 -107.25 17.88 -107.06 0.11 0.32 0.30 100.0

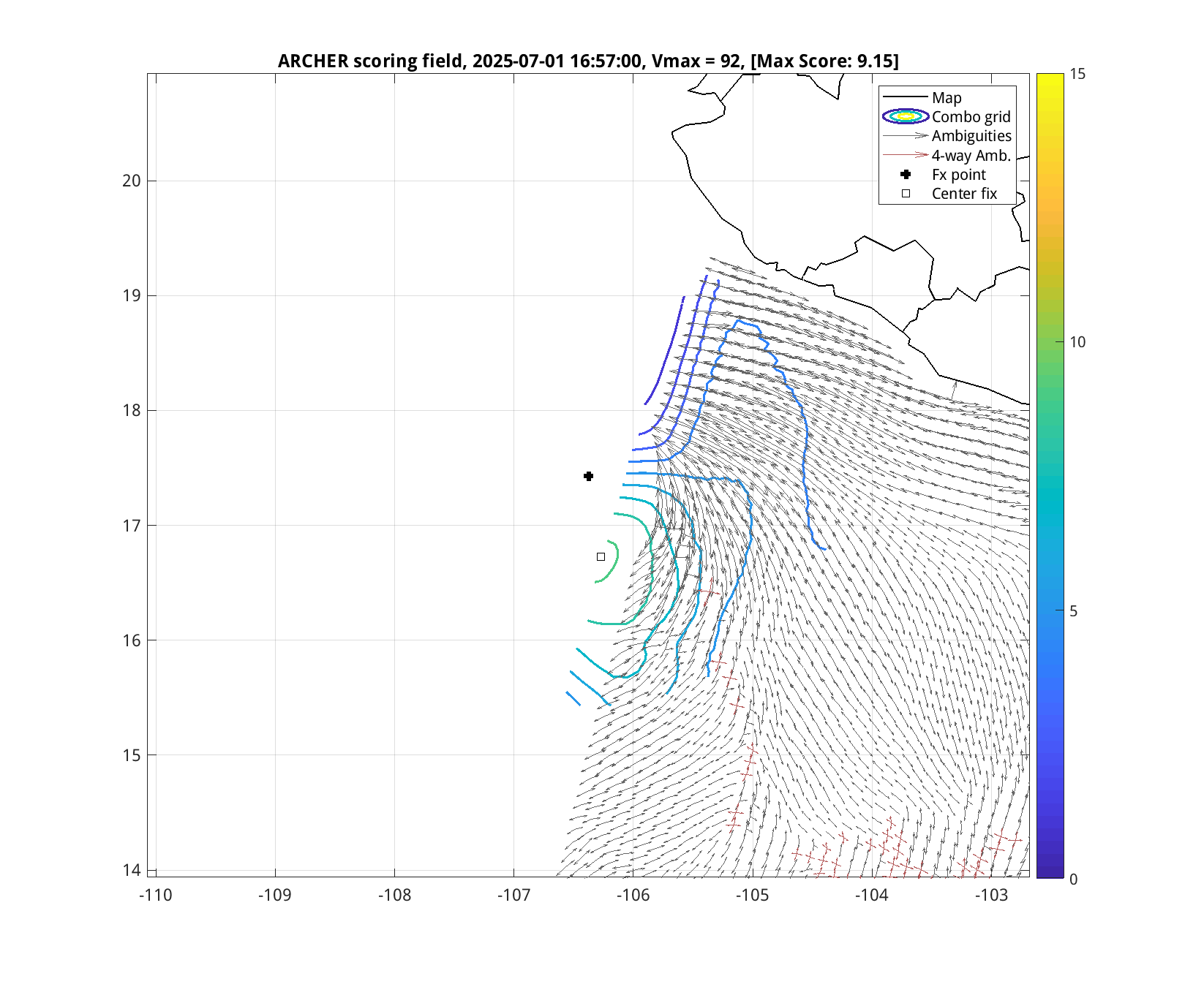

20250701 16:57:00 Metop-C ASCAT 92.4 *** *** *** *** *** *** *** ***

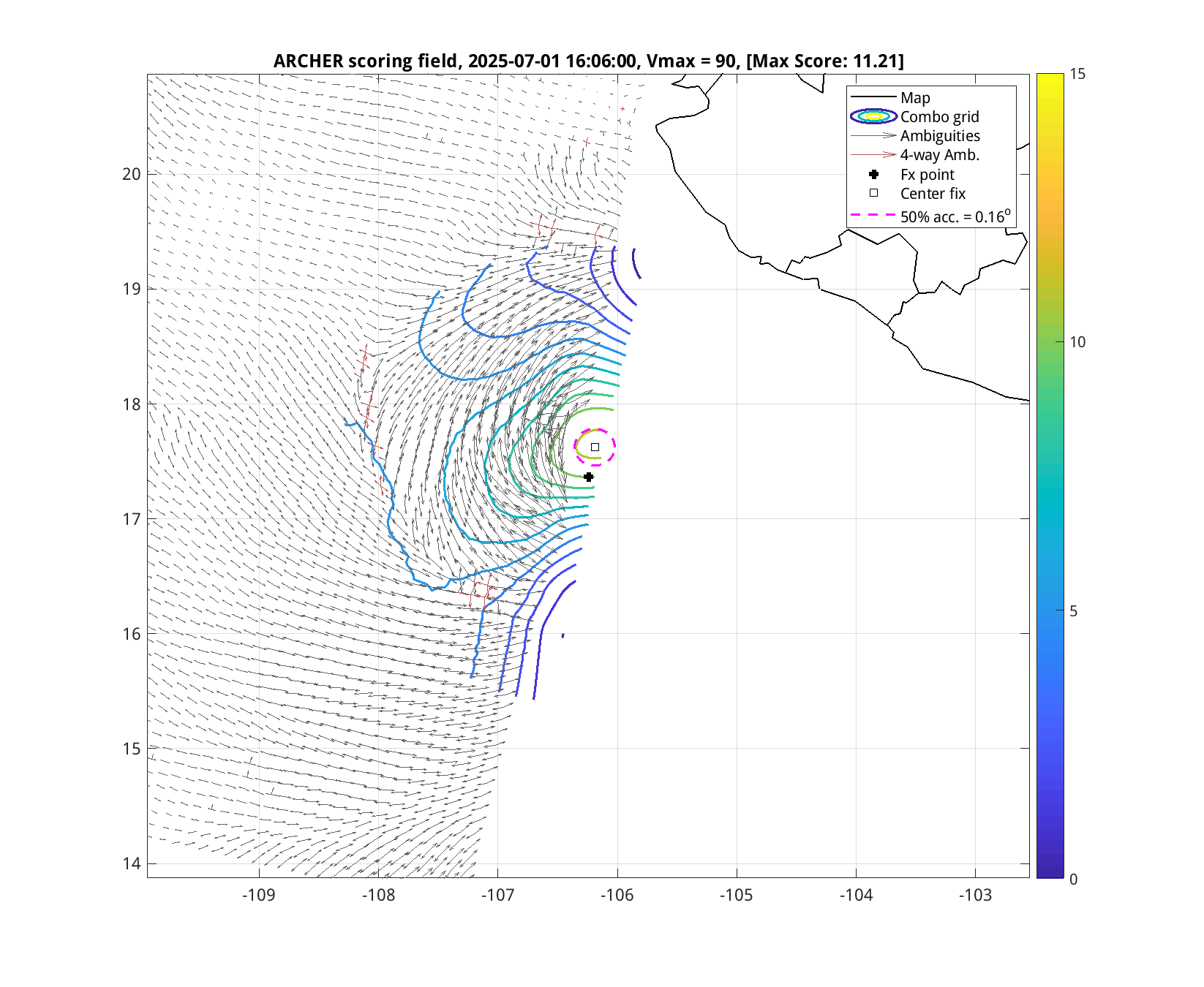

20250701 16:06:00 Metop-A ASCAT 90.2 17.62 -106.19 17.55 -106.00 0.16 0.45 *** ***
20250701 15:23:27 * GMI 85-92GHz 88.5 17.33 -106.06 17.30 -105.99 0.10 0.28 0.50 100.0
20250701 15:23:27 GMI 37GHz 88.5 17.38 -105.96 17.35 -105.89 0.11 0.31 0.40 ***
20250701 11:04:06 * SSMIS-18 85-92GHz 78.4 17.28 -105.38 17.34 -105.51 0.14 0.38 0.40 84.3
20250701 08:32:47 AMSR2 85-92GHz 74.2 16.92 -104.94 16.95 -105.00 0.15 0.42 0.30 90.6
20250701 08:32:47 * AMSR2 37GHz 74.2 17.02 -105.04 17.05 -105.10 0.12 0.33 0.40 ***
20250701 03:36:00 * Metop-A ASCAT 68.0 16.73 -104.43 16.70 -104.35 0.19 0.55 *** ***
20250630 22:30:11 * SSMIS-18 85-92GHz 62.5 15.91 -103.52 16.01 -103.69 0.15 0.42 0.40 91.3
20250630 20:20:04 AMSR2 85-92GHz 58.9 16.02 -103.65 16.08 -103.72 0.18 0.51 1.60 72.6
20250630 20:20:04 * AMSR2 37GHz 58.9 16.17 -103.59 16.23 -103.67 0.15 0.44 0.30 ***
20250630 16:03:26 GMI 85-92GHz 51.8 *** *** *** *** *** *** 1.80 ***
20250630 16:03:26 GMI 37GHz 51.8 *** *** *** *** *** *** 3.00 ***
20250630 12:50:41 * SSMIS-17 85-92GHz 46.4 15.59 -102.34 15.50 -102.20 0.13 0.38 1.20 79.8
20250630 11:18:20 * SSMIS-18 85-92GHz 44.4 15.32 -102.41 15.40 -102.52 0.23 0.65 1.40 50.3
20250630 02:43:26 GMI 85-92GHz 37.3 14.30 -100.80 14.34 -100.83 0.35 0.99 0.50 15.4
20250630 02:43:26 GMI 37GHz 37.3 14.40 -100.70 14.44 -100.72 0.25 0.72 0.20 ***
20250630 00:16:00 * SSMIS-17 85-92GHz 35.0 14.22 -100.37 14.20 -100.34 0.20 0.58 1.00 29.4
20250629 22:42:50 SSMIS-18 85-92GHz 35.0 13.97 -100.62 14.05 -100.75 0.28 0.79 0.60 14.9
20250629 19:36:31 * AMSR2 85-92GHz 35.0 13.50 -99.74 13.56 -99.88 0.24 0.68 3.00 0.0
20250629 19:36:31 AMSR2 37GHz 35.0 13.70 -99.95 13.76 -100.09 0.29 0.83 3.00 ***
20250629 13:05:13 * SSMIS-17 85-92GHz 35.0 13.32 -99.47 13.28 -99.39 0.20 0.56 1.20 47.5
20250629 08:45:59 * AMSR2 85-92GHz 29.6 13.32 -99.81 13.34 -99.83 0.49 1.40 3.00 0.0
20250629 08:45:59 AMSR2 37GHz 29.6 13.17 -99.14 13.19 -99.16 0.61 1.73 0.70 ***

Key:

Date/Time: UTC time. If this observation is used in the track it is marked with a "*". If it is used for its own 3-hr window, it is put in bold.

Source/sensor: Satellite source of the analyzed image.

Vmax: Maximum winds listed in the forecast center analysis/forecast, *not* ARCHER.

ARCHER lat/lon: Coordinates of the ARCHER algorithm, valid at the time of the observation. If no center fix could be found, then it is "***".

Geo ref lat/lon: Coordinates of the ARCHER algorithm, valid at the time of the *nearest geo image*.

50% cert. rad.: Radius of the circle (in degrees) that defines the area in which the ARCHER center of rotation is 50% certain. The lower the number, the more certain the position.

95% cert. rad.: Radius of the circle (in degrees) that defines the area in which the ARCHER center of rotation is 95% certain.

Eye diam (deg): ARCHER-resolved eye diameter (in degrees). Green: robust, yellow: less certain, red: not robust.

% cert. of eye: Percent certainty that an eye exists in this image, determined by ARCHER. Currently only available for IR and 85-92 GHz imagery.
