Tropical Depression 03B
|
ARCHER-V2 Auto-positioning Information Advanced Dvorak Technique (ADT) Version 9.1 |
-------FORECAST----- ----ARCHER---- 50% cert 95% cert Eyewall Conf Alpha Eye
Date/Time(UTC) Source Sensor Lat Lon Vmax Lat Lon radius radius radius Score Score Prob .
20251026 14:00:00 METEOSAT IR 11.55 85.93 35.0 10.18 87.41 1.16 0.40 0.41 0.62 4.09 49.1 PNG
20251026 14:30:00 METEOSAT IR 11.60 85.90 35.0 10.15 87.25 1.00 0.40 0.36 0.69 4.73 59.7 PNG
20251026 15:00:00 METEOSAT IR 11.65 85.87 35.0 10.20 87.14 0.86 0.40 0.30 0.77 5.50 62.8 PNG

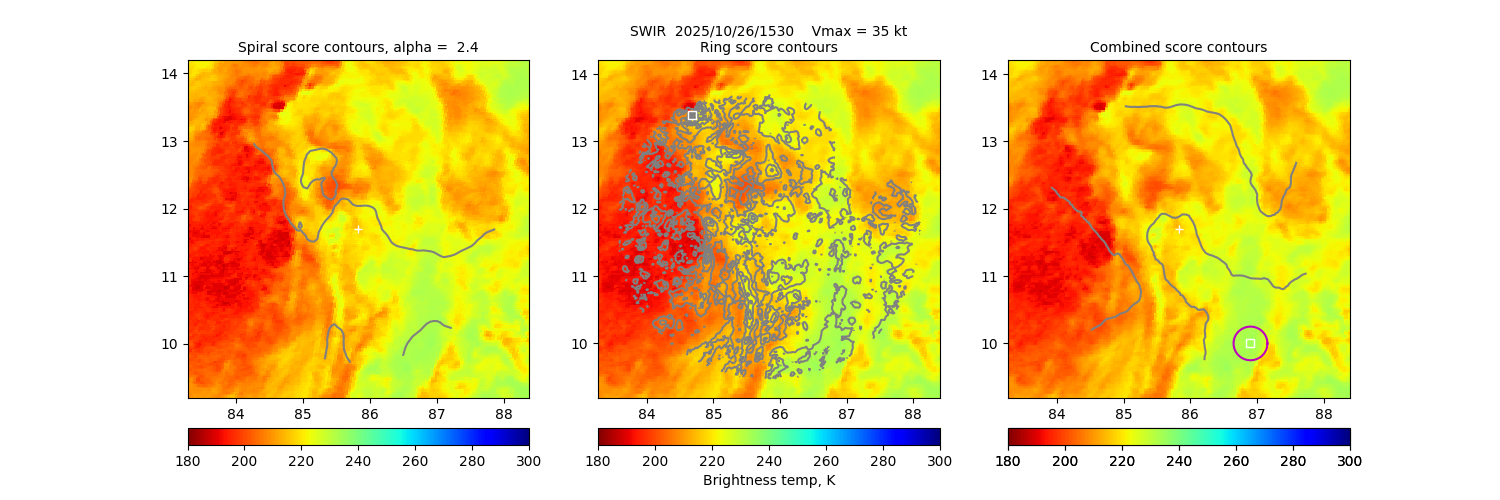

20251026 15:30:00 METEOSAT SWIR 11.70 85.83 35.0 10.00 86.90 1.94 0.25 N/A 0.32 2.45 0.0 PNG

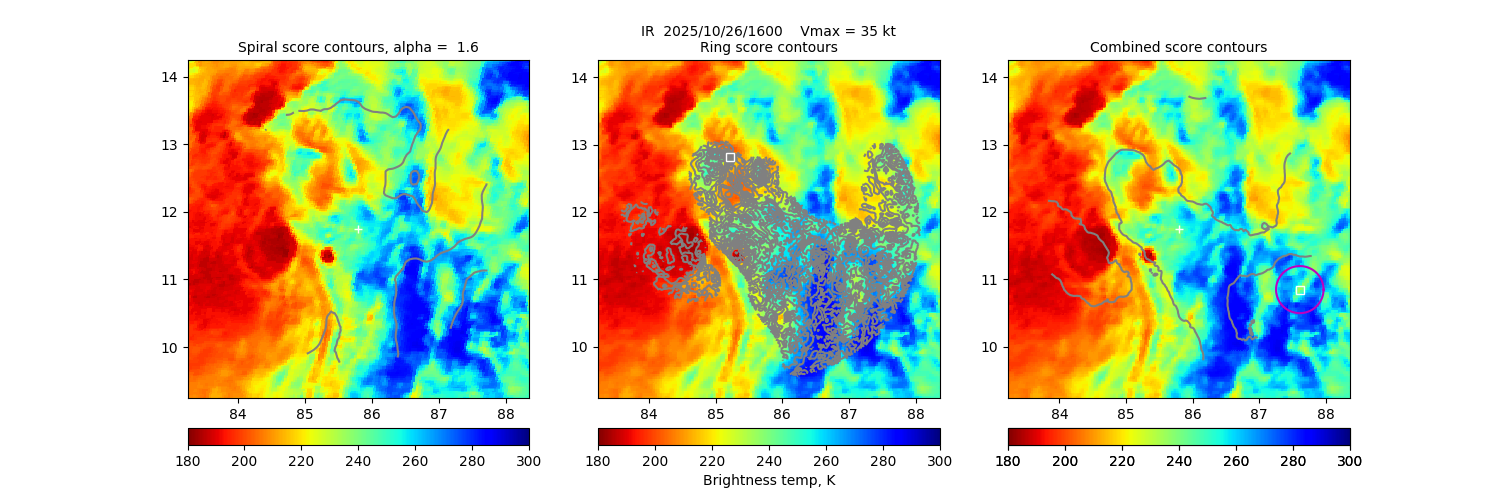

20251026 16:00:00 METEOSAT IR 11.75 85.80 35.0 10.85 87.61 2.95 0.35 1.05 0.37 1.61 26.6 PNG
20251026 16:30:00 METEOSAT IR 11.79 85.76 35.0 10.44 87.27 9.49 0.35 3.36 0.12 0.50 4.6 PNG

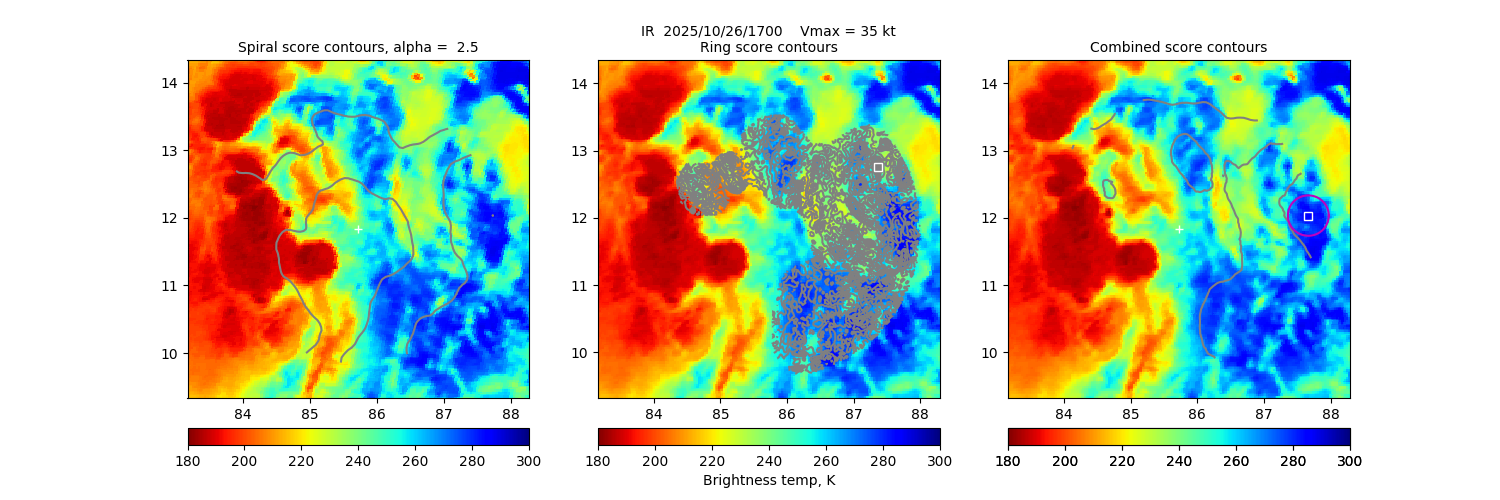

20251026 17:00:00 METEOSAT IR 11.83 85.73 35.0 12.03 87.67 1.86 0.30 0.66 0.47 2.54 46.3 PNG
20251026 17:30:00 METEOSAT IR 11.88 85.69 35.0 12.03 87.42 2.03 0.25 0.72 0.45 2.34 39.0 PNG
20251026 18:00:00 METEOSAT IR 11.92 85.65 35.0 11.82 87.29 9.49 0.15 3.36 0.22 0.50 9.6 PNG

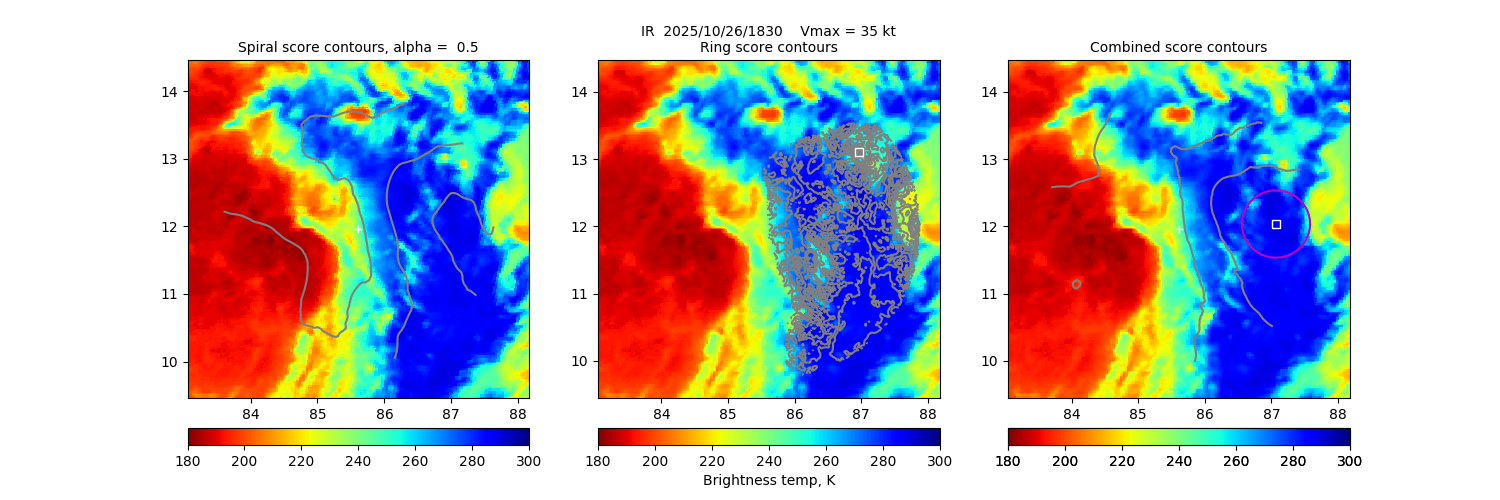

20251026 18:30:00 METEOSAT IR 11.96 85.61 35.0 12.03 87.07 9.49 0.50 3.36 0.08 0.50 3.6 PNG

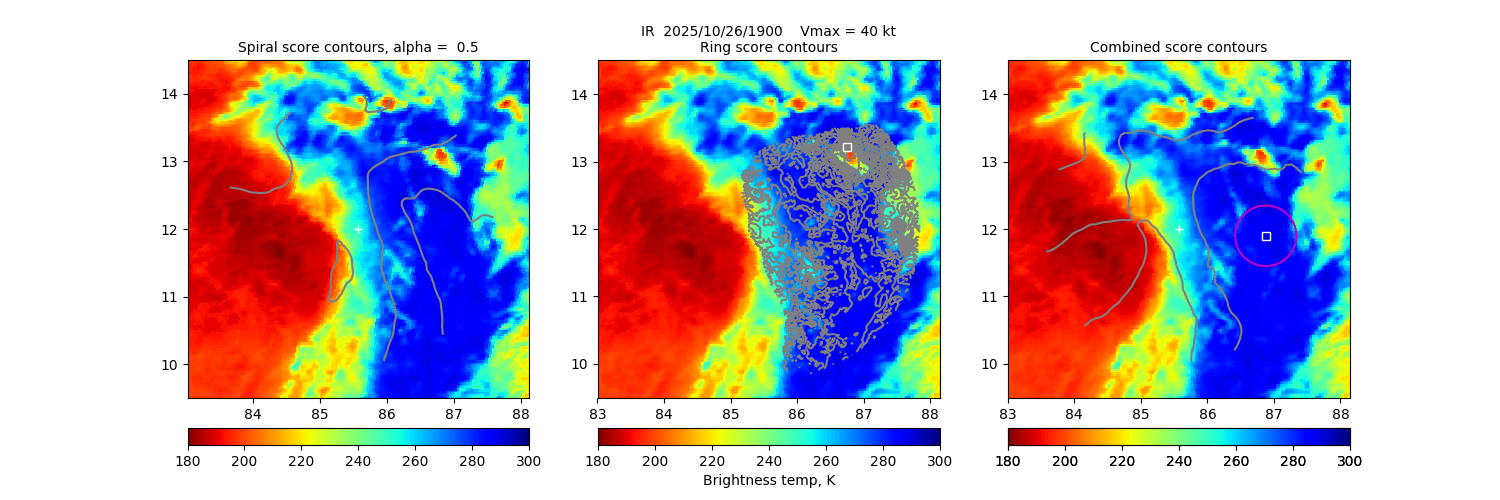

20251026 19:00:00 METEOSAT IR 12.00 85.57 40.0 11.90 86.88 9.49 0.45 3.36 0.04 0.50 1.5 PNG

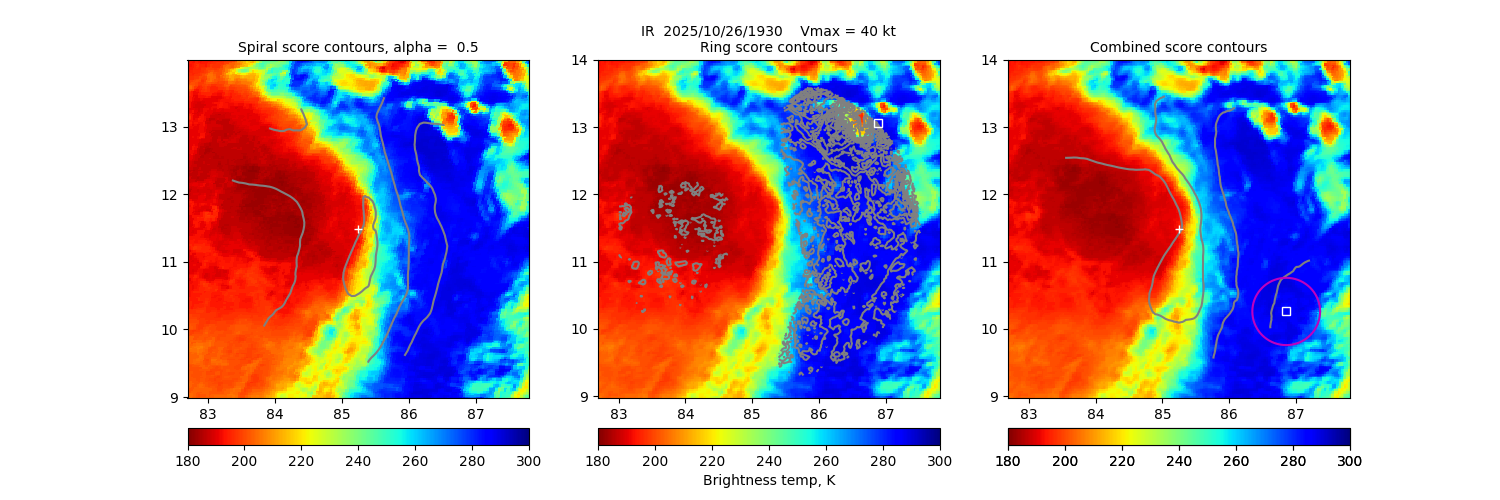

20251026 19:30:00 METEOSAT IR 11.48 85.25 40.0 10.26 86.86 9.49 0.50 3.36 0.18 0.50 6.0 PNG
20251026 20:00:00 METEOSAT SWIR 11.53 85.21 40.0 11.83 83.73 3.85 0.05 N/A 0.18 1.23 0.0 PNG

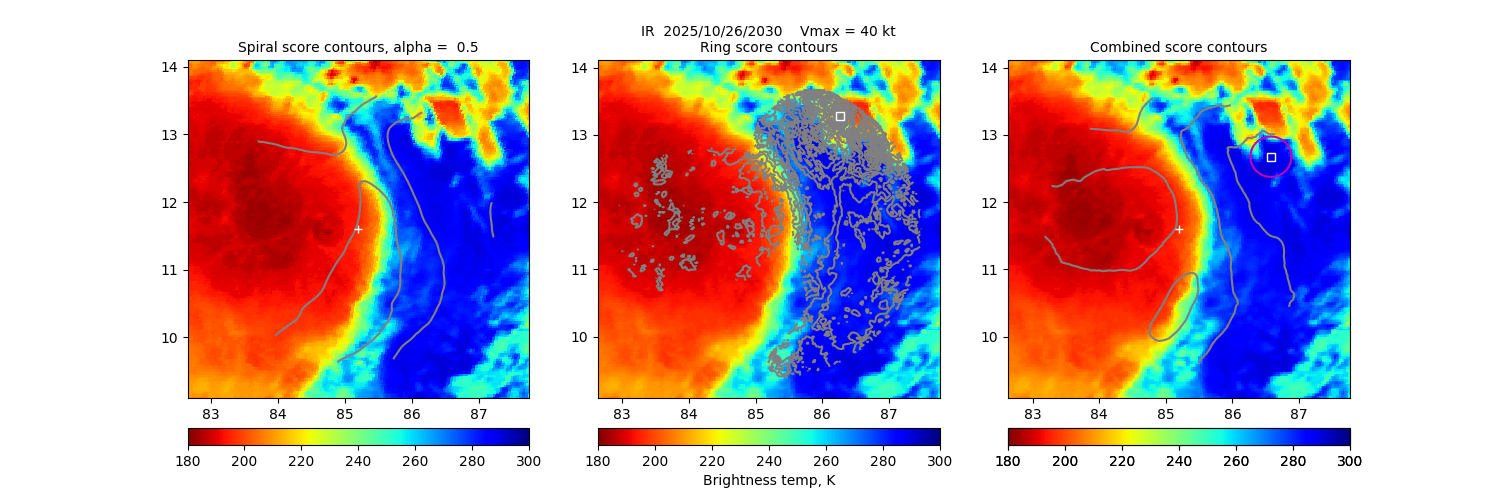

20251026 20:30:00 METEOSAT IR 11.60 85.20 40.0 12.68 86.58 9.49 0.30 3.36 0.05 0.50 4.2 PNG

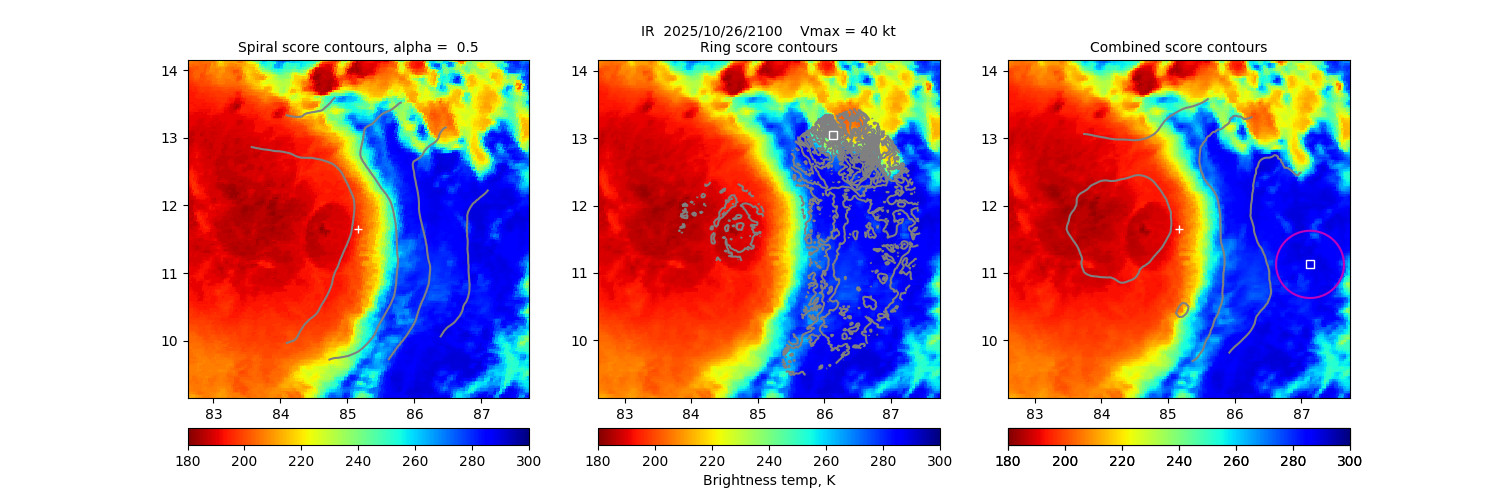

20251026 21:00:00 METEOSAT IR 11.65 85.16 40.0 11.13 87.13 9.49 0.50 3.36 0.12 0.50 2.0 PNG
20251026 21:30:00 METEOSAT IR 11.70 85.13 40.0 11.45 87.15 4.69 0.15 1.66 0.31 1.01 14.5 PNG

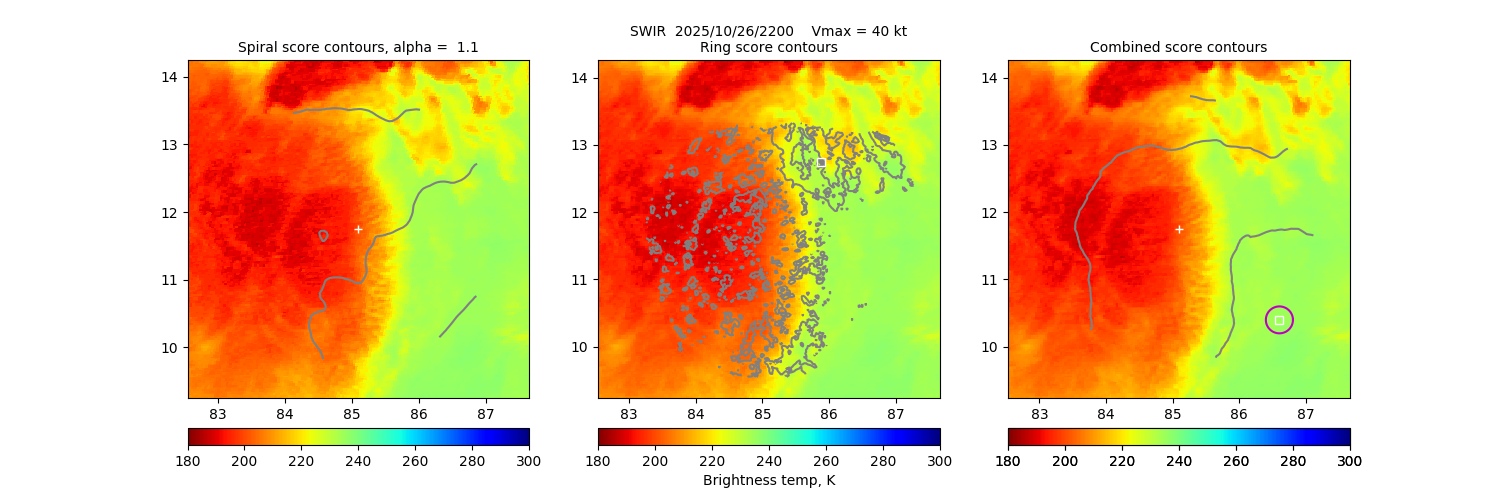

20251026 22:00:00 METEOSAT SWIR 11.75 85.10 40.0 10.40 86.60 4.47 0.20 N/A 0.16 1.06 0.0 PNG
20251026 22:30:00 METEOSAT IR 11.80 85.06 40.0 10.90 86.72 8.54 0.15 3.02 0.27 0.56 10.7 PNG
20251026 23:00:00 SSMISF18 89GHz 11.84 85.02 40.0 12.49 84.82 0.90 1.40 0.32 0.80 5.24 9.3 PNG
20251026 23:30:00 SSMISF18 89GHz 11.84 85.02 40.0 12.48 84.82 0.90 1.40 0.32 0.80 5.12 9.3 PNG
20251027 00:00:00 SSMISF18 89GHz 11.84 85.02 40.0 12.53 84.78 0.90 1.40 0.32 0.80 5.01 9.3 PNG
20251027 00:30:00 SSMISF18 89GHz 11.84 85.02 40.0 13.24 85.05 0.90 1.40 0.32 0.80 4.89 9.3 PNG
20251027 01:00:00 SSMISF18 89GHz 11.84 85.02 40.0 13.31 85.02 0.90 1.40 0.32 0.80 4.75 9.3 PNG
20251027 01:30:00 METEOSAT IR 12.70 85.10 40.0 11.10 86.33 0.90 0.45 0.32 0.74 5.29 33.3 PNG
20251027 02:00:00 METEOSAT IR 12.75 85.05 40.0 11.05 86.12 0.98 0.20 0.35 0.70 4.86 25.8 PNG
20251027 02:30:00 SSMISF18 89GHz 11.84 85.02 40.0 13.40 84.84 0.90 1.40 0.32 0.80 4.33 9.3 PNG
20251027 03:00:00 SSMISF18 89GHz 11.84 85.02 40.0 13.45 84.79 0.90 1.40 0.32 0.80 4.18 9.3 PNG
20251027 03:30:00 SSMISF18 89GHz 11.84 85.02 40.0 13.51 84.75 0.90 1.40 0.32 0.80 4.04 9.3 PNG

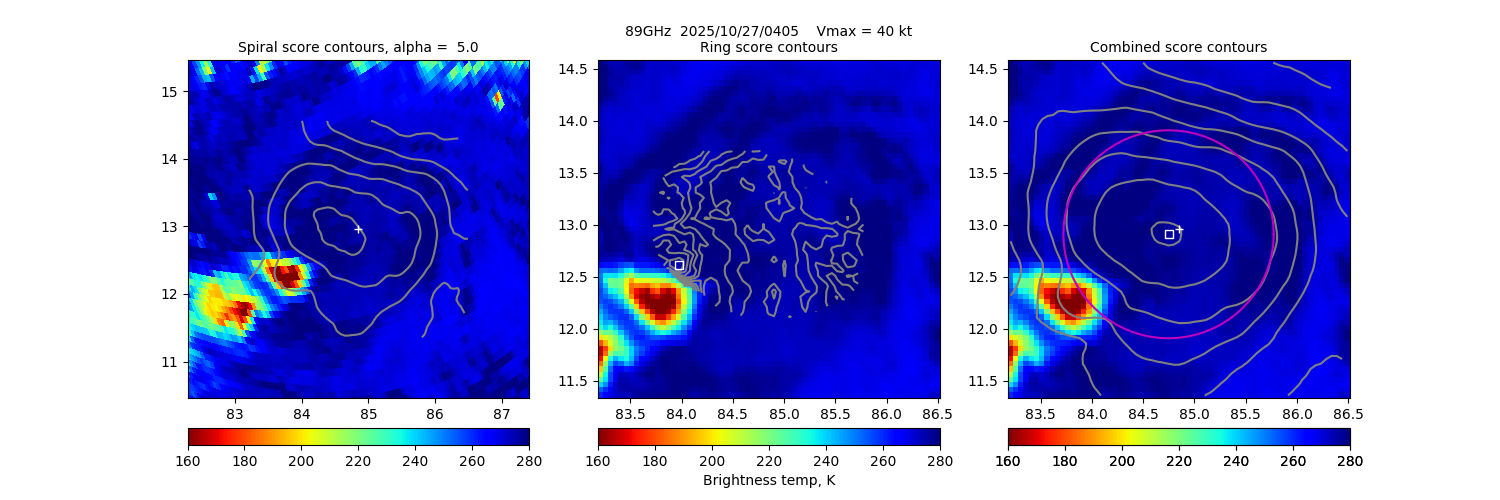

20251027 04:00:00 GMI 89GHz 12.96 84.85 40.0 12.91 84.75 0.95 1.00 0.34 0.72 4.99 3.8 PNG
20251027 04:30:00 GMI 89GHz 12.96 84.85 40.0 12.93 84.77 0.95 1.00 0.34 0.72 4.96 3.8 PNG

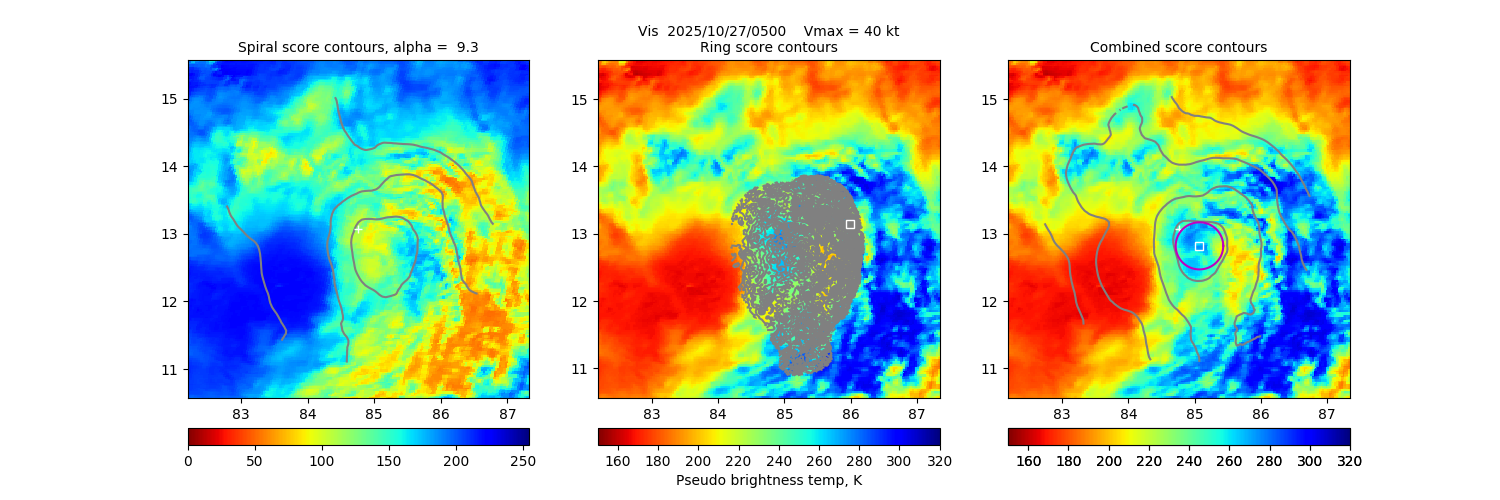

20251027 05:00:00 METEOSAT Vis 13.07 84.76 40.0 12.82 85.07 0.51 0.35 N/A 0.70 9.28 0.0 PNG
20251027 05:30:00 METEOSAT Vis 13.13 84.72 40.0 12.88 84.93 0.61 0.10 N/A 0.59 7.76 0.0 PNG
20251027 06:00:00 METEOSAT Vis 13.18 84.68 40.0 12.68 84.83 0.67 0.10 N/A 0.55 7.04 0.0 PNG
20251027 06:30:00 GMI 89GHz 12.96 84.85 40.0 12.72 84.15 0.95 1.00 0.34 0.72 4.55 3.8 PNG
20251027 07:00:00 GMI 89GHz 12.96 84.85 40.0 12.79 84.11 0.95 1.00 0.34 0.72 4.43 3.8 PNG
20251027 07:30:00 GMI 89GHz 12.96 84.85 40.0 12.79 84.04 0.95 1.00 0.34 0.72 4.30 3.8 PNG
20251027 08:00:00 METEOSAT Vis 12.95 84.05 40.0 13.05 84.61 0.83 0.35 N/A 0.45 5.70 0.0 PNG
20251027 08:30:00 METEOSAT Vis 13.00 84.00 40.0 12.95 84.56 0.91 0.15 N/A 0.42 5.23 0.0 PNG
20251027 09:00:00 METEOSAT Vis 13.05 83.95 40.0 13.05 84.51 0.54 0.25 N/A 0.66 8.77 0.0 PNG
20251027 09:30:00 METEOSAT Vis 13.10 83.90 40.0 13.10 84.52 0.65 0.25 N/A 0.56 7.28 0.0 PNG
20251027 10:00:00 METEOSAT Vis 13.15 83.85 40.0 13.20 84.62 0.99 0.30 N/A 0.39 4.80 0.0 PNG
20251027 10:30:00 GMI 89GHz 12.96 84.85 40.0 13.11 83.76 0.95 1.00 0.34 0.72 3.52 3.8 PNG
20251027 11:00:00 GMI 89GHz 12.96 84.85 40.0 13.16 83.72 0.95 1.00 0.34 0.72 3.41 3.8 PNG
20251027 11:30:00 METEOSAT IR 13.31 83.72 40.0 14.86 84.75 1.39 0.50 0.49 0.55 3.41 17.8 PNG
20251027 12:00:00 GMI 89GHz 12.96 84.85 40.0 13.28 83.64 0.95 1.00 0.34 0.72 3.18 3.8 PNG
20251027 12:30:00 GMI 89GHz 12.96 84.85 40.0 13.34 83.60 0.95 1.00 0.34 0.72 3.07 3.8 PNG
20251027 13:00:00 GMI 89GHz 12.96 84.85 40.0 13.40 83.56 0.95 1.00 0.34 0.72 2.97 3.8 PNG
20251027 13:30:00 GMI 89GHz 12.96 84.85 40.0 13.40 83.80 0.95 1.00 0.34 0.72 2.87 3.8 PNG
20251027 14:00:00 GMI 89GHz 12.96 84.85 40.0 13.44 83.77 0.95 1.00 0.34 0.72 2.77 3.8 PNG
20251027 14:30:00 GMI 89GHz 12.96 84.85 40.0 13.48 83.73 0.95 1.00 0.34 0.72 2.68 3.8 PNG
20251027 15:00:00 GMI 89GHz 12.96 84.85 40.0 13.55 83.70 0.95 1.00 0.34 0.72 2.59 3.8 PNG
20251027 15:30:00 GMI 89GHz 12.96 84.85 40.0 13.60 83.66 0.95 1.00 0.34 0.72 2.51 3.8 PNG
20251027 16:00:00 GMI 89GHz 12.96 84.85 40.0 13.65 83.62 0.95 1.00 0.34 0.72 2.43 3.8 PNG
20251027 16:30:00 METEOSAT IR 13.80 83.66 45.0 14.25 85.56 2.70 0.50 0.95 0.39 1.76 12.9 PNG
20251027 17:00:00 METEOSAT IR 13.85 83.62 45.0 14.30 85.45 5.38 0.35 1.90 0.30 0.88 8.4 PNG
20251027 17:30:00 METEOSAT IR 13.90 83.59 45.0 14.35 85.13 9.49 0.45 3.36 0.24 0.50 4.7 PNG

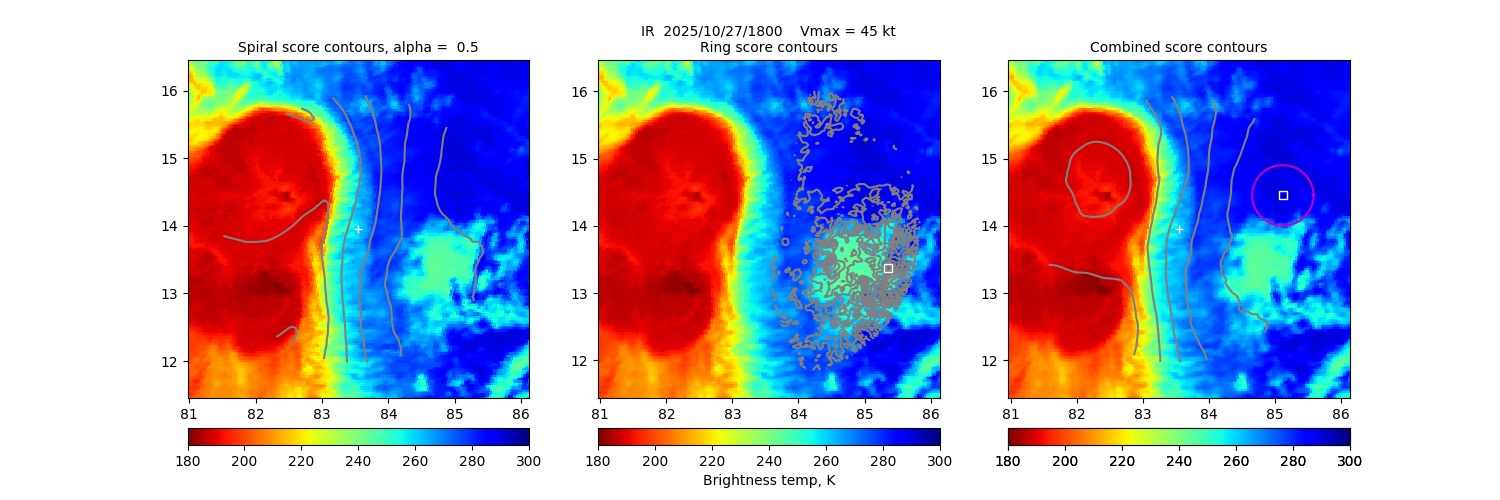

20251027 18:00:00 METEOSAT IR 13.95 83.55 45.0 14.45 85.12 9.49 0.45 3.36 0.14 0.50 5.0 PNG

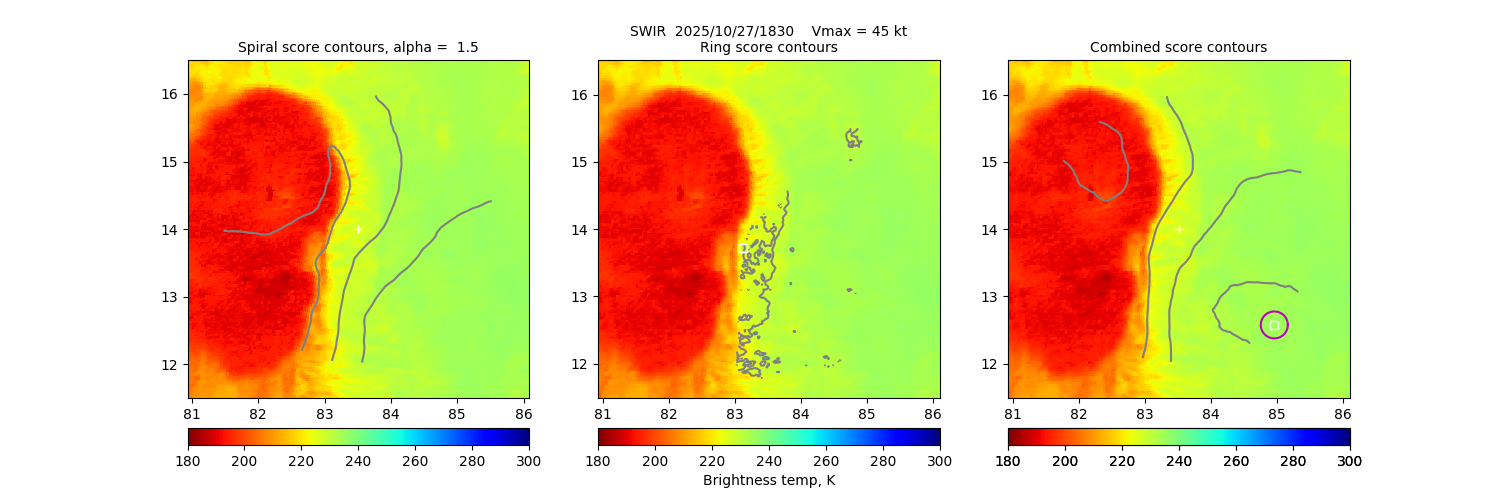

20251027 18:30:00 METEOSAT SWIR 14.00 83.51 45.0 12.58 84.95 3.19 0.20 N/A 0.21 1.49 0.0 PNG
20251027 19:00:00 METEOSAT SWIR 14.05 83.47 45.0 12.70 84.99 3.50 0.05 N/A 0.20 1.36 0.0 PNG

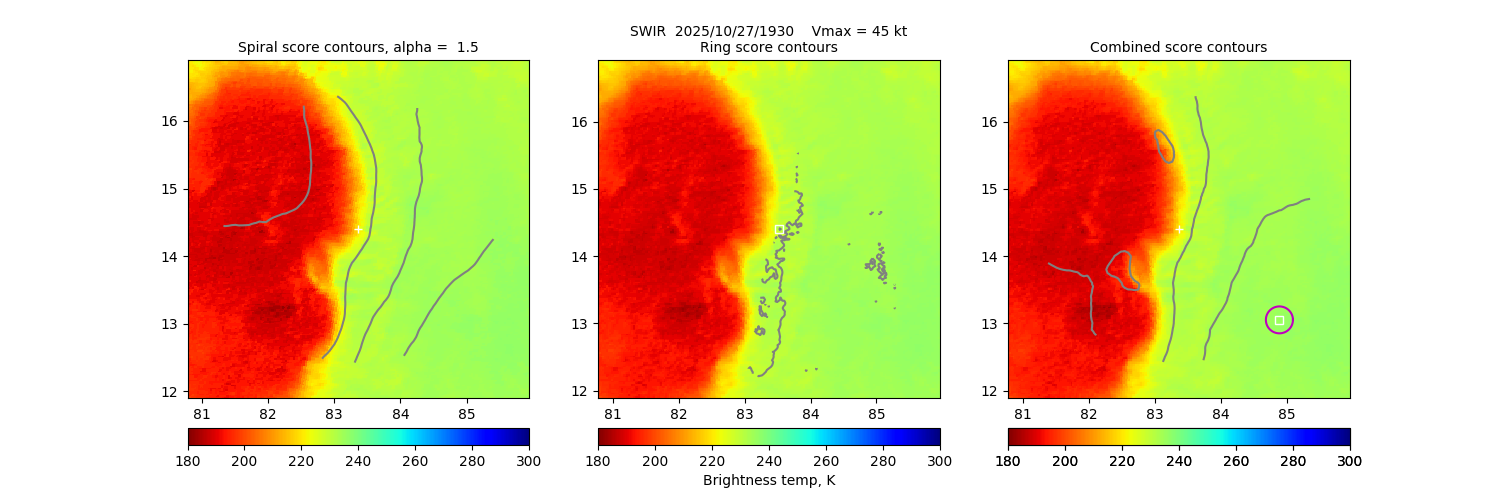

20251027 19:30:00 METEOSAT SWIR 14.40 83.37 45.0 13.05 84.89 3.06 0.20 N/A 0.22 1.55 0.0 PNG
20251027 20:00:00 METEOSAT SWIR 14.45 83.33 45.0 13.50 85.14 3.97 0.05 N/A 0.18 1.20 0.0 PNG
20251027 20:30:00 METEOSAT IR 14.50 83.30 45.0 14.38 85.24 5.52 0.20 1.95 0.30 0.86 21.5 PNG

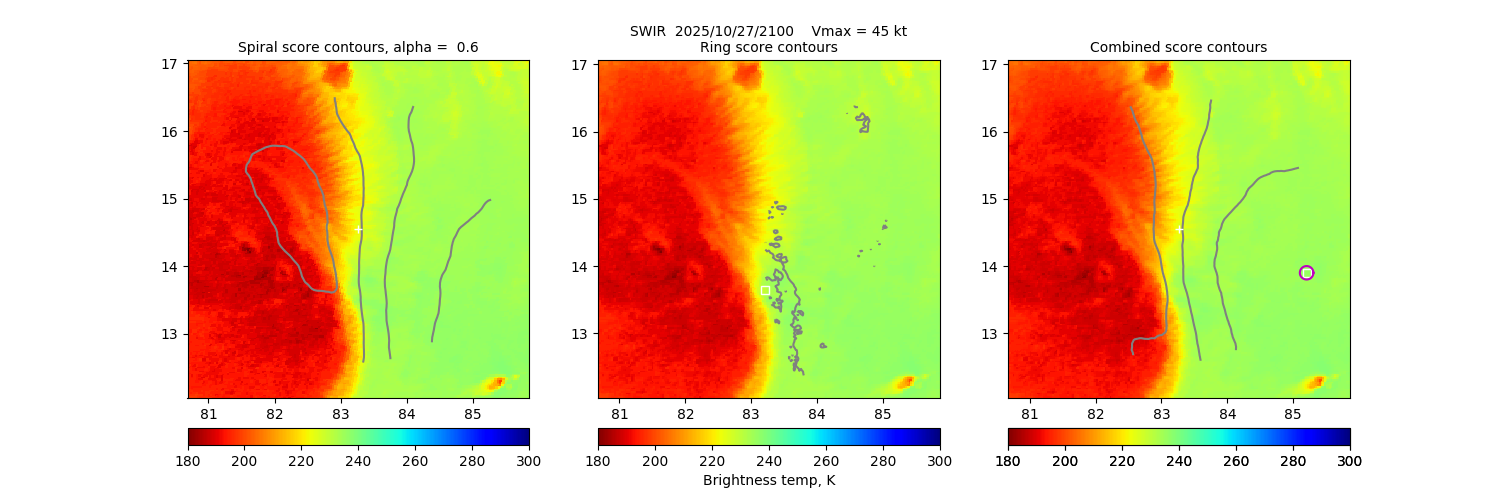

20251027 21:00:00 METEOSAT SWIR 14.55 83.27 45.0 13.90 85.20 8.08 0.10 N/A 0.11 0.59 0.0 PNG
20251027 21:30:00 METEOSAT IR 14.60 83.23 45.0 14.60 85.30 9.49 0.30 3.36 0.08 0.50 0.6 PNG

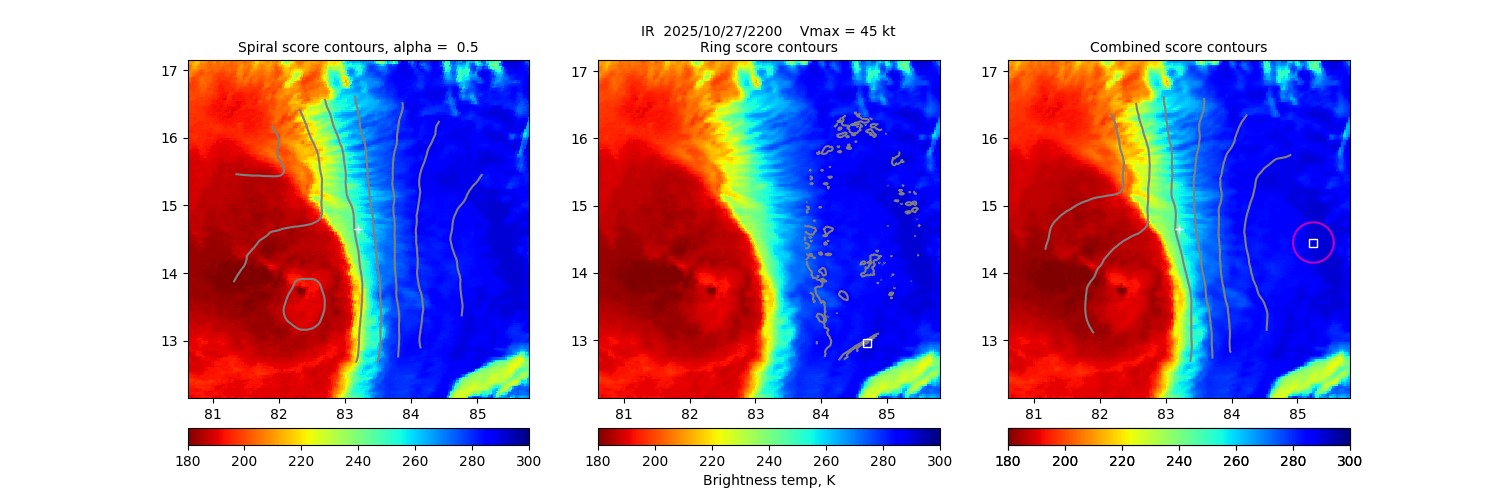

20251027 22:00:00 METEOSAT IR 14.65 83.20 45.0 14.45 85.24 9.49 0.30 3.36 0.22 0.50 1.0 PNG

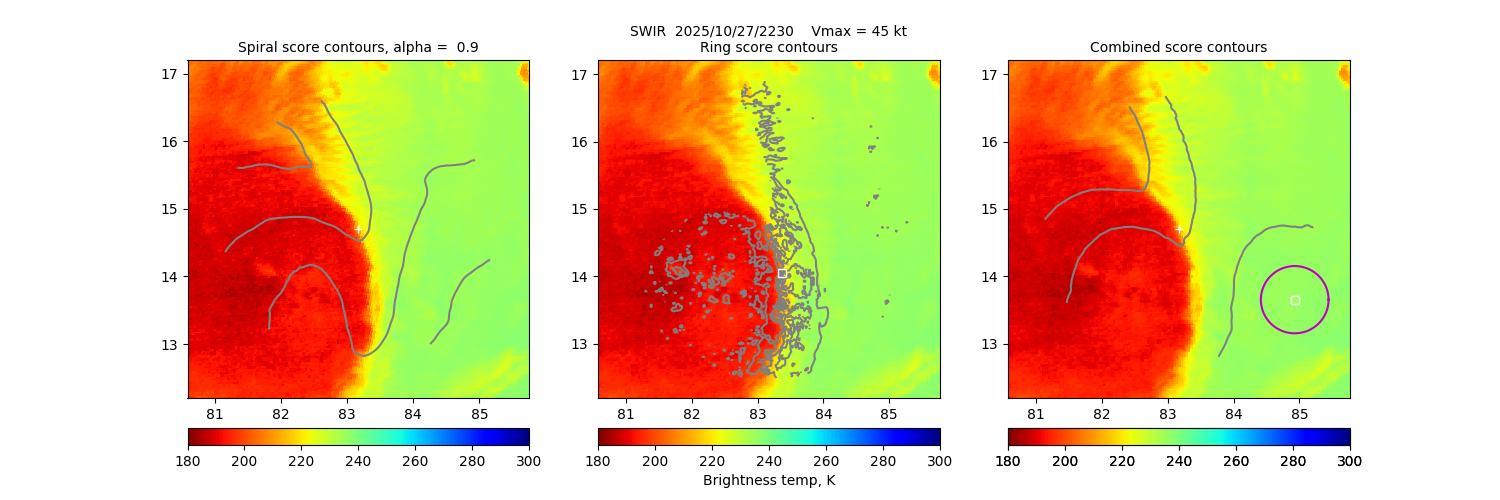

20251027 22:30:00 METEOSAT SWIR 14.70 83.17 45.0 13.65 84.93 5.58 0.50 N/A 0.14 0.85 0.0 PNG

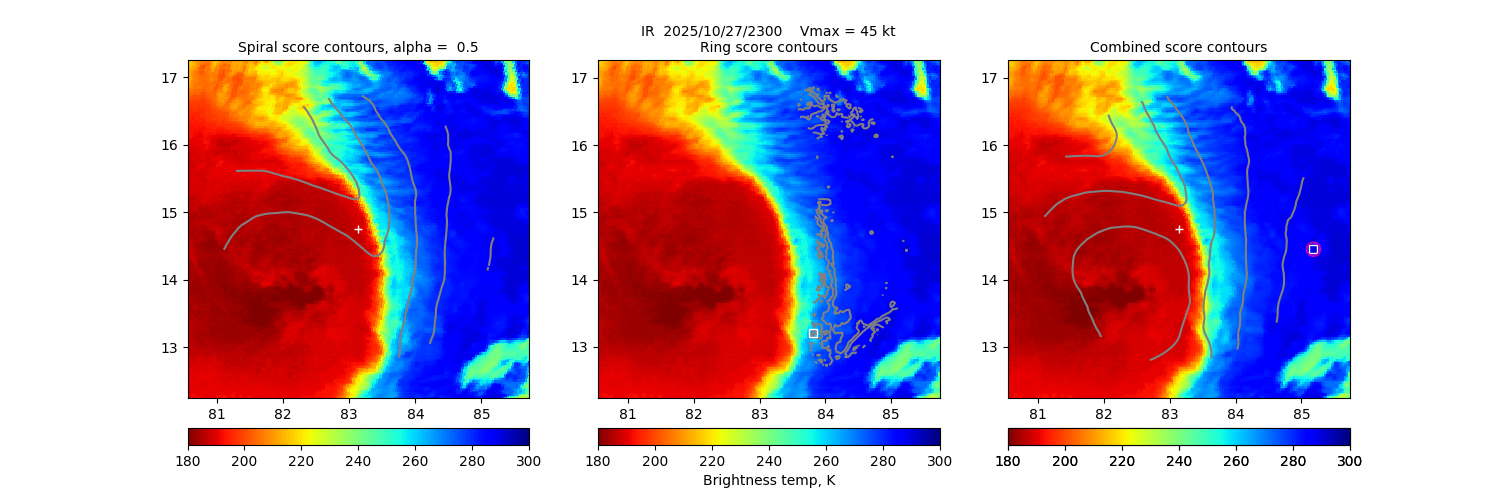

20251027 23:00:00 METEOSAT IR 14.75 83.14 45.0 14.45 85.18 9.49 0.10 3.36 0.17 0.50 1.3 PNG
20251027 23:30:00 METEOSAT SWIR 14.80 83.11 45.0 13.95 82.18 4.81 0.05 N/A 0.16 0.99 0.0 PNG
20251028 00:00:00 METEOSAT SWIR 14.85 83.08 45.0 14.23 82.20 3.35 0.15 N/A 0.21 1.41 0.0 PNG
20251028 00:30:00 METEOSAT IR 14.90 83.05 45.0 14.60 85.10 9.49 0.50 3.36 0.17 0.50 0.9 PNG

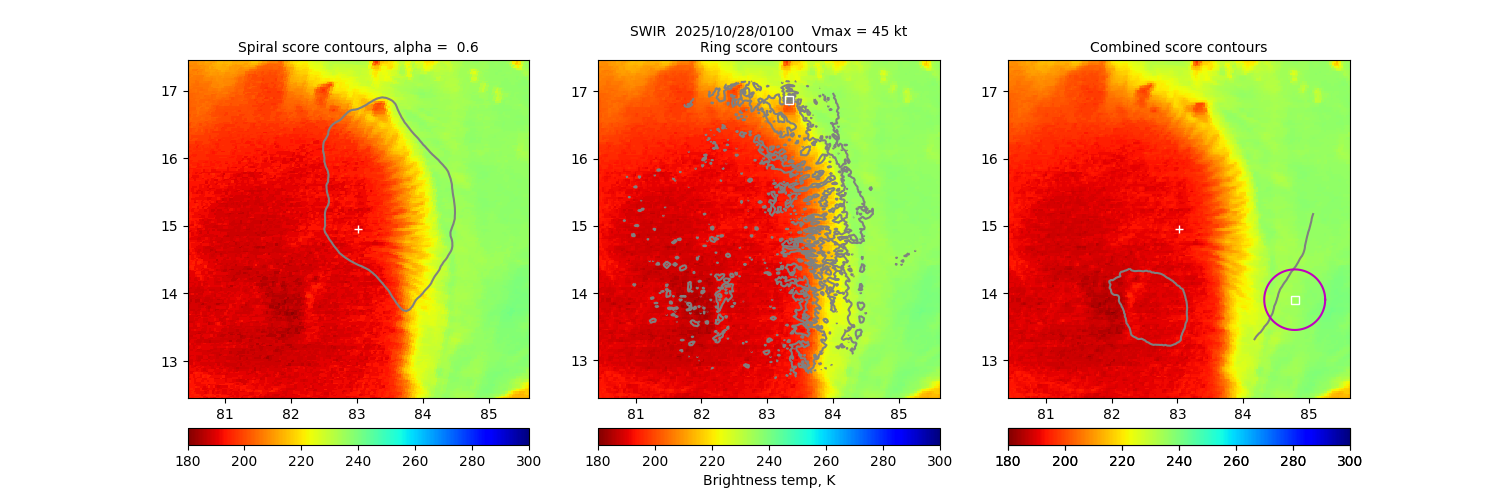

20251028 01:00:00 METEOSAT SWIR 14.95 83.02 45.0 13.90 84.78 7.33 0.45 N/A 0.12 0.65 0.0 PNG

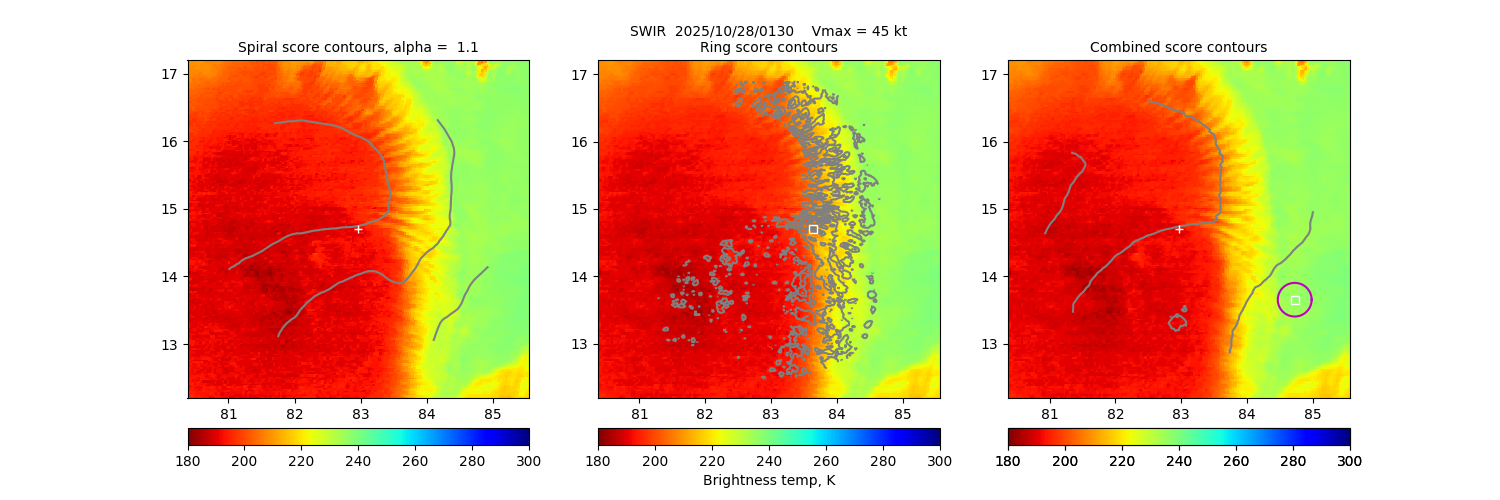

20251028 01:30:00 METEOSAT SWIR 14.70 82.97 45.0 13.65 84.72 4.47 0.25 N/A 0.16 1.06 0.0 PNG
20251028 02:00:00 SSMISF17 89GHz 14.75 82.93 45.0 15.30 82.93 0.77 1.80 0.27 1.08 6.16 21.4 PNG
20251028 02:30:00 SSMISF17 89GHz 14.75 82.93 45.0 15.30 82.93 0.77 1.80 0.27 1.08 5.89 21.4 PNG
20251028 03:00:00 SSMISF17 89GHz 14.75 82.93 45.0 15.35 82.90 0.77 1.80 0.27 1.08 5.72 21.4 PNG
20251028 03:30:00 METEOSAT Vis 14.90 82.83 45.0 13.95 84.41 0.66 0.05 N/A 0.56 7.21 0.0 PNG
20251028 04:00:00 SSMISF17 89GHz 14.75 82.93 45.0 15.45 82.84 0.77 1.80 0.27 1.08 5.36 21.4 PNG
20251028 04:30:00 SSMISF17 89GHz 14.75 82.93 45.0 15.51 82.81 0.77 1.80 0.27 1.08 5.18 21.4 PNG
20251028 05:00:00 SSMISF17 89GHz 14.75 82.93 45.0 15.56 82.78 0.77 1.80 0.27 1.08 4.99 21.4 PNG
20251028 05:30:00 SSMISF17 89GHz 14.75 82.93 45.0 15.62 82.75 0.77 1.80 0.27 1.08 4.80 21.4 PNG
20251028 06:00:00 SSMISF17 89GHz 14.75 82.93 45.0 15.67 82.72 0.77 1.80 0.27 1.08 4.62 21.4 PNG
20251028 06:30:00 SSMISF17 89GHz 14.75 82.93 45.0 15.73 82.69 0.77 1.80 0.27 1.08 4.44 21.4 PNG
20251028 07:00:00 SSMISF17 89GHz 14.75 82.93 45.0 15.78 82.66 0.77 1.80 0.27 1.08 4.27 21.4 PNG
20251028 07:30:00 SSMISF17 89GHz 14.75 82.93 45.0 15.90 82.50 0.77 1.80 0.27 1.08 4.10 21.4 PNG
20251028 08:00:00 SSMISF17 89GHz 14.75 82.93 45.0 15.89 82.60 0.77 1.80 0.27 1.08 3.94 21.4 PNG
20251028 08:30:00 SSMISF17 89GHz 14.75 82.93 45.0 15.99 82.42 0.77 1.80 0.27 1.08 3.79 21.4 PNG
20251028 09:00:00 SSMISF17 89GHz 14.75 82.93 45.0 16.04 82.39 0.77 1.80 0.27 1.08 3.64 21.4 PNG
20251028 09:30:00 SSMISF17 89GHz 14.75 82.93 45.0 16.09 82.35 0.77 1.80 0.27 1.08 3.50 21.4 PNG
20251028 10:00:00 AMSR2 89GHz 15.65 82.30 45.0 14.15 82.61 0.89 1.45 0.31 0.83 5.36 31.8 PNG
20251028 10:30:00 AMSR2 89GHz 15.65 82.30 45.0 14.16 82.61 0.89 1.45 0.31 0.83 4.81 31.8 PNG
20251028 11:00:00 AMSR2 89GHz 15.65 82.30 45.0 14.21 82.58 0.89 1.45 0.31 0.83 4.67 31.8 PNG
20251028 11:30:00 AMSR2 89GHz 15.65 82.30 45.0 14.26 82.54 0.89 1.45 0.31 0.83 4.52 31.8 PNG
20251028 12:00:00 AMSR2 89GHz 15.65 82.30 45.0 14.32 82.51 0.89 1.45 0.31 0.83 4.37 31.8 PNG
20251028 12:30:00 AMSR2 89GHz 15.65 82.30 45.0 14.37 82.48 0.89 1.45 0.31 0.83 4.23 31.8 PNG
20251028 13:00:00 AMSR2 89GHz 15.65 82.30 45.0 14.43 82.44 0.89 1.45 0.31 0.83 4.08 31.8 PNG

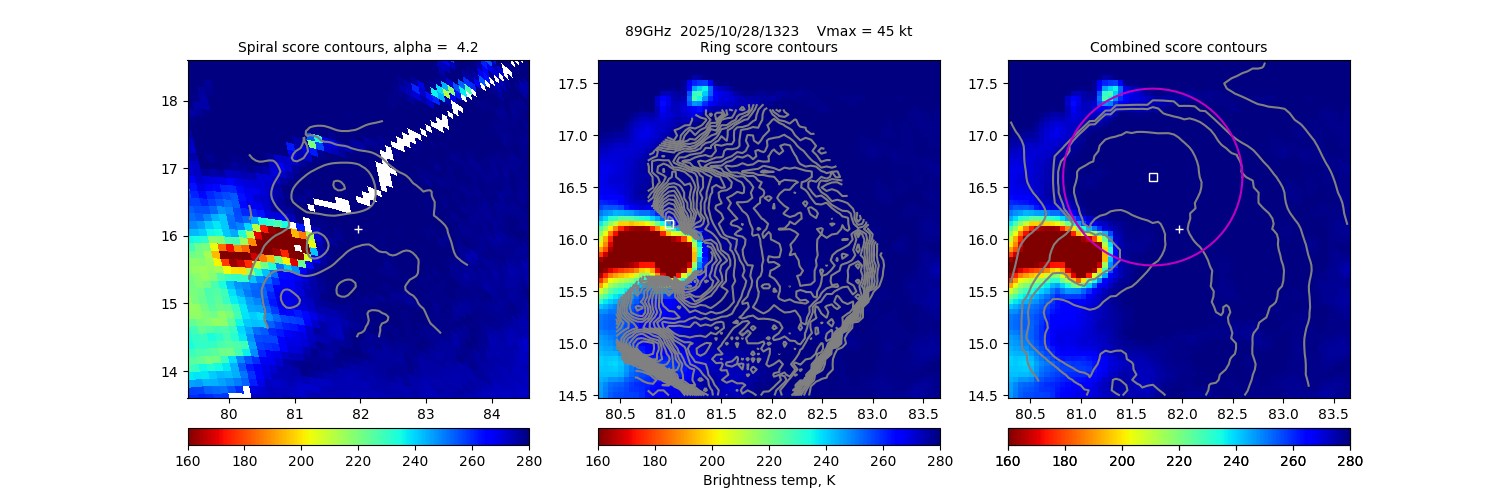

20251028 13:30:00 SSMISF16 89GHz 16.10 81.97 45.0 16.60 81.71 1.14 0.85 0.40 0.47 4.18 7.1 PNG
20251028 14:00:00 SSMISF16 89GHz 16.10 81.97 45.0 16.60 81.71 1.14 0.85 0.40 0.47 4.13 7.1 PNG
20251028 14:30:00 SSMISF16 89GHz 16.10 81.97 45.0 16.65 81.67 1.14 0.85 0.40 0.47 4.07 7.1 PNG
20251028 15:00:00 SSMISF16 89GHz 16.10 81.97 45.0 16.70 81.64 1.14 0.85 0.40 0.47 4.00 7.1 PNG
20251028 15:30:00 SSMISF16 89GHz 16.10 81.97 45.0 16.75 81.60 1.14 0.85 0.40 0.47 3.91 7.1 PNG
20251028 16:00:00 SSMISF16 89GHz 16.10 81.97 45.0 16.80 81.57 1.14 0.85 0.40 0.47 3.82 7.1 PNG
20251028 16:30:00 SSMISF16 89GHz 16.10 81.97 45.0 16.86 81.53 1.14 0.85 0.40 0.47 3.73 7.1 PNG
20251028 17:00:00 SSMISF16 89GHz 16.10 81.97 45.0 16.91 81.49 1.14 0.85 0.40 0.47 3.64 7.1 PNG
20251028 17:30:00 SSMISF16 89GHz 16.10 81.97 45.0 16.96 81.45 1.14 0.85 0.40 0.47 3.54 7.1 PNG
20251028 18:00:00 SSMISF16 89GHz 16.10 81.97 45.0 17.02 81.42 1.14 0.85 0.40 0.47 3.44 7.1 PNG
20251028 18:30:00 SSMISF16 89GHz 16.10 81.97 45.0 17.07 81.38 1.14 0.85 0.40 0.47 3.34 7.1 PNG
20251028 19:00:00 SSMISF16 89GHz 16.10 81.97 45.0 17.13 81.34 1.14 0.85 0.40 0.47 3.25 7.1 PNG
20251028 19:30:00 SSMISF16 89GHz 16.10 81.97 45.0 16.64 80.94 1.14 0.85 0.40 0.47 3.15 7.1 PNG
20251028 20:00:00 SSMISF16 89GHz 16.10 81.97 45.0 16.69 80.91 1.14 0.85 0.40 0.47 3.06 7.1 PNG
20251028 20:30:00 SSMISF16 89GHz 16.10 81.97 45.0 16.74 80.87 1.14 0.85 0.40 0.47 2.97 7.1 PNG
20251028 21:00:00 SSMISF16 89GHz 16.10 81.97 45.0 16.79 80.83 1.14 0.85 0.40 0.47 2.88 7.1 PNG
20251028 21:30:00 SSMISF16 89GHz 16.10 81.97 45.0 16.85 80.80 1.14 0.85 0.40 0.47 2.79 7.1 PNG
20251028 22:00:00 AMSR2 89GHz 16.46 81.00 40.0 16.26 81.57 0.81 0.85 0.28 0.99 5.89 7.6 PNG
20251028 22:30:00 AMSR2 89GHz 16.46 81.00 40.0 16.27 81.56 0.81 0.85 0.28 0.99 5.31 7.6 PNG
20251028 23:00:00 AMSR2 89GHz 16.46 81.00 40.0 16.32 81.52 0.81 0.85 0.28 0.99 5.14 7.6 PNG
20251028 23:30:00 AMSR2 89GHz 16.46 81.00 40.0 16.38 81.48 0.81 0.85 0.28 0.99 4.97 7.6 PNG
20251029 00:00:00 AMSR2 89GHz 16.46 81.00 40.0 16.44 81.44 0.81 0.85 0.28 0.99 4.79 7.6 PNG
20251029 00:30:00 AMSR2 89GHz 16.46 81.00 40.0 16.50 81.40 0.81 0.85 0.28 0.99 4.62 7.6 PNG
20251029 01:00:00 AMSR2 89GHz 16.46 81.00 40.0 16.56 81.37 0.81 0.85 0.28 0.99 4.45 7.6 PNG
20251029 01:30:00 AMSR2 89GHz 16.46 81.00 40.0 16.62 81.32 0.81 0.85 0.28 0.99 4.29 7.6 PNG
20251029 02:00:00 AMSR2 89GHz 16.46 81.00 40.0 16.68 81.28 0.81 0.85 0.28 0.99 4.12 7.6 PNG
20251029 02:30:00 SSMISF16 89GHz 17.30 81.20 35.0 18.65 81.20 1.18 1.40 0.42 0.42 4.01 4.9 PNG
20251029 03:00:00 SSMISF16 89GHz 17.30 81.20 35.0 18.35 80.64 1.18 1.40 0.42 0.42 3.92 4.9 PNG
20251029 03:30:00 METEOSAT Vis 17.44 81.13 35.0 19.34 80.50 0.71 0.30 N/A 0.52 6.69 0.0 PNG
20251029 04:00:00 METEOSAT Vis 17.50 81.10 35.0 19.40 80.47 0.71 0.50 N/A 0.52 6.70 0.0 PNG
20251029 04:30:00 METEOSAT Vis 17.57 81.06 35.0 19.52 80.69 0.87 0.05 N/A 0.44 5.46 0.0 PNG
20251029 05:00:00 METEOSAT Vis 17.64 81.02 35.0 19.59 80.58 0.44 0.35 N/A 0.81 10.83 0.0 PNG
20251029 05:30:00 SSMISF16 89GHz 17.30 81.20 35.0 18.98 81.01 1.18 1.40 0.42 0.42 3.52 4.9 PNG
20251029 06:00:00 SSMISF16 89GHz 17.30 81.20 35.0 19.05 80.98 1.18 1.40 0.42 0.42 3.43 4.9 PNG
20251029 06:30:00 METEOSAT SWIR 17.84 80.91 35.0 19.56 81.80 1.42 0.30 N/A 0.43 3.34 0.0 PNG
20251029 07:00:00 SSMISF16 89GHz 17.30 81.20 35.0 19.18 80.90 1.18 1.40 0.42 0.42 3.25 4.9 PNG
20251029 07:30:00 METEOSAT Vis 17.97 80.83 30.0 19.29 82.20 1.19 0.15 N/A 0.33 3.99 0.0 PNG

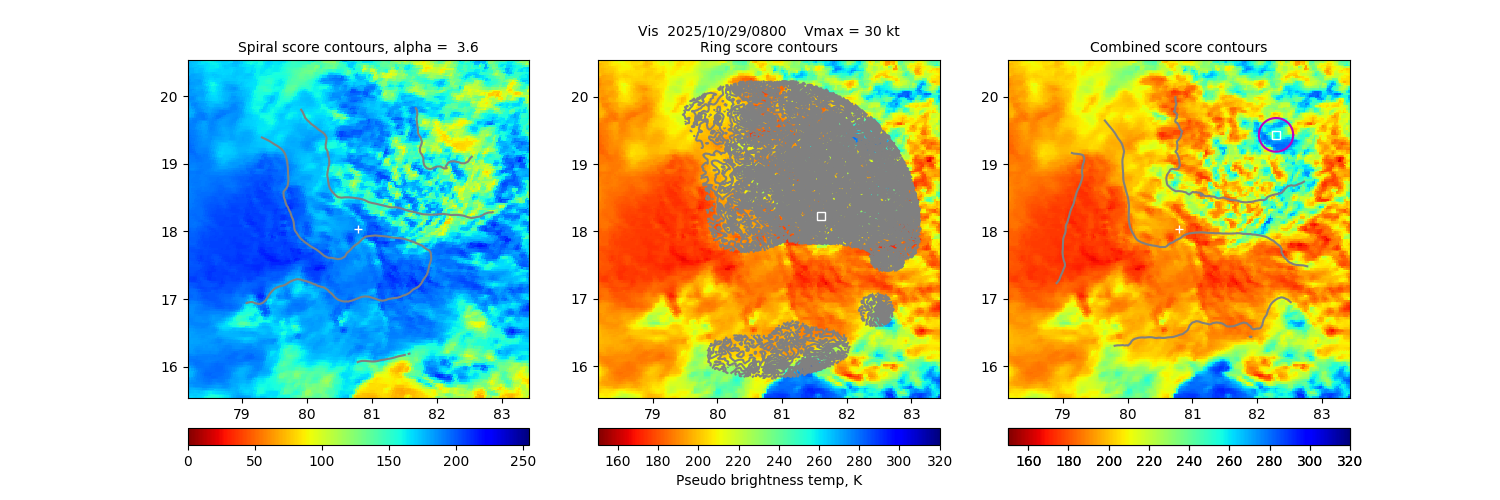

20251029 08:00:00 METEOSAT Vis 18.04 80.79 30.0 19.44 82.29 1.31 0.25 N/A 0.31 3.63 0.0 PNG
20251029 08:30:00 METEOSAT Vis 18.10 80.75 30.0 19.70 82.02 0.91 0.05 N/A 0.42 5.20 0.0 PNG
20251029 09:00:00 METEOSAT Vis 18.17 80.71 30.0 19.47 81.87 1.29 0.10 N/A 0.31 3.67 0.0 PNG
20251029 09:30:00 METEOSAT Vis 18.24 80.67 30.0 19.49 82.30 0.83 0.05 N/A 0.45 5.71 0.0 PNG
20251029 10:00:00 SSMISF16 89GHz 17.30 81.20 35.0 19.58 80.65 1.18 1.40 0.42 0.42 2.73 4.9 PNG
20251029 10:30:00 SSMISF16 89GHz 17.30 81.20 35.0 19.65 80.61 1.18 1.40 0.42 0.42 2.65 4.9 PNG
|
|
Key: - Date/Time: UTC time. If this observation is used in the track it is marked with a "*". If it is used for its own 30-minute window, it is put in bold. - Source/sensor: Satellite source of the analyzed image. - Vmax: Maximum winds listed in the forecast center analysis/forecast, *not* ARCHER. - ARCHER lat/lon: Coordinates of the ARCHER algorithm, valid at the time of the observation. If no center fix could be found, then it is "***". - Geo ref lat/lon: Coordinates of the ARCHER algorithm, valid at the time of the *nearest geo image*. - 50% cert. rad.: Radius of the circle (in degrees) that defines the area in which the ARCHER center of rotation is 50% certain. The lower the number, the more certain the position. - 95% cert. rad.: Radius of the circle (in degrees) that defines the area in which the ARCHER center of rotation is 95% certain. - Eye diam (deg): ARCHER-resolved eye diameter (in degrees). Green: robust, yellow: less certain, red: not robust. - % cert. of eye: Percent certainty that an eye exists in this image, determined by ARCHER. Currently only available for IR and 85-92 GHz imagery.
|
|
