Hurricane 05E
|
ARCHER-V2 Auto-positioning Information Advanced Dvorak Technique (ADT) Version 9.1 |
-------FORECAST----- ----ARCHER---- 50% cert 95% cert Eyewall Conf Alpha Eye
Date/Time(UTC) Source Sensor Lat Lon Vmax Lat Lon radius radius radius Score Score Prob .

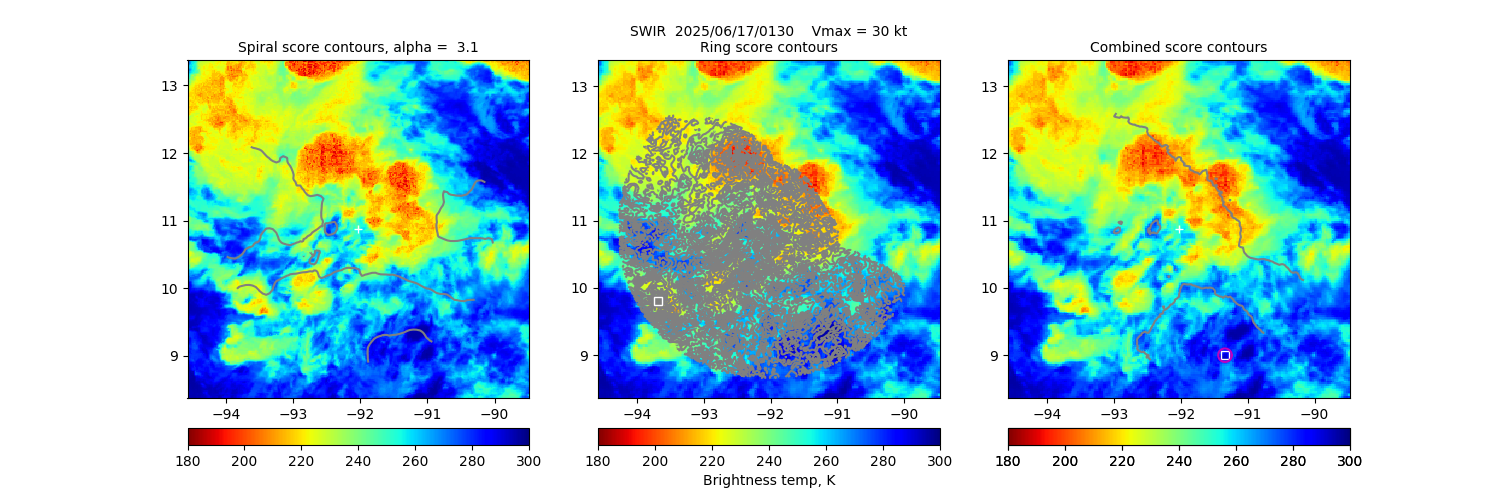

20250617 01:30:20 GOES-19 SWIR 10.88 -92.03 30.0 9.00 -91.34 1.55 0.10 N/A 0.40 3.06 0.0 PNG

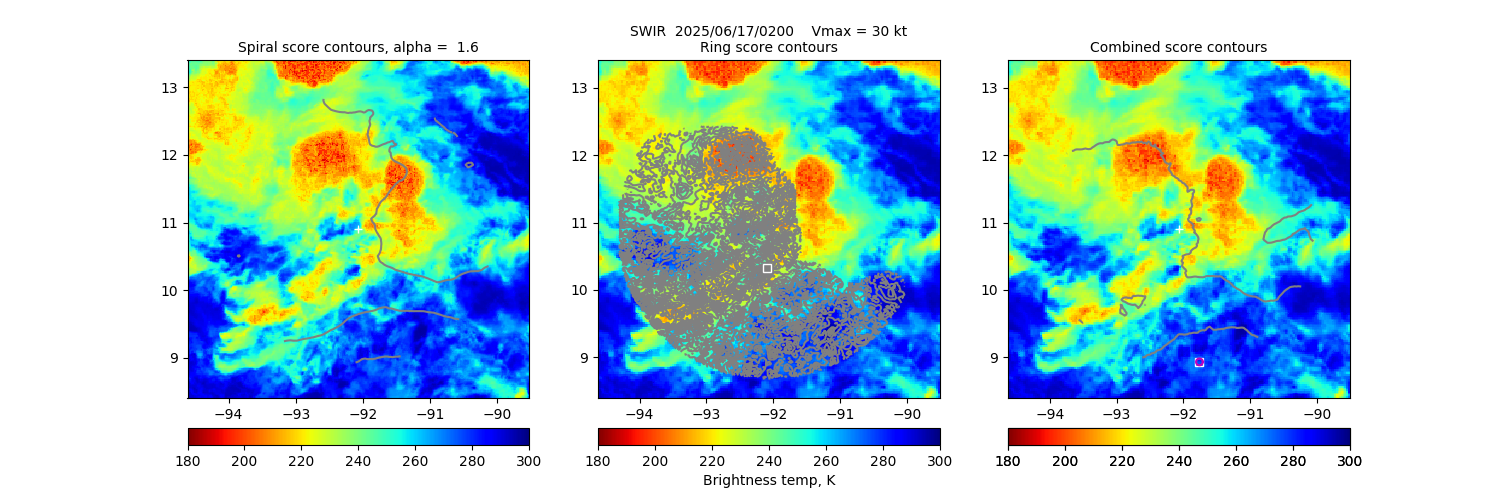

20250617 02:00:20 GOES-19 SWIR 10.90 -92.07 30.0 8.93 -91.76 2.89 0.05 N/A 0.23 1.64 0.0 PNG

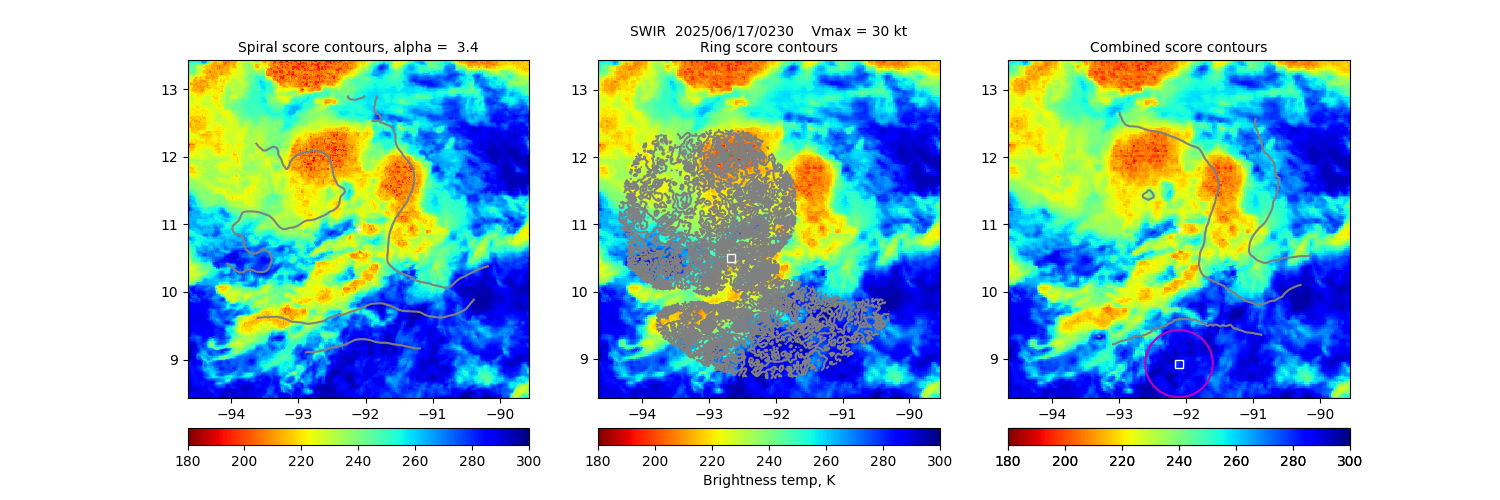

20250617 02:30:20 GOES-19 SWIR 10.93 -92.11 30.0 8.93 -92.11 1.40 0.50 N/A 0.43 3.38 0.0 PNG
20250617 03:00:20 GOES-19 IR 11.20 -92.60 30.0 11.50 -92.86 4.43 0.05 1.57 0.32 1.07 10.8 PNG

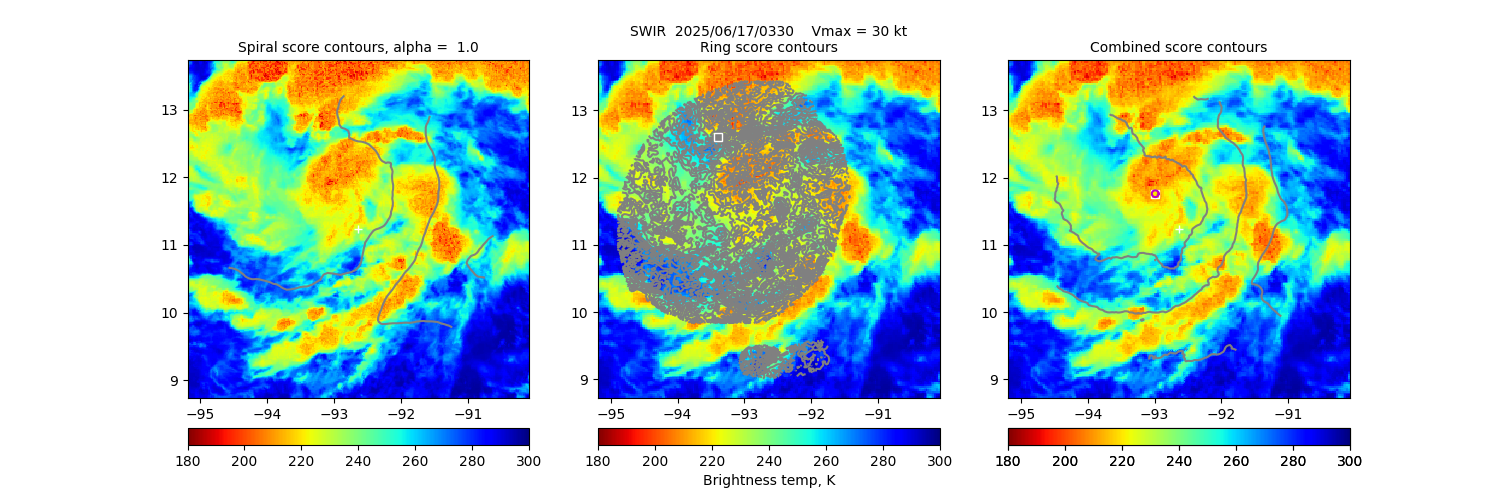

20250617 03:30:20 GOES-19 SWIR 11.23 -92.63 30.0 11.76 -92.99 4.89 0.05 N/A 0.15 0.97 0.0 PNG
20250617 04:00:20 GOES-19 SWIR 11.27 -92.67 30.0 11.67 -93.15 4.96 0.05 N/A 0.15 0.96 0.0 PNG
20250617 04:30:20 GOES-19 SWIR 11.30 -92.70 30.0 11.65 -92.93 2.22 0.15 N/A 0.29 2.14 0.0 PNG
20250617 05:00:20 GOES-19 SWIR 11.33 -92.74 30.0 11.63 -93.61 1.97 0.05 N/A 0.32 2.41 0.0 PNG
20250617 05:30:20 GOES-19 SWIR 11.37 -92.78 30.0 11.62 -93.44 1.84 0.05 N/A 0.34 2.58 0.0 PNG

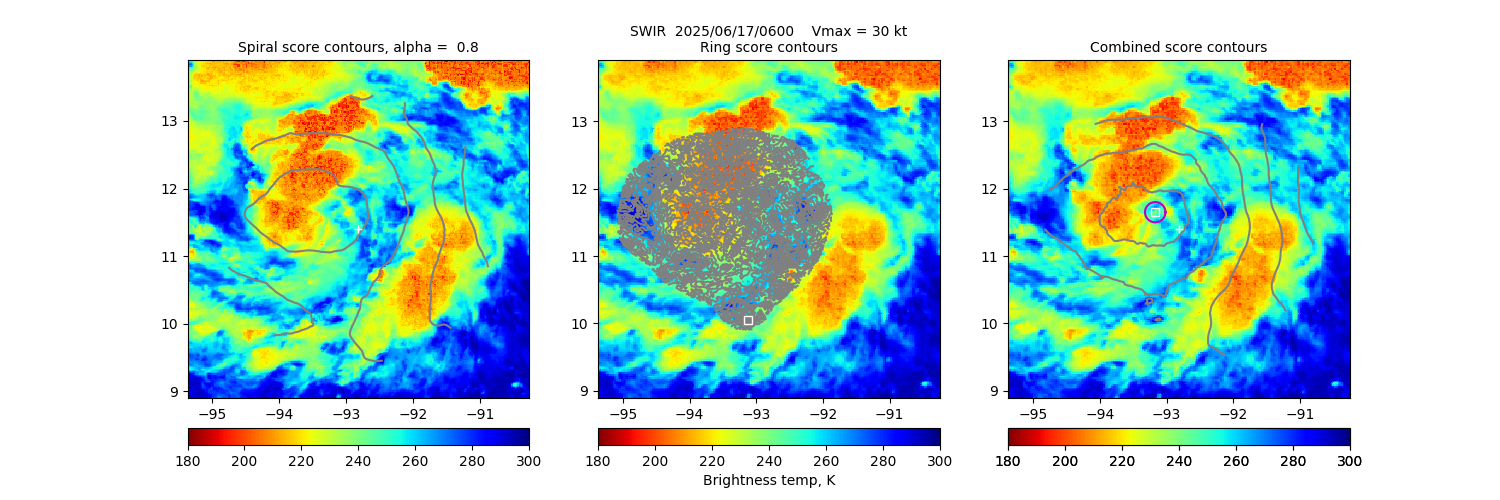

20250617 06:00:20 GOES-19 SWIR 11.40 -92.81 30.0 11.65 -93.17 5.63 0.15 N/A 0.14 0.84 0.0 PNG

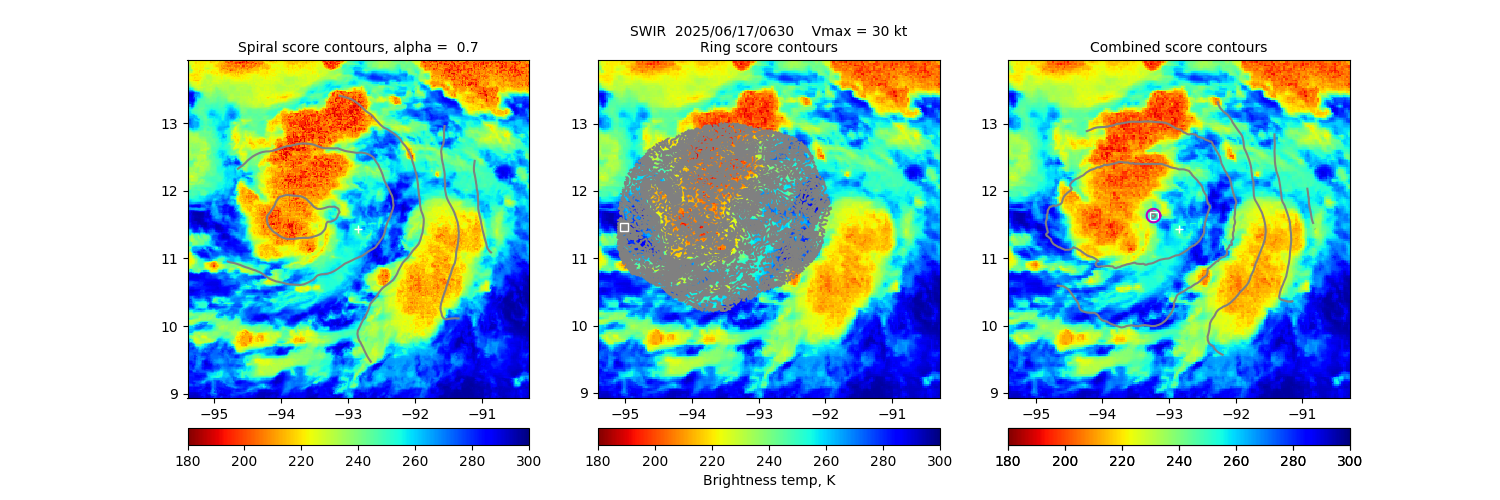

20250617 06:30:20 GOES-19 SWIR 11.43 -92.85 30.0 11.63 -93.23 7.10 0.10 N/A 0.12 0.67 0.0 PNG

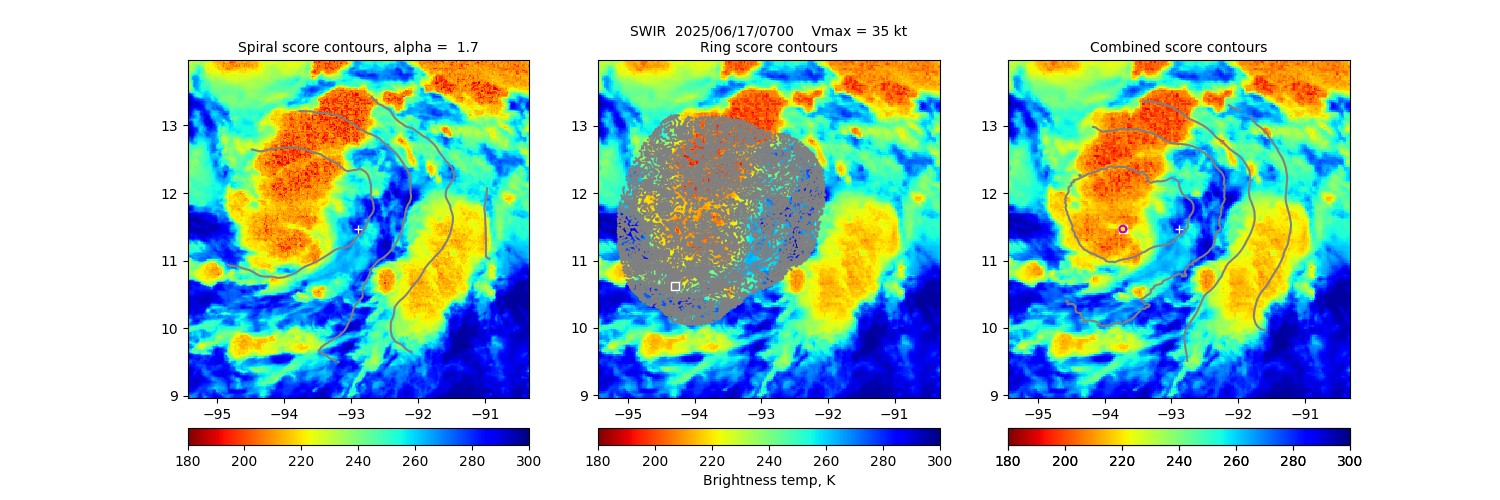

20250617 07:00:20 GOES-19 SWIR 11.47 -92.89 35.0 11.47 -93.73 2.74 0.05 N/A 0.24 1.73 0.0 PNG

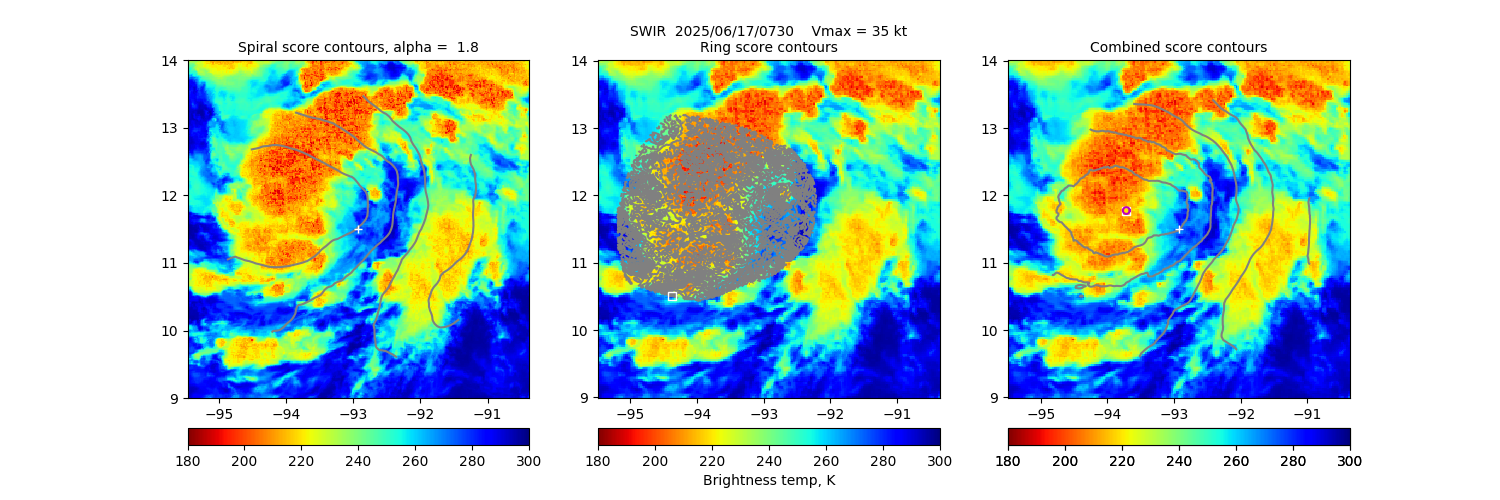

20250617 07:30:20 GOES-19 SWIR 11.50 -92.93 35.0 11.78 -93.72 2.63 0.05 N/A 0.25 1.80 0.0 PNG
20250617 08:00:20 GOES-19 SWIR 11.53 -92.97 35.0 11.71 -93.76 2.74 0.05 N/A 0.24 1.73 0.0 PNG
20250617 08:30:20 GOES-19 SWIR 11.57 -93.01 35.0 11.69 -93.80 5.05 0.05 N/A 0.15 0.94 0.0 PNG

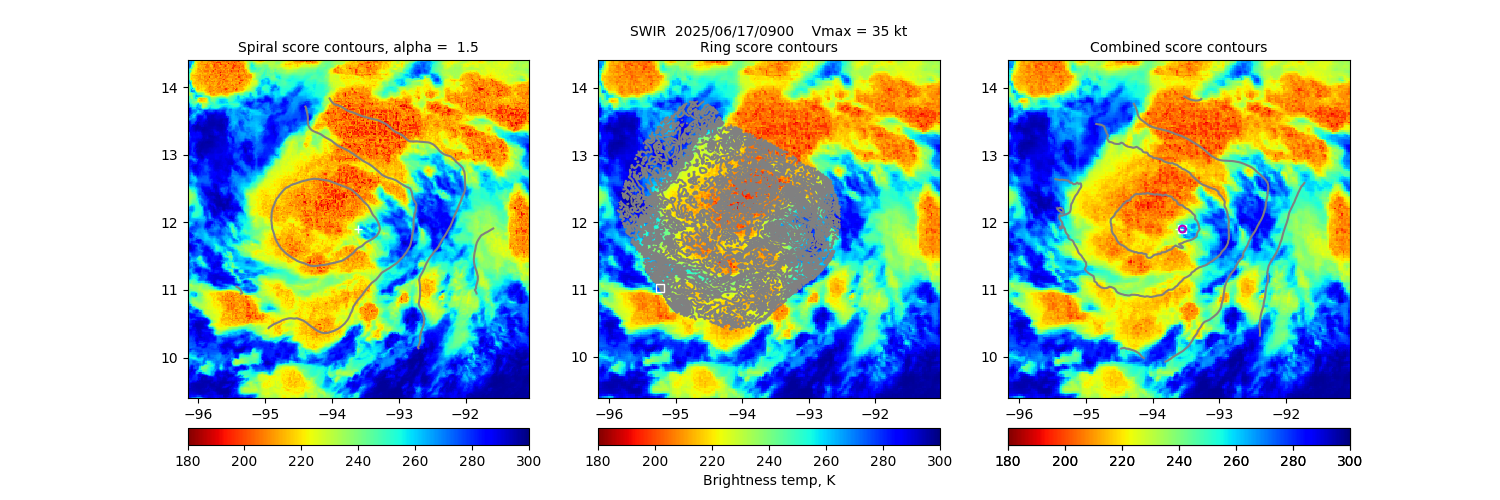

20250617 09:00:20 GOES-19 SWIR 11.90 -93.60 35.0 11.90 -93.55 3.09 0.05 N/A 0.22 1.54 0.0 PNG
20250617 09:30:20 GOES-19 SWIR 11.93 -93.65 35.0 11.96 -94.29 1.75 0.05 N/A 0.36 2.72 0.0 PNG

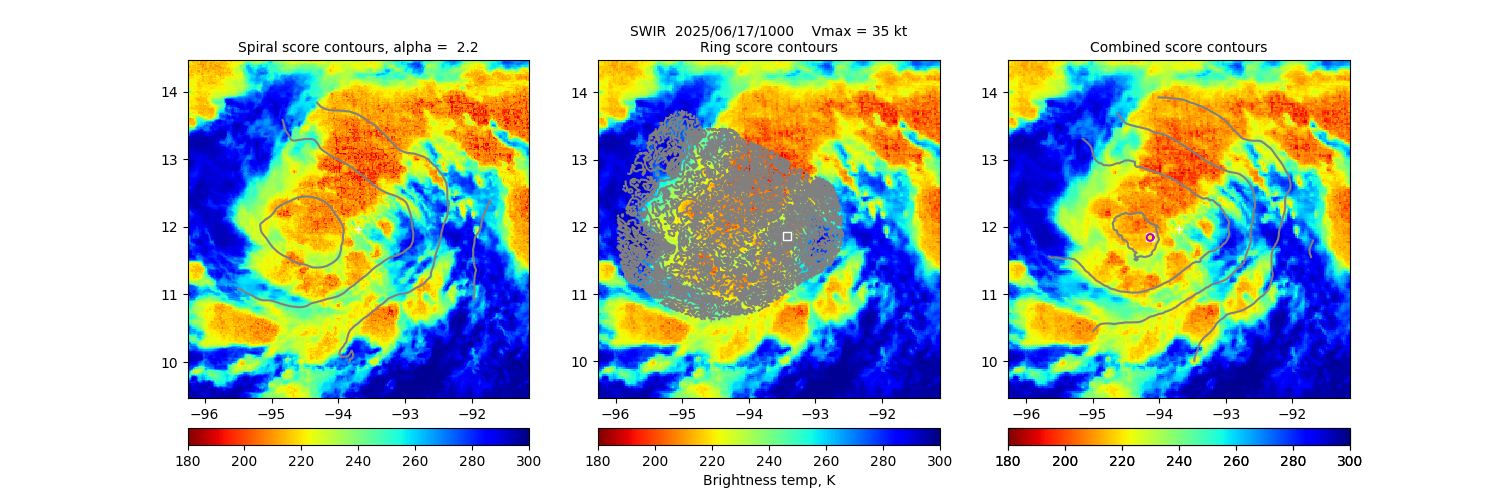

20250617 10:00:20 GOES-19 SWIR 11.97 -93.70 35.0 11.84 -94.14 2.11 0.05 N/A 0.30 2.25 0.0 PNG
20250617 10:30:20 GOES-19 SWIR 12.00 -93.75 35.0 11.98 -94.34 2.80 0.05 N/A 0.24 1.69 0.0 PNG
20250617 11:00:20 GOES-19 SWIR 12.03 -93.80 35.0 11.88 -94.49 1.29 0.10 N/A 0.47 3.67 0.0 PNG

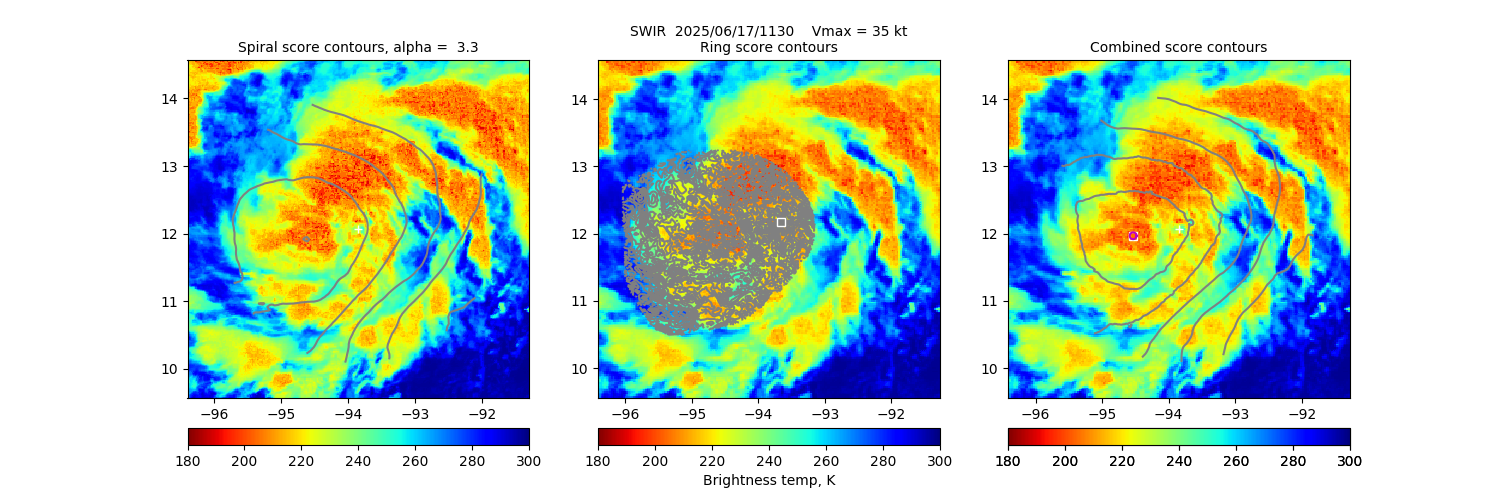

20250617 11:30:20 GOES-19 SWIR 12.07 -93.84 35.0 11.97 -94.53 1.43 0.05 N/A 0.42 3.31 0.0 PNG

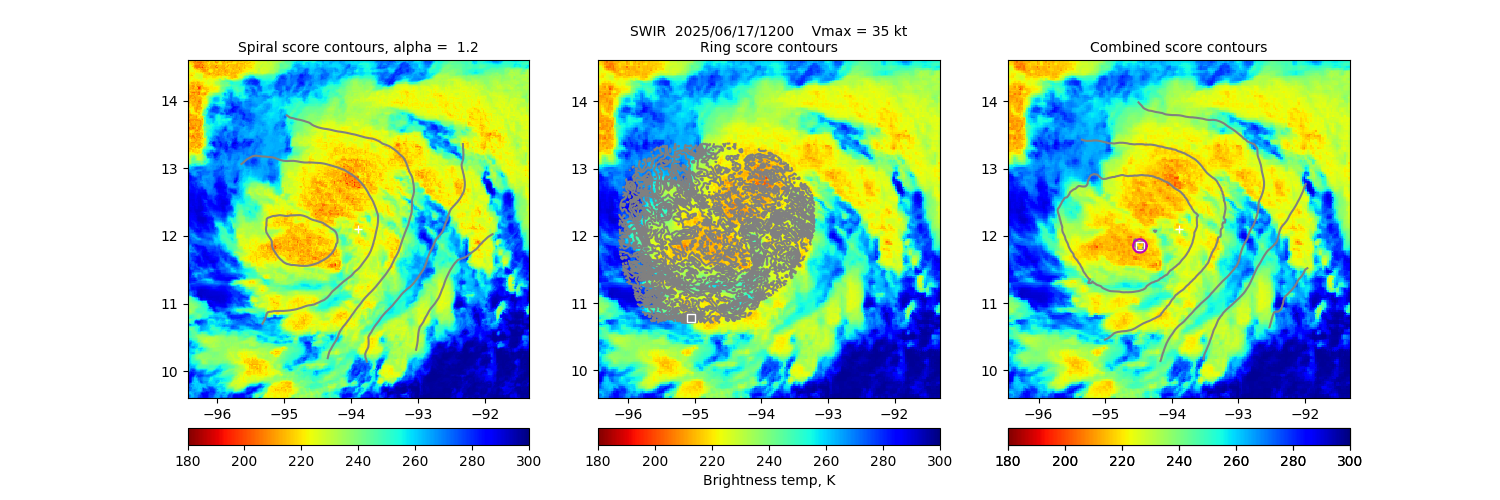

20250617 12:00:20 GOES-19 SWIR 12.10 -93.89 35.0 11.85 -94.48 3.87 0.10 N/A 0.18 1.23 0.0 PNG
20250617 12:30:20 AMSR2 89GHz 12.13 -93.94 35.0 12.13 -93.63 0.76 0.30 0.27 1.11 6.28 49.2 PNG
20250617 13:00:20 AMSR2 89GHz 12.13 -93.94 35.0 12.17 -93.67 0.76 0.30 0.27 1.11 4.74 49.2 PNG
20250617 13:30:20 AMSR2 89GHz 12.13 -93.94 35.0 12.21 -93.71 0.76 0.30 0.27 1.11 4.56 49.2 PNG
20250617 14:00:20 SSMISF17 89GHz 12.23 -94.07 40.0 12.18 -93.76 0.44 0.75 0.15 2.51 10.88 58.4 PNG
20250617 14:30:20 SSMISF17 89GHz 12.23 -94.07 40.0 12.22 -93.80 0.44 0.75 0.15 2.51 9.42 58.4 PNG
20250617 15:00:20 SSMISF17 89GHz 12.23 -94.07 40.0 12.25 -93.79 0.44 0.75 0.15 2.51 8.94 58.4 PNG
20250617 15:30:20 SSMISF17 89GHz 12.23 -94.07 40.0 12.28 -93.83 0.44 0.75 0.15 2.51 8.46 58.4 PNG
20250617 16:00:20 SSMISF17 89GHz 12.23 -94.07 40.0 12.31 -93.87 0.44 0.75 0.15 2.51 7.99 58.4 PNG

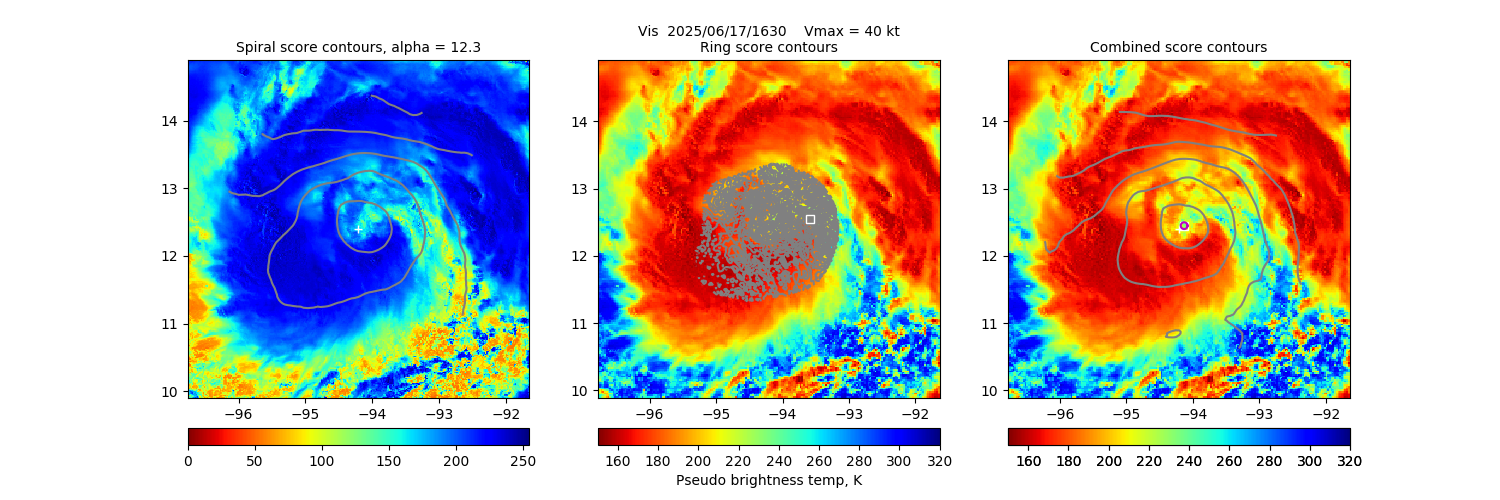

20250617 16:30:20 GOES-19 Vis 12.40 -94.21 40.0 12.45 -94.13 0.39 0.05 N/A 0.91 12.32 0.0 PNG

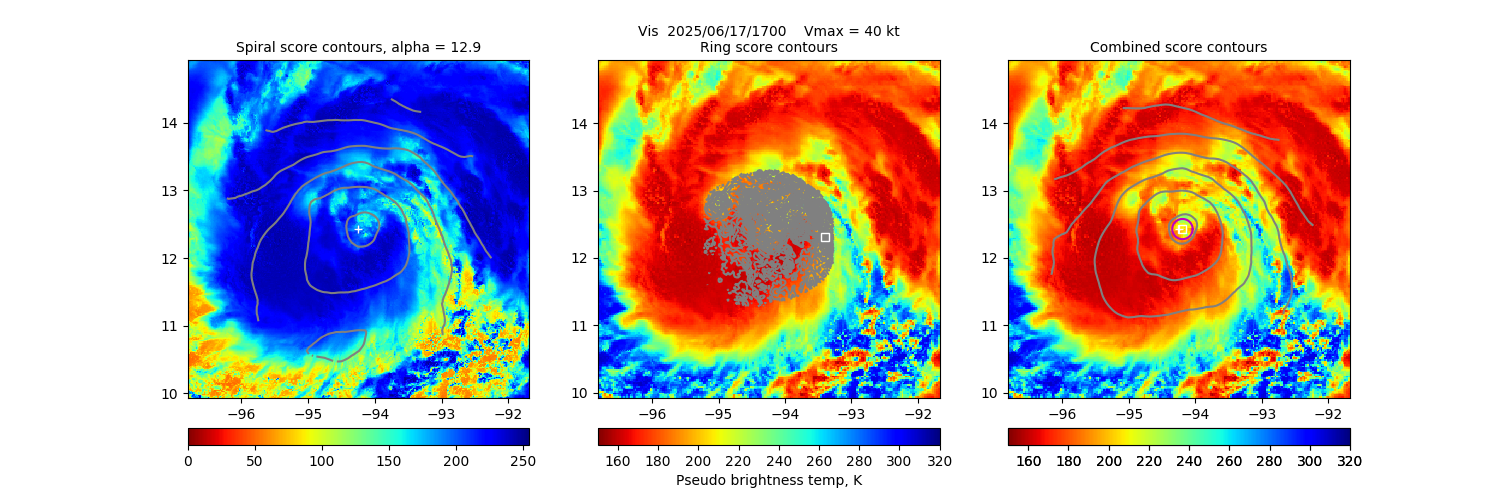

20250617 17:00:20 GOES-19 Vis 12.43 -94.25 40.0 12.43 -94.19 0.37 0.15 N/A 0.95 12.87 0.0 PNG
20250617 17:30:20 GOES-19 Vis 12.46 -94.29 40.0 12.53 -94.23 0.54 0.10 N/A 0.66 8.71 0.0 PNG
20250617 18:00:20 SSMISF17 89GHz 12.23 -94.07 40.0 12.42 -94.04 0.44 0.75 0.15 2.51 6.35 58.4 PNG

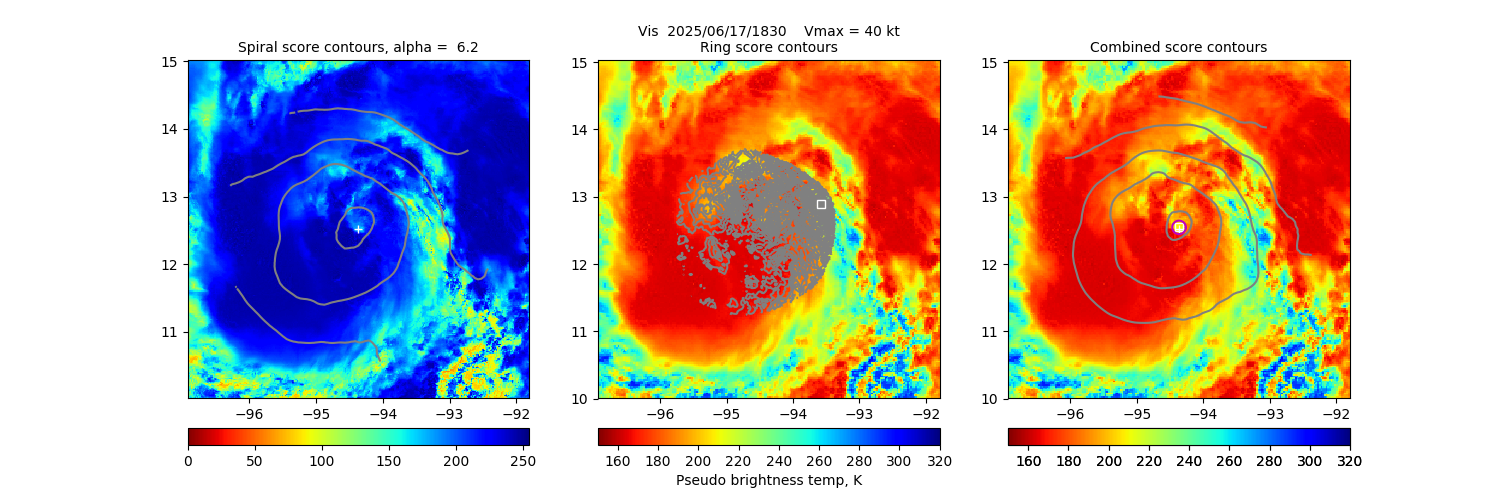

20250617 18:30:20 GOES-19 Vis 12.52 -94.37 40.0 12.54 -94.37 0.76 0.10 N/A 0.49 6.24 0.0 PNG

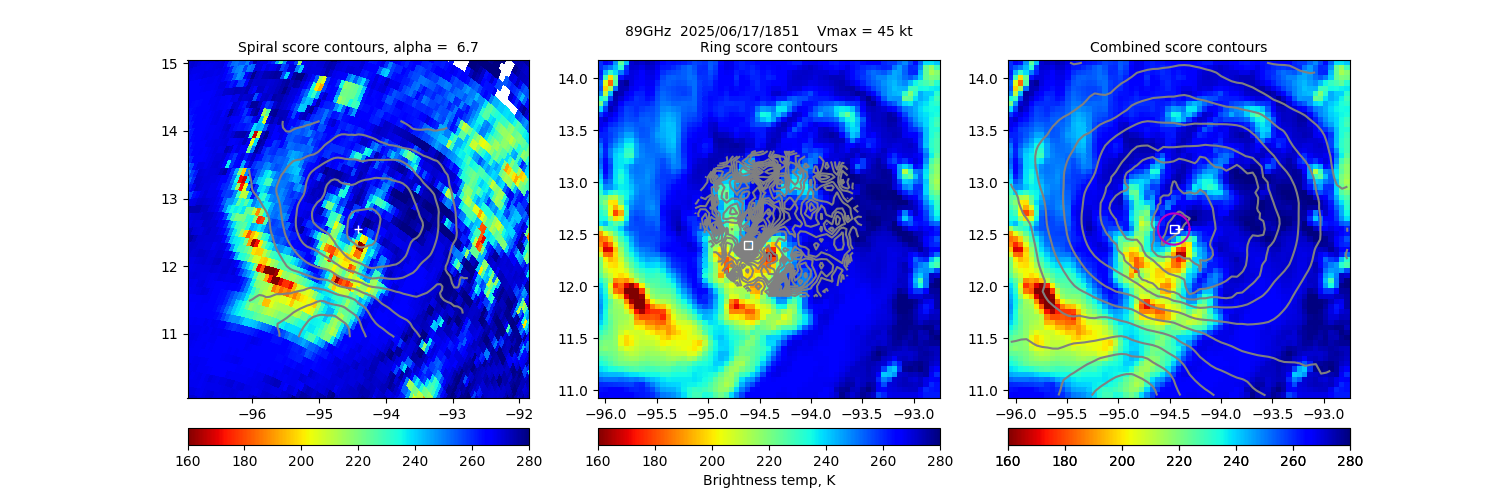

20250617 19:00:20 GMI 89GHz 12.55 -94.41 45.0 12.55 -94.46 0.71 0.15 0.25 1.23 6.67 53.1 PNG
20250617 19:30:20 GMI 89GHz 12.55 -94.41 45.0 12.56 -94.53 0.71 0.15 0.25 1.23 6.55 53.1 PNG
20250617 20:00:20 GMI 89GHz 12.55 -94.41 45.0 12.58 -94.58 0.71 0.15 0.25 1.23 6.40 53.1 PNG
20250617 20:30:20 GMI 89GHz 12.55 -94.41 45.0 12.61 -94.62 0.71 0.15 0.25 1.23 6.22 53.1 PNG
20250617 21:00:20 GMI 89GHz 12.55 -94.41 45.0 12.90 -94.45 0.71 0.15 0.25 1.23 6.02 53.1 PNG
20250617 21:30:20 GMI 89GHz 12.55 -94.41 45.0 12.94 -94.50 0.71 0.15 0.25 1.23 5.81 53.1 PNG
20250617 22:00:20 GMI 89GHz 12.55 -94.41 45.0 12.97 -94.54 0.71 0.15 0.25 1.23 5.60 53.1 PNG
20250617 22:30:20 GMI 89GHz 12.55 -94.41 45.0 13.00 -94.59 0.71 0.15 0.25 1.23 5.38 53.1 PNG
20250617 23:00:20 GMI 89GHz 12.55 -94.41 45.0 13.03 -94.64 0.71 0.15 0.25 1.23 5.17 53.1 PNG
20250617 23:30:20 GMI 89GHz 12.55 -94.41 45.0 13.05 -94.68 0.71 0.15 0.25 1.23 4.96 53.1 PNG
20250618 00:00:20 GMI 89GHz 12.55 -94.41 45.0 13.08 -94.72 0.71 0.15 0.25 1.23 4.76 53.1 PNG

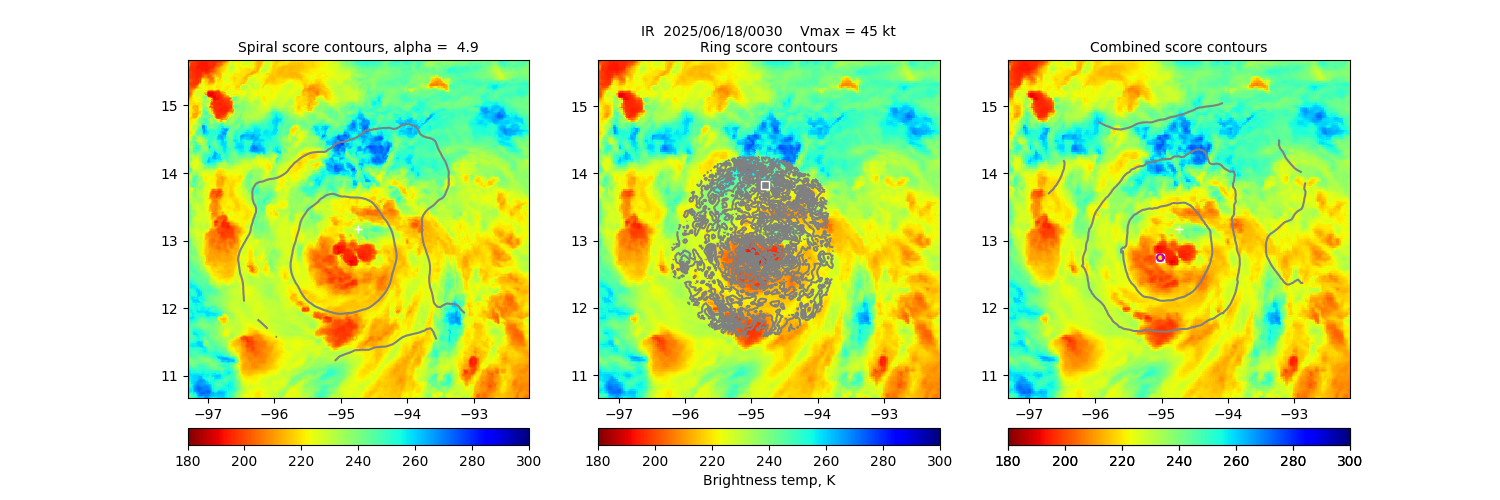

20250618 00:30:20 GOES-19 IR 13.17 -94.74 45.0 12.75 -95.02 0.97 0.05 0.34 0.70 4.89 76.3 PNG

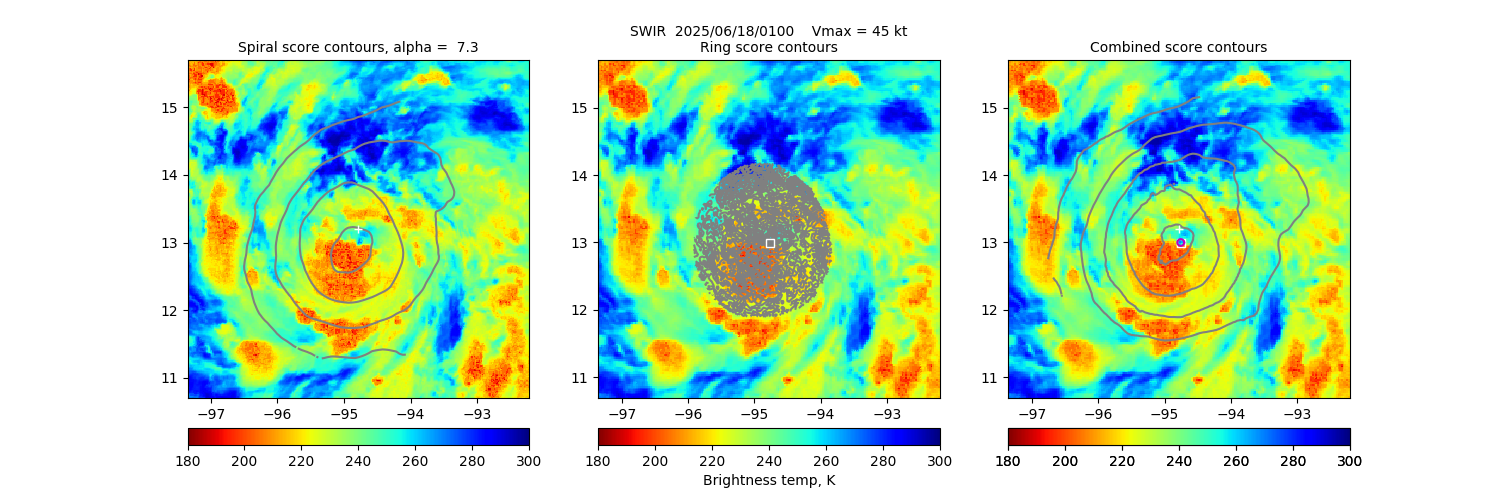

20250618 01:00:20 GOES-19 SWIR 13.20 -94.78 45.0 13.00 -94.76 0.65 0.05 N/A 0.88 7.29 0.0 PNG
20250618 01:30:20 GMI 89GHz 12.55 -94.41 45.0 13.13 -94.86 0.71 0.15 0.25 1.23 4.20 53.1 PNG
20250618 02:00:20 GOES-19 SWIR 13.24 -94.87 50.0 12.77 -94.59 1.15 0.05 N/A 0.52 4.14 0.0 PNG

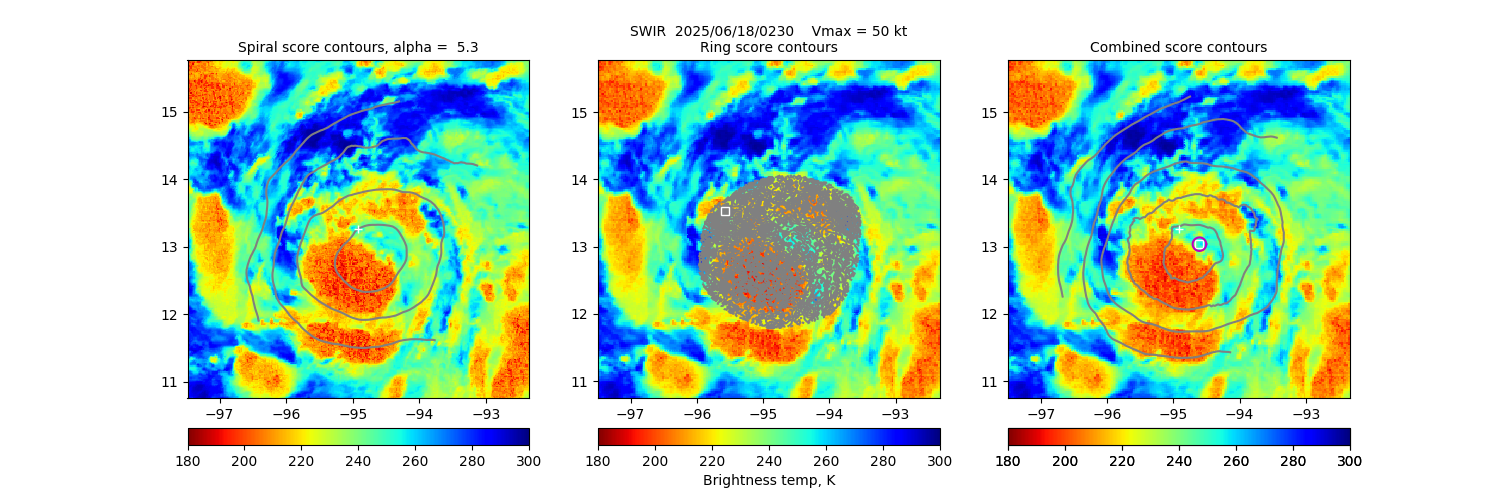

20250618 02:30:20 GOES-19 SWIR 13.26 -94.91 50.0 13.04 -94.61 0.89 0.10 N/A 0.66 5.33 0.0 PNG

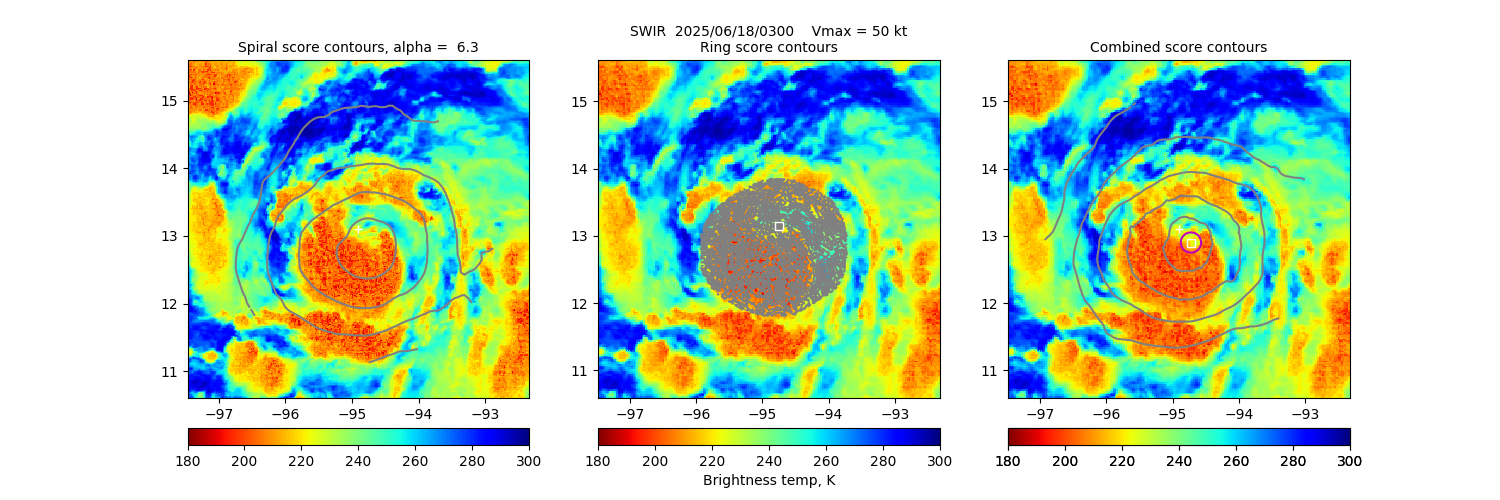

20250618 03:00:20 GOES-19 SWIR 13.10 -94.90 50.0 12.90 -94.72 0.75 0.15 N/A 0.77 6.33 0.0 PNG

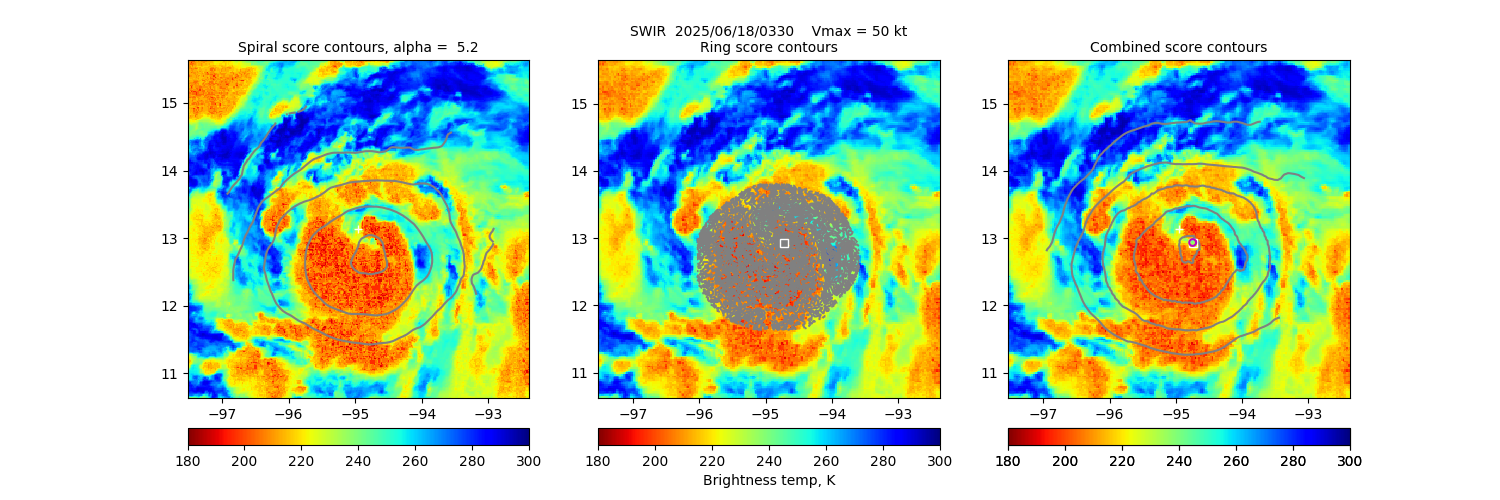

20250618 03:30:20 GOES-19 SWIR 13.13 -94.95 50.0 12.93 -94.75 0.91 0.05 N/A 0.64 5.21 0.0 PNG
20250618 04:00:20 GOES-19 SWIR 13.17 -95.00 50.0 12.97 -94.95 0.96 0.05 N/A 0.61 4.97 0.0 PNG
20250618 04:30:20 GOES-19 SWIR 13.20 -95.05 50.0 12.85 -94.87 0.62 0.05 N/A 0.92 7.62 0.0 PNG

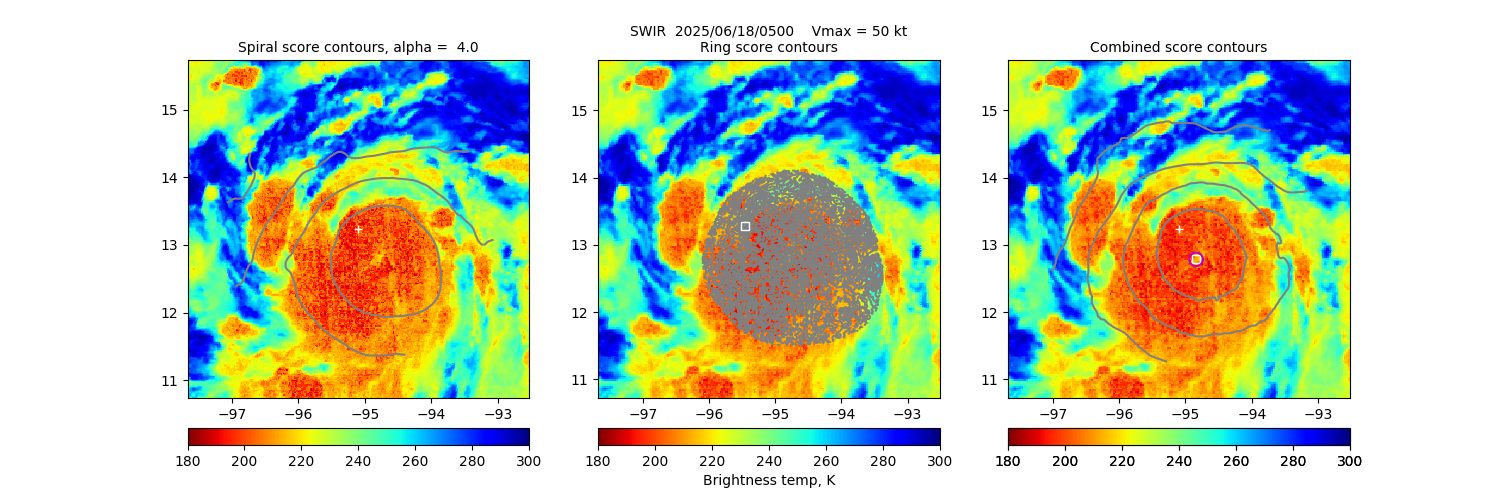

20250618 05:00:20 GOES-19 SWIR 13.23 -95.10 50.0 12.78 -94.84 1.19 0.10 N/A 0.50 3.98 0.0 PNG
20250618 05:30:20 GOES-19 IR 13.27 -95.15 50.0 12.87 -95.04 1.46 0.05 0.52 0.54 3.26 6.2 PNG
20250618 06:00:20 GOES-19 SWIR 13.30 -95.19 50.0 12.90 -94.73 1.38 0.05 N/A 0.44 3.43 0.0 PNG
20250618 06:30:20 GMI 89GHz 12.55 -94.41 45.0 13.32 -95.28 0.71 0.15 0.25 1.23 2.82 53.1 PNG
20250618 07:00:20 SSMISF18 89GHz 13.04 -94.55 45.0 13.45 -95.17 1.10 0.20 0.39 0.51 2.71 4.3 PNG
20250618 07:30:20 SSMISF18 89GHz 13.04 -94.55 45.0 13.49 -95.22 1.10 0.20 0.39 0.51 2.63 4.3 PNG
20250618 08:00:20 SSMISF18 89GHz 13.04 -94.55 45.0 13.52 -95.26 1.10 0.20 0.39 0.51 2.55 4.3 PNG
20250618 08:30:20 SSMISF18 89GHz 13.04 -94.55 45.0 13.56 -95.30 1.10 0.20 0.39 0.51 2.47 4.3 PNG
20250618 09:00:20 SSMISF18 89GHz 13.04 -94.55 45.0 13.39 -95.30 1.10 0.20 0.39 0.51 2.40 4.3 PNG
20250618 09:30:20 SSMISF18 89GHz 13.04 -94.55 45.0 13.42 -95.35 1.10 0.20 0.39 0.51 2.33 4.3 PNG
20250618 10:00:20 SSMISF18 89GHz 13.04 -94.55 45.0 13.46 -95.40 1.10 0.20 0.39 0.51 2.26 4.3 PNG
20250618 10:30:20 GOES-19 IR 13.40 -95.55 55.0 13.00 -95.86 9.49 0.05 3.36 0.08 0.50 1.8 PNG

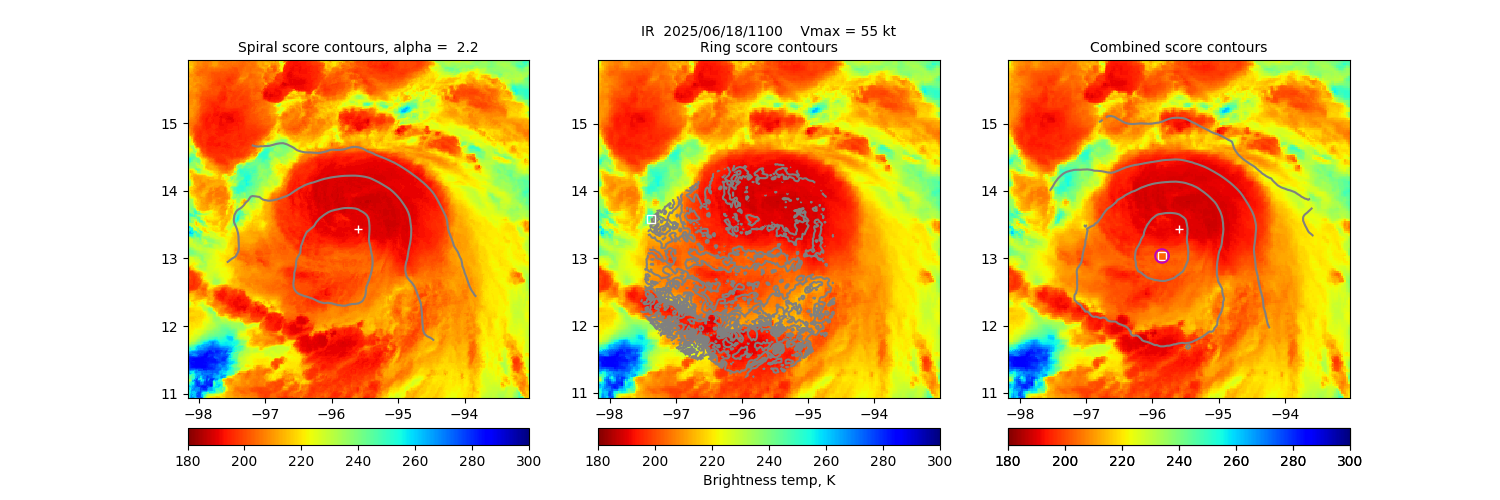

20250618 11:00:20 GOES-19 IR 13.43 -95.60 55.0 13.03 -95.85 2.15 0.10 0.76 0.43 2.21 7.5 PNG

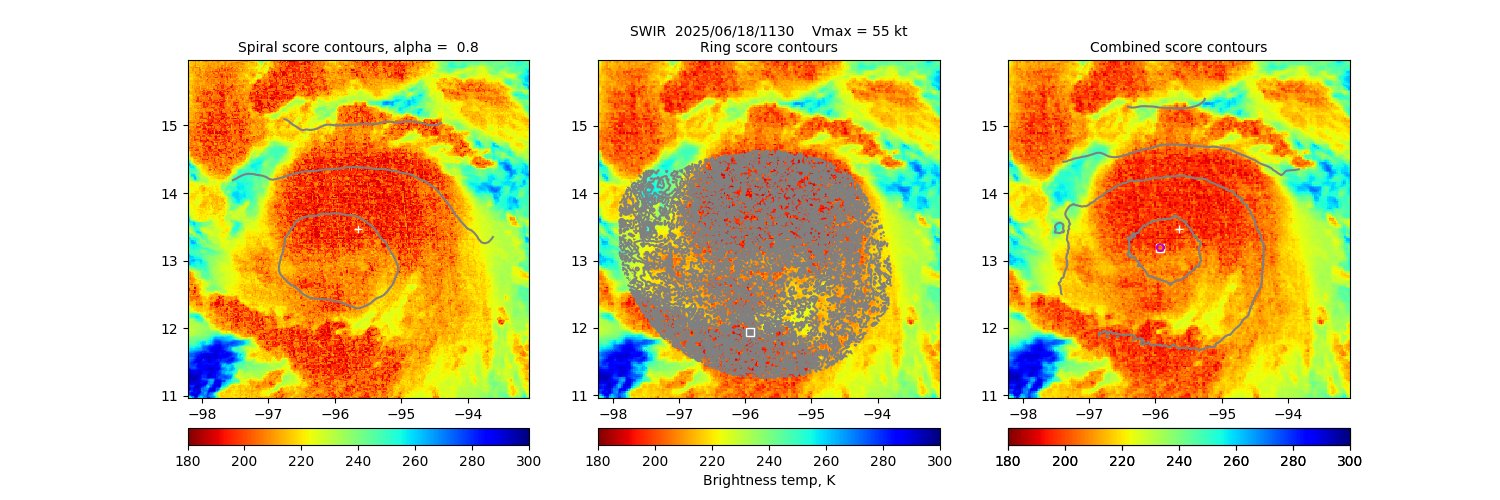

20250618 11:30:20 GOES-19 SWIR 13.47 -95.64 55.0 13.19 -95.93 6.20 0.05 N/A 0.13 0.76 0.0 PNG
20250618 12:00:20 GOES-19 SWIR 13.50 -95.69 55.0 13.38 -95.72 5.93 0.05 N/A 0.13 0.80 0.0 PNG

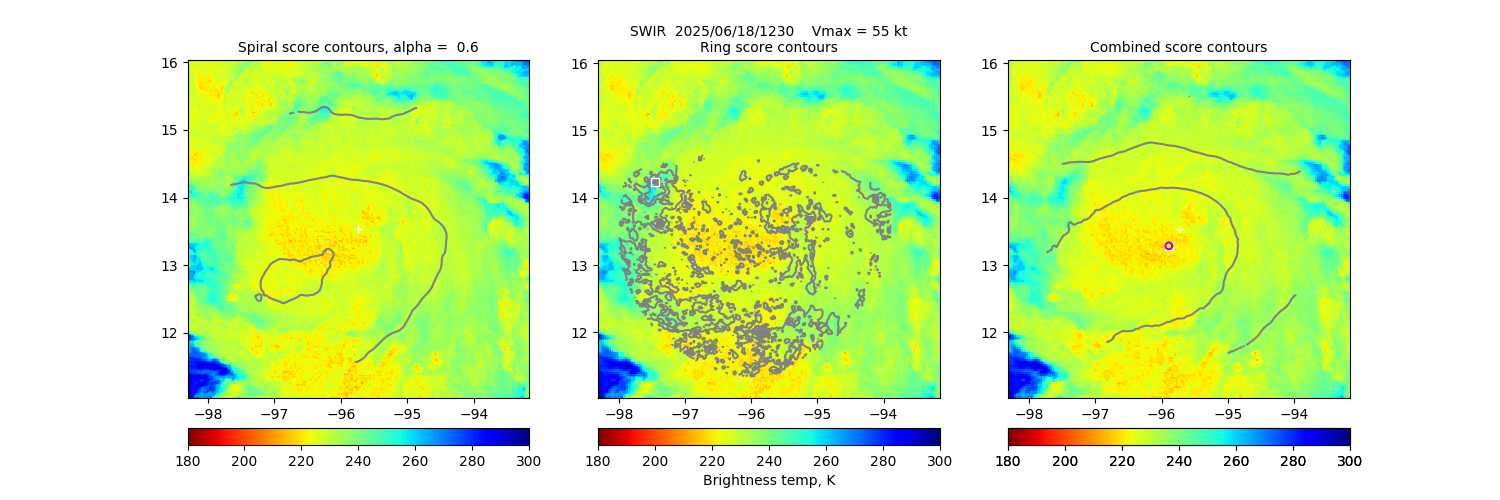

20250618 12:30:20 GOES-19 SWIR 13.53 -95.74 55.0 13.28 -95.89 8.02 0.05 N/A 0.11 0.59 0.0 PNG

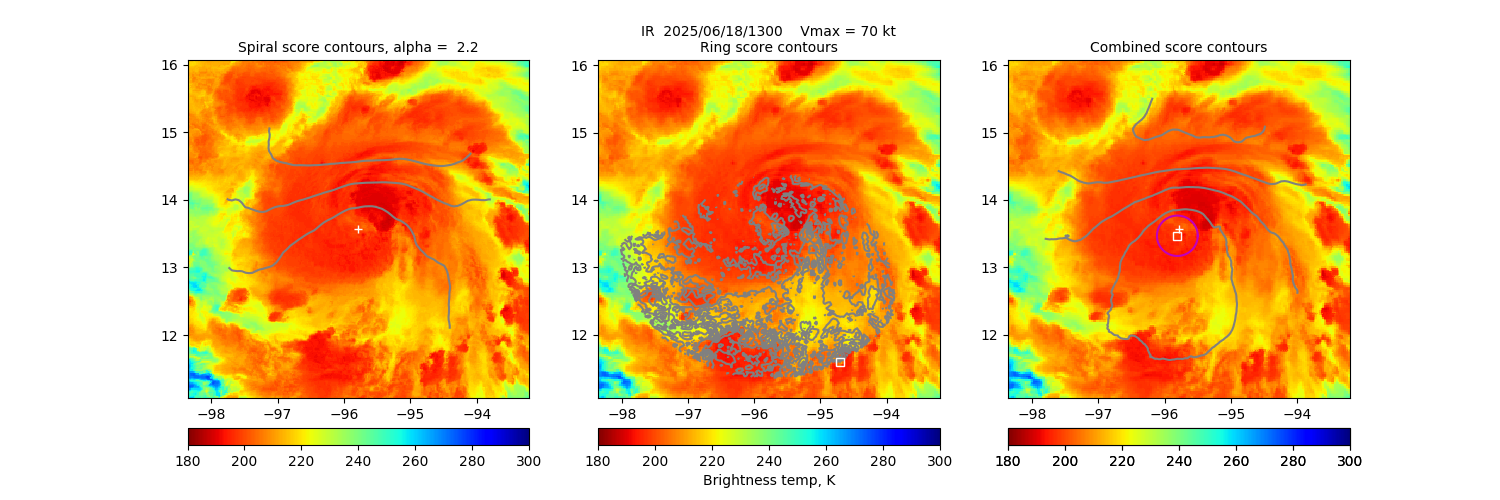

20250618 13:00:20 GOES-19 IR 13.57 -95.78 70.0 13.47 -95.81 2.19 0.30 0.77 0.27 2.17 6.3 PNG
20250618 13:30:20 SSMISF17 89GHz 13.60 -95.83 70.0 13.55 -95.83 0.51 0.15 0.18 1.52 9.39 60.8 PNG
20250618 14:00:20 SSMISF17 89GHz 13.60 -95.83 70.0 13.57 -95.86 0.51 0.15 0.18 1.52 8.48 60.8 PNG
20250618 14:30:20 SSMISF17 89GHz 13.60 -95.83 70.0 13.61 -95.90 0.51 0.15 0.18 1.52 8.11 60.8 PNG
20250618 15:00:20 SSMISF17 89GHz 13.60 -95.83 70.0 13.85 -96.00 0.51 0.15 0.18 1.52 7.73 60.8 PNG
20250618 15:30:20 SSMISF17 89GHz 13.60 -95.83 70.0 13.89 -96.05 0.51 0.15 0.18 1.52 7.36 60.8 PNG
20250618 16:00:20 GOES-19 Vis 14.00 -96.10 70.0 14.10 -96.10 0.53 0.05 N/A 0.55 8.94 0.0 PNG
20250618 16:30:20 GOES-19 Vis 14.04 -96.15 70.0 14.14 -96.15 0.66 0.10 N/A 0.44 7.24 0.0 PNG

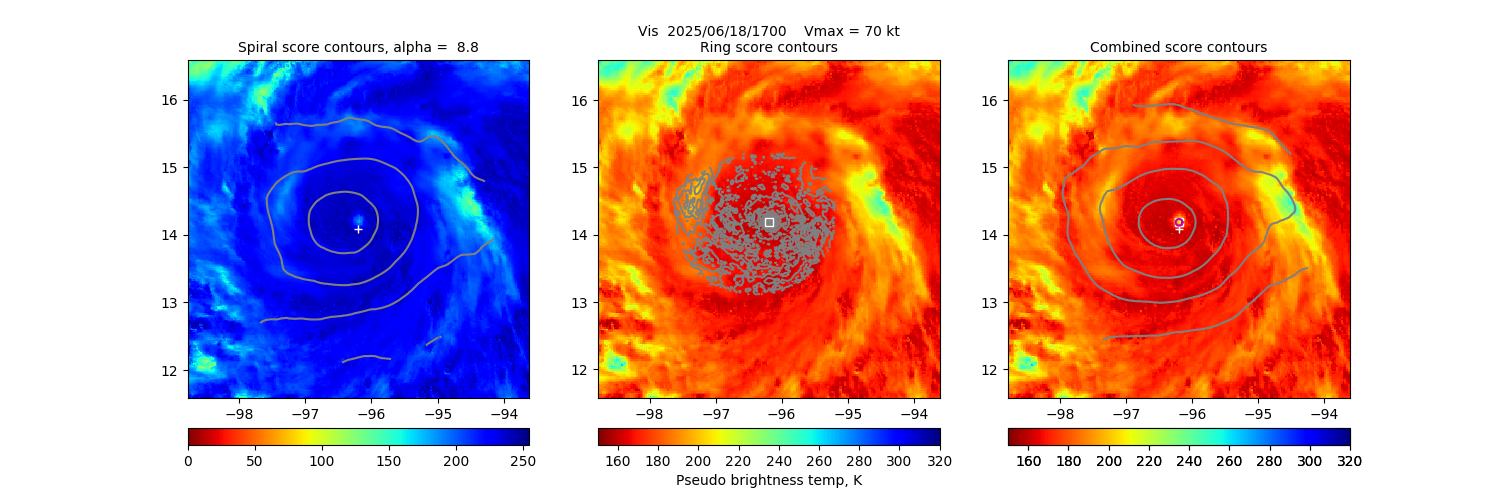

20250618 17:00:20 GOES-19 Vis 14.08 -96.20 70.0 14.18 -96.20 0.54 0.05 N/A 0.55 8.83 0.0 PNG
20250618 17:30:20 GOES-19 Vis 14.13 -96.24 70.0 14.20 -96.27 0.55 0.10 N/A 0.54 8.67 0.0 PNG
20250618 18:00:20 GOES-19 Vis 14.17 -96.29 70.0 14.22 -96.29 0.56 0.05 N/A 0.52 8.50 0.0 PNG
20250618 18:30:20 GOES-19 Vis 14.20 -96.34 70.0 14.25 -96.34 0.54 0.05 N/A 0.55 8.81 0.0 PNG
20250618 19:00:20 GOES-19 SWIR 14.24 -96.38 70.0 14.24 -96.25 0.81 0.05 N/A 0.56 5.83 0.0 PNG
20250618 19:30:20 GOES-19 SWIR 14.28 -96.43 90.0 14.30 -96.25 0.41 0.05 N/A 0.83 11.51 0.0 PNG
20250618 20:00:20 GOES-19 SWIR 14.31 -96.47 90.0 14.41 -96.21 0.40 0.05 N/A 0.86 11.91 0.0 PNG
20250618 20:30:20 GOES-19 SWIR 14.34 -96.51 90.0 14.49 -96.36 0.46 0.05 N/A 0.74 10.34 0.0 PNG
20250618 21:00:20 GOES-19 SWIR 14.50 -96.50 90.0 14.50 -96.37 0.35 0.05 N/A 0.96 13.43 0.0 PNG

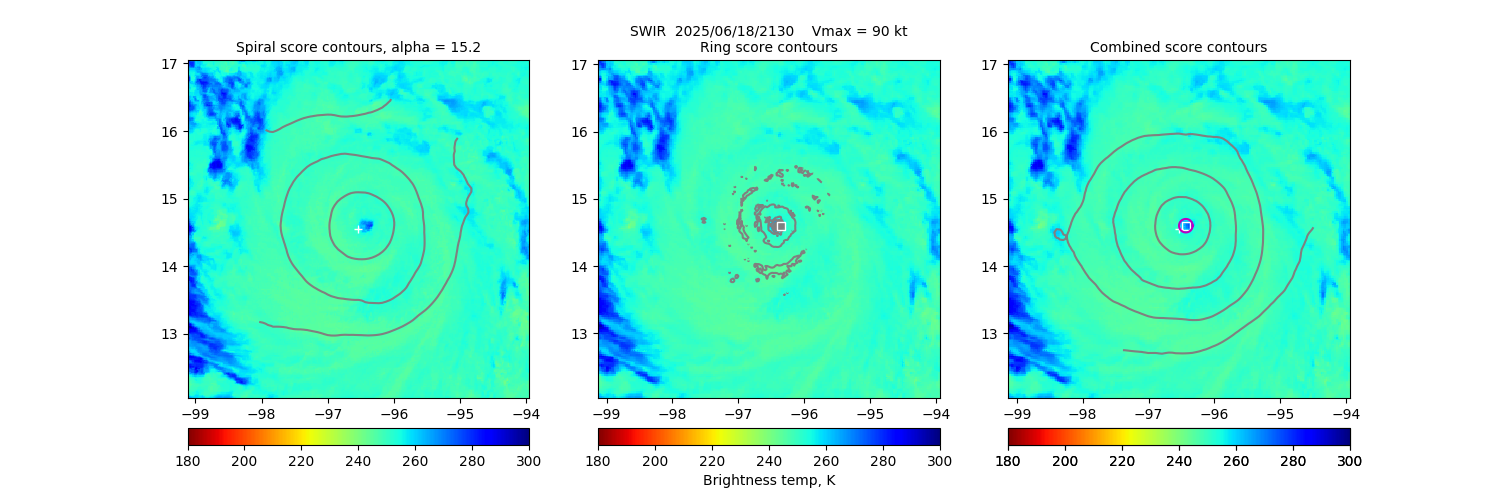

20250618 21:30:20 GOES-19 SWIR 14.55 -96.54 90.0 14.60 -96.43 0.31 0.10 N/A 1.09 15.17 0.0 PNG

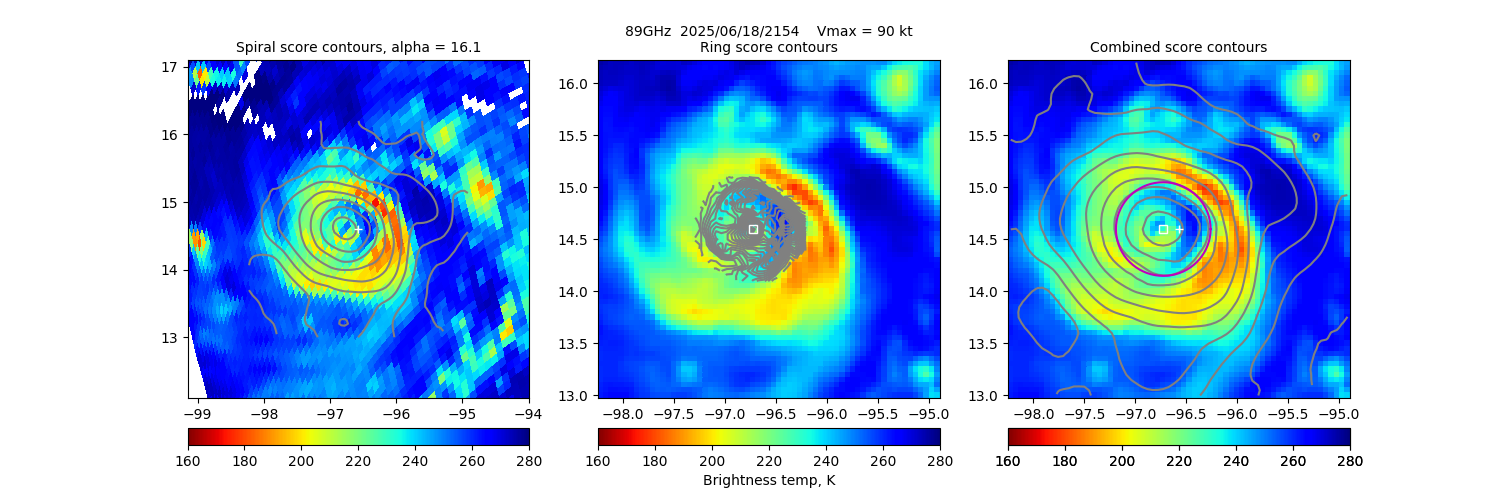

20250618 22:00:20 SSMISF18 89GHz 14.60 -96.57 90.0 14.60 -96.73 0.30 0.45 0.10 4.04 16.08 100.0 PNG
20250618 22:30:20 SSMISF18 89GHz 14.60 -96.57 90.0 14.66 -96.79 0.30 0.45 0.10 4.04 15.49 100.0 PNG

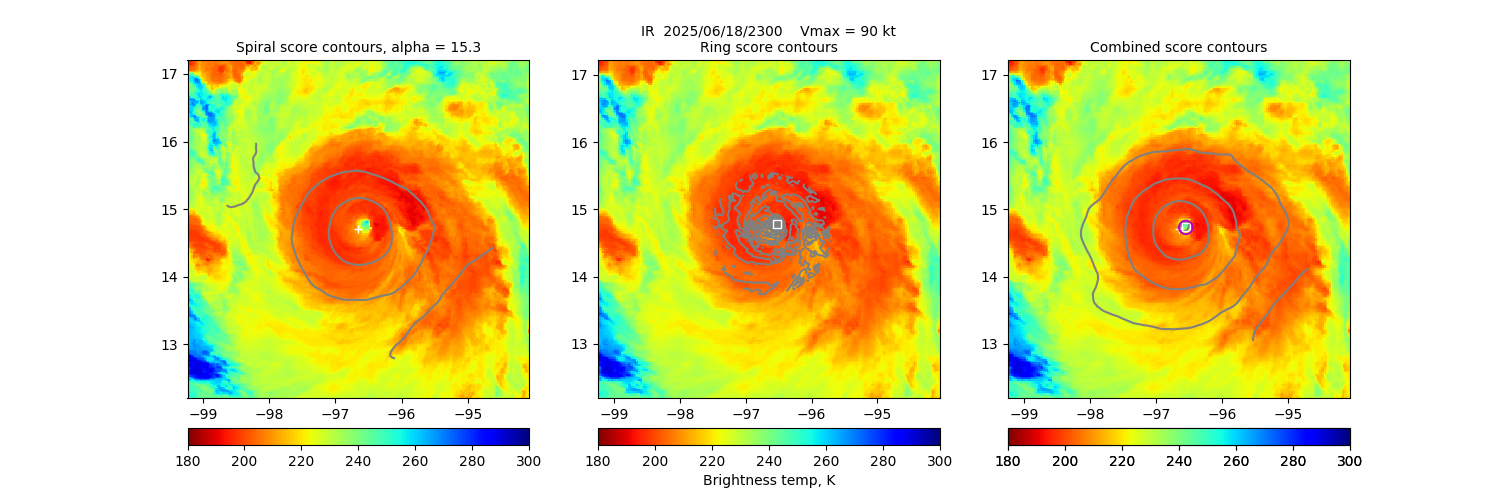

20250618 23:00:20 GOES-19 IR 14.71 -96.65 90.0 14.73 -96.55 0.31 0.10 0.11 1.45 15.34 100.0 PNG
20250618 23:30:20 GOES-19 IR 14.76 -96.69 90.0 14.81 -96.59 0.33 0.10 0.12 1.33 14.24 100.0 PNG
20250619 00:00:20 GOES-19 SWIR 14.81 -96.74 90.0 14.86 -96.66 0.33 0.05 N/A 1.04 14.55 0.0 PNG

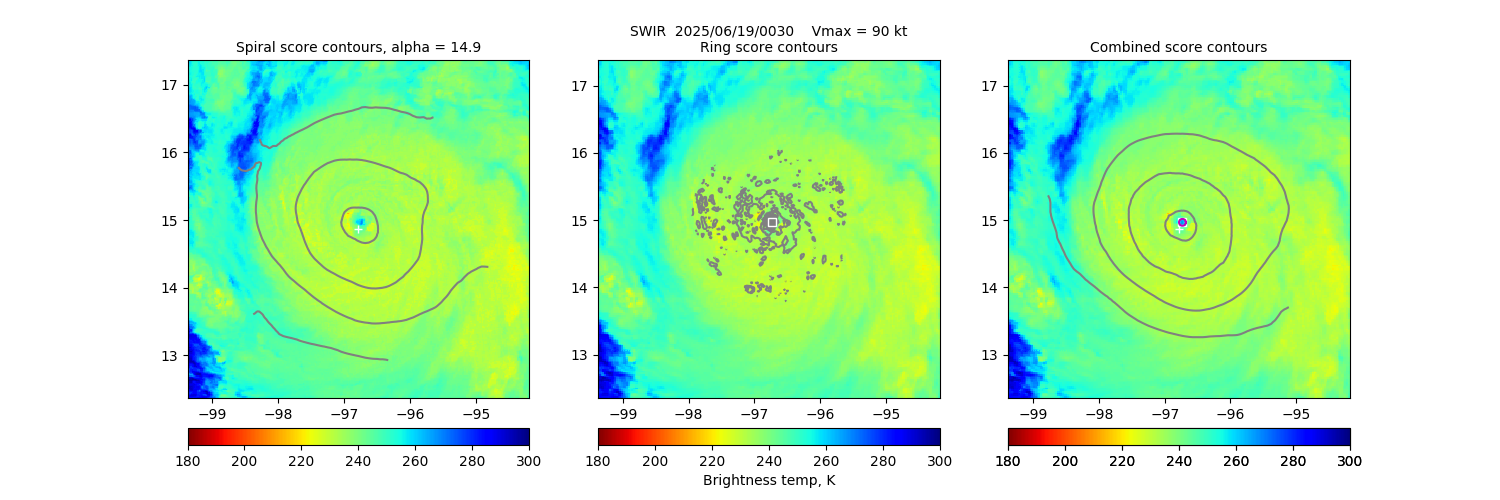

20250619 00:30:20 GOES-19 SWIR 14.87 -96.78 90.0 14.97 -96.73 0.32 0.05 N/A 1.06 14.87 0.0 PNG

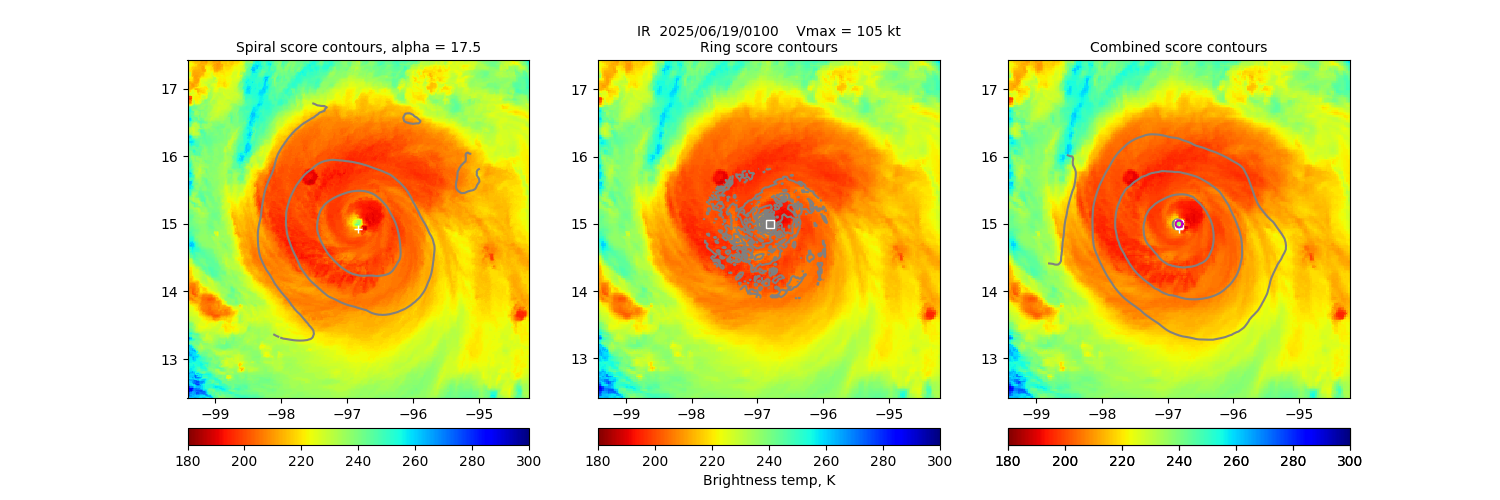

20250619 01:00:20 GOES-19 IR 14.92 -96.83 105.0 15.00 -96.83 0.39 0.05 0.14 1.11 17.50 100.0 PNG
20250619 01:30:20 GOES-19 IR 14.98 -96.88 105.0 15.03 -96.93 0.46 0.05 0.16 0.90 17.50 85.3 PNG

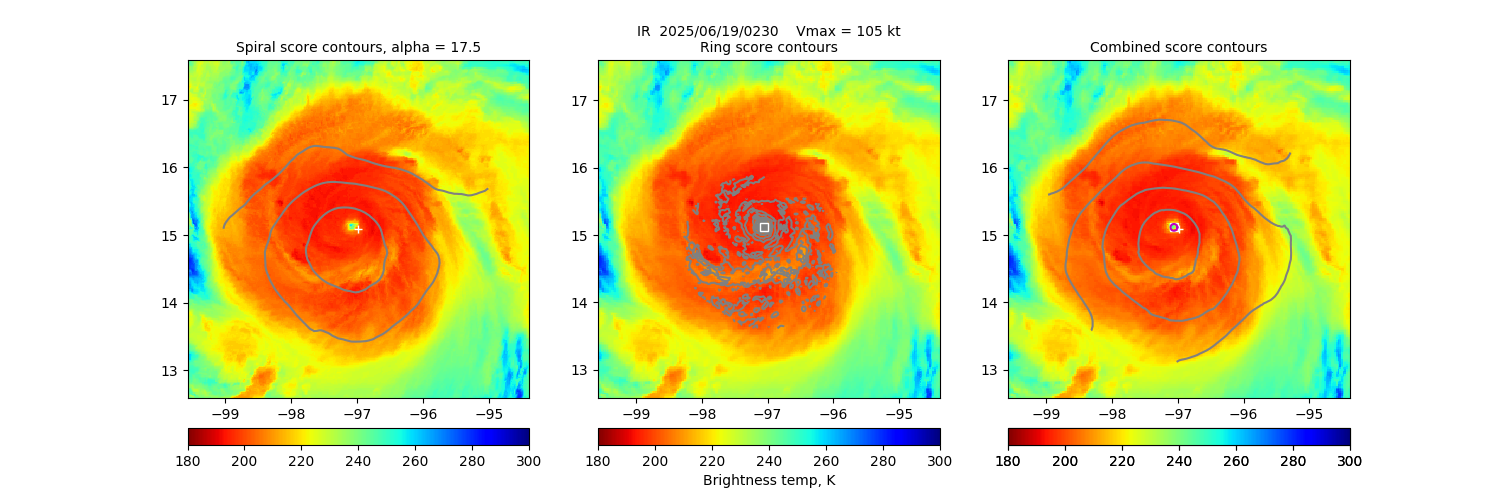

20250619 02:00:20 GOES-19 IR 15.03 -96.93 105.0 15.08 -96.98 0.43 0.05 0.15 0.98 17.50 100.0 PNG
20250619 02:30:20 GOES-19 IR 15.09 -96.98 105.0 15.11 -97.06 0.55 0.05 0.20 0.72 17.50 100.0 PNG
20250619 03:00:20 GOES-19 IR 15.20 -97.11 105.0 15.18 -97.13 0.60 0.05 0.21 0.64 17.50 100.0 PNG
20250619 03:30:20 GOES-19 IR 15.25 -97.17 105.0 15.20 -97.27 0.80 0.05 0.28 0.43 17.50 60.1 PNG

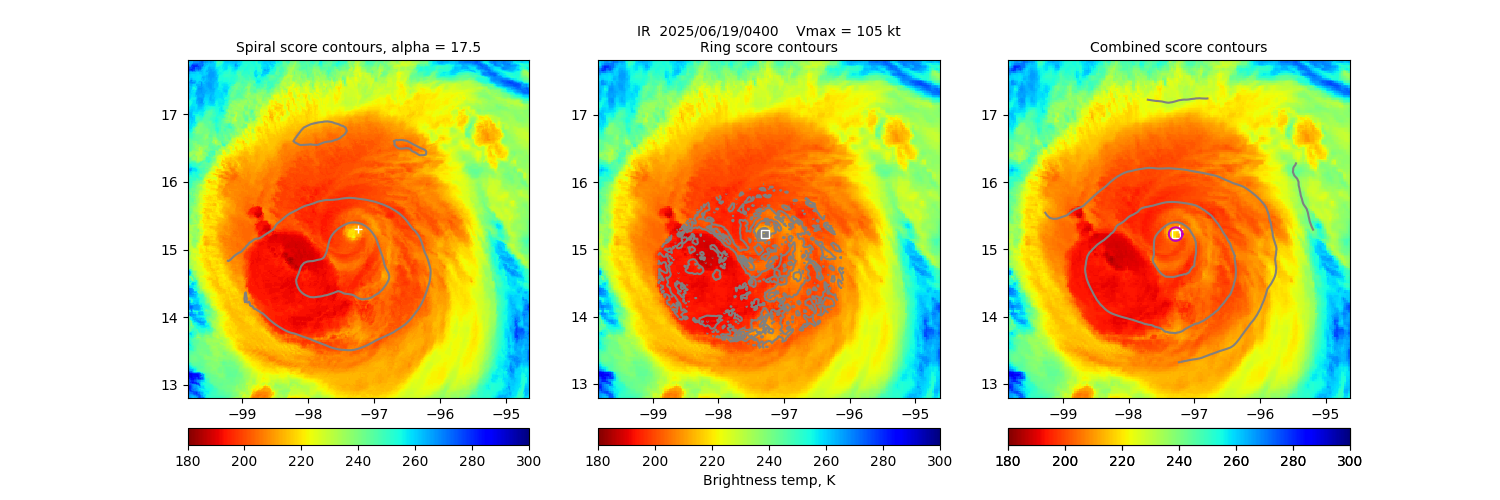

20250619 04:00:20 GOES-19 IR 15.30 -97.23 105.0 15.23 -97.28 0.85 0.10 0.30 0.39 17.50 48.9 PNG
20250619 04:30:20 GOES-19 IR 15.35 -97.29 105.0 15.23 -97.34 1.42 0.05 0.50 0.15 17.50 41.2 PNG
20250619 05:00:20 GOES-19 IR 15.41 -97.34 105.0 15.36 -97.34 1.63 0.05 0.58 0.10 17.50 14.3 PNG

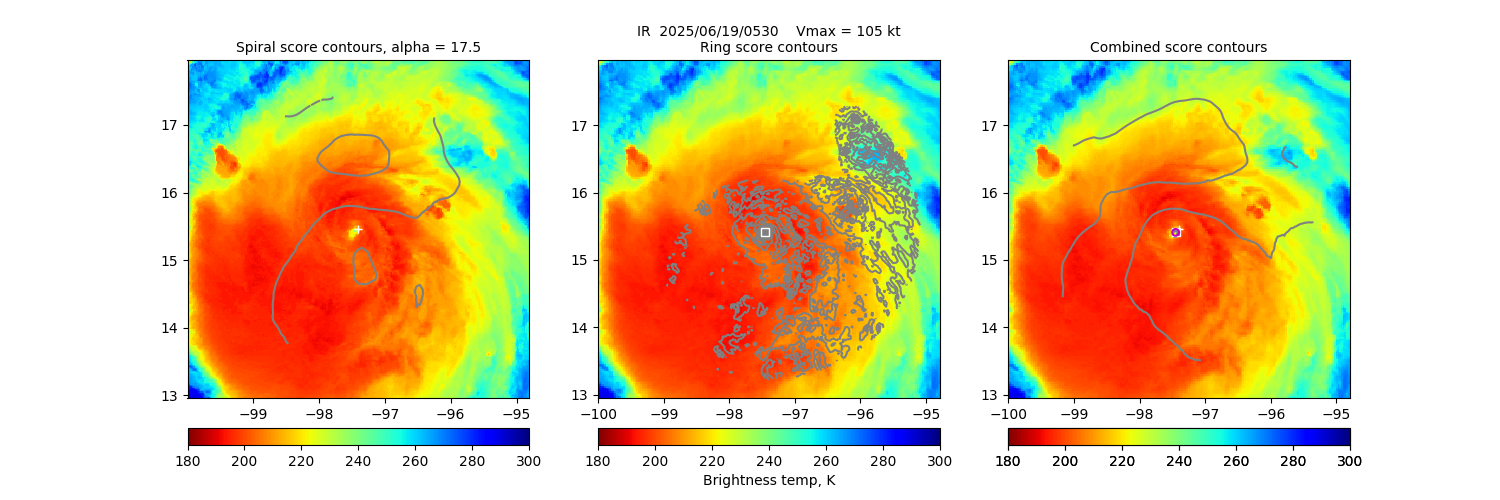

20250619 05:30:20 GOES-19 IR 15.46 -97.40 105.0 15.41 -97.45 1.92 0.05 0.68 0.06 17.50 9.0 PNG

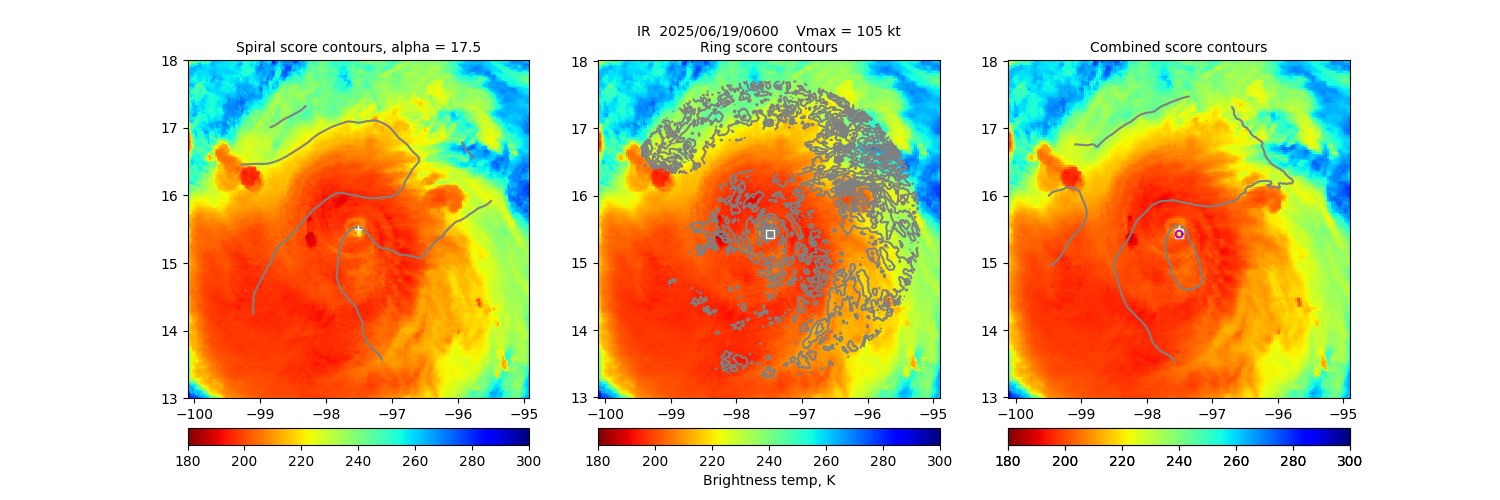

20250619 06:00:20 GOES-19 IR 15.50 -97.51 105.0 15.43 -97.51 1.47 0.05 0.52 0.14 17.50 37.5 PNG
20250619 06:30:20 GOES-19 IR 15.55 -97.57 105.0 15.50 -97.57 1.19 0.05 0.42 0.22 17.50 51.8 PNG
20250619 07:00:20 GOES-19 IR 15.61 -97.63 105.0 15.51 -97.61 1.70 0.05 0.60 0.09 17.50 5.7 PNG
20250619 07:30:20 GOES-19 SWIR 15.66 -97.68 125.0 15.61 -97.63 4.22 0.10 N/A 0.10 27.50 0.0 PNG
20250619 08:00:20 GOES-19 IR 15.71 -97.74 125.0 15.51 -97.84 1.25 0.10 0.44 0.20 27.50 9.1 PNG

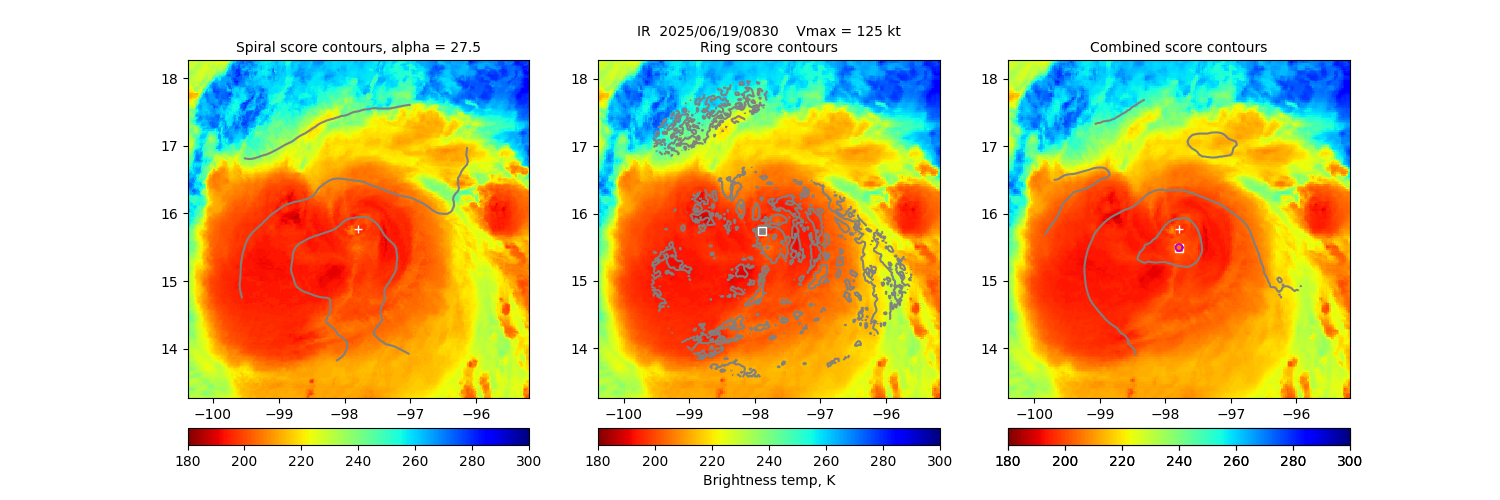

20250619 08:30:20 GOES-19 IR 15.77 -97.79 125.0 15.49 -97.79 1.41 0.05 0.50 0.15 27.50 4.2 PNG

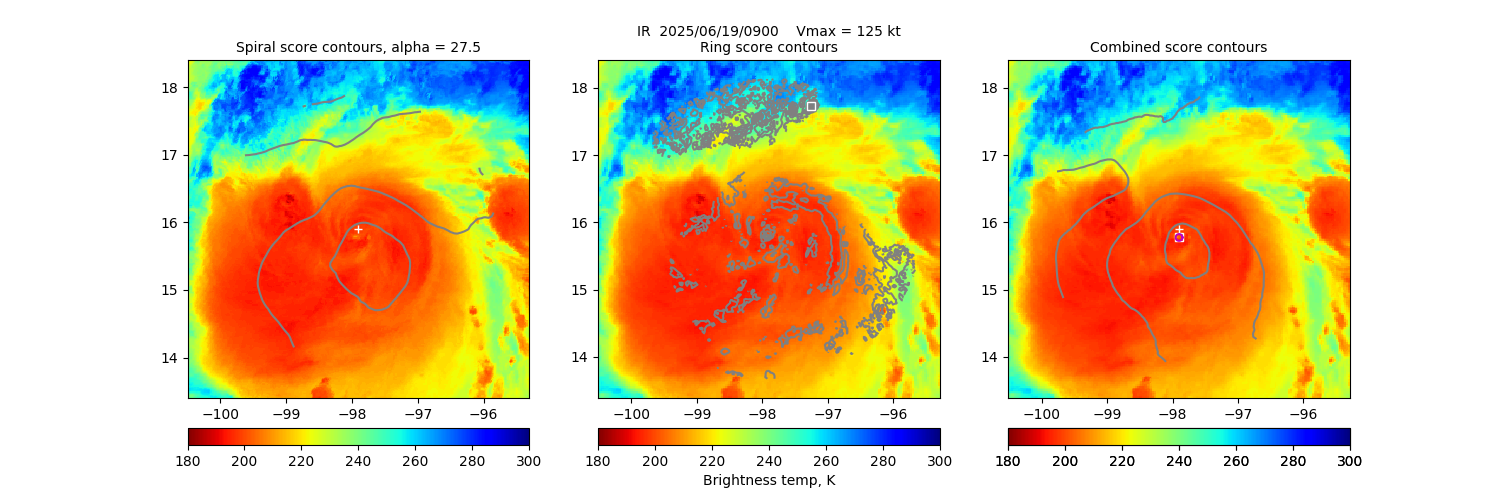

20250619 09:00:20 GOES-19 IR 15.90 -97.90 125.0 15.78 -97.90 1.14 0.05 0.40 0.24 27.50 14.1 PNG

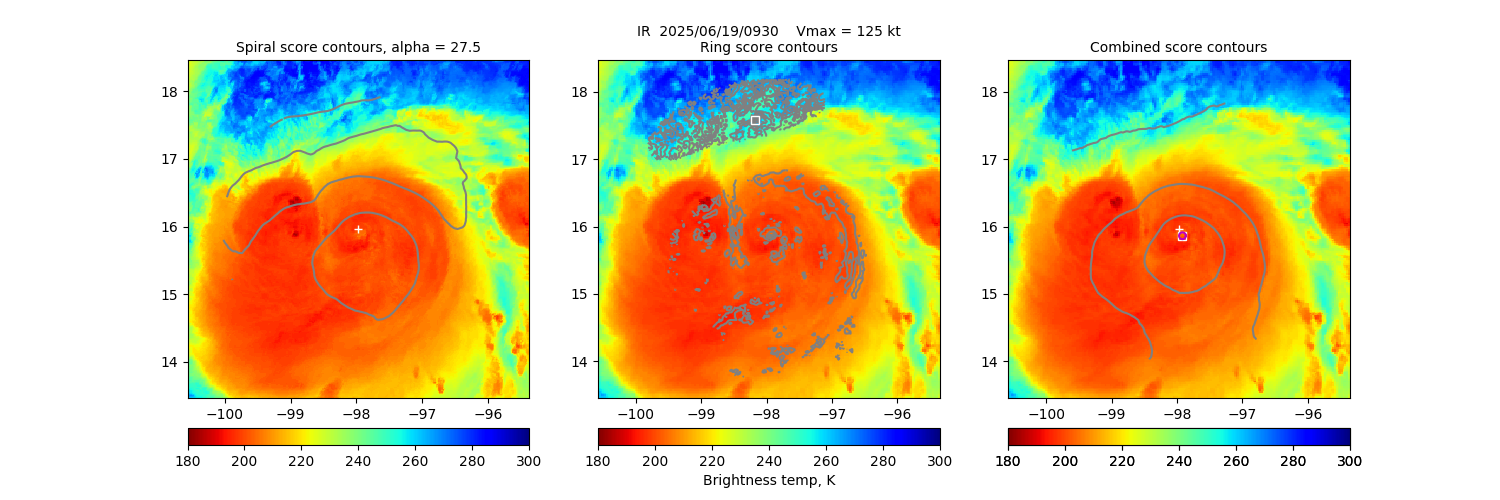

20250619 09:30:20 GOES-19 IR 15.96 -97.97 125.0 15.86 -97.92 1.17 0.05 0.41 0.23 27.50 10.3 PNG

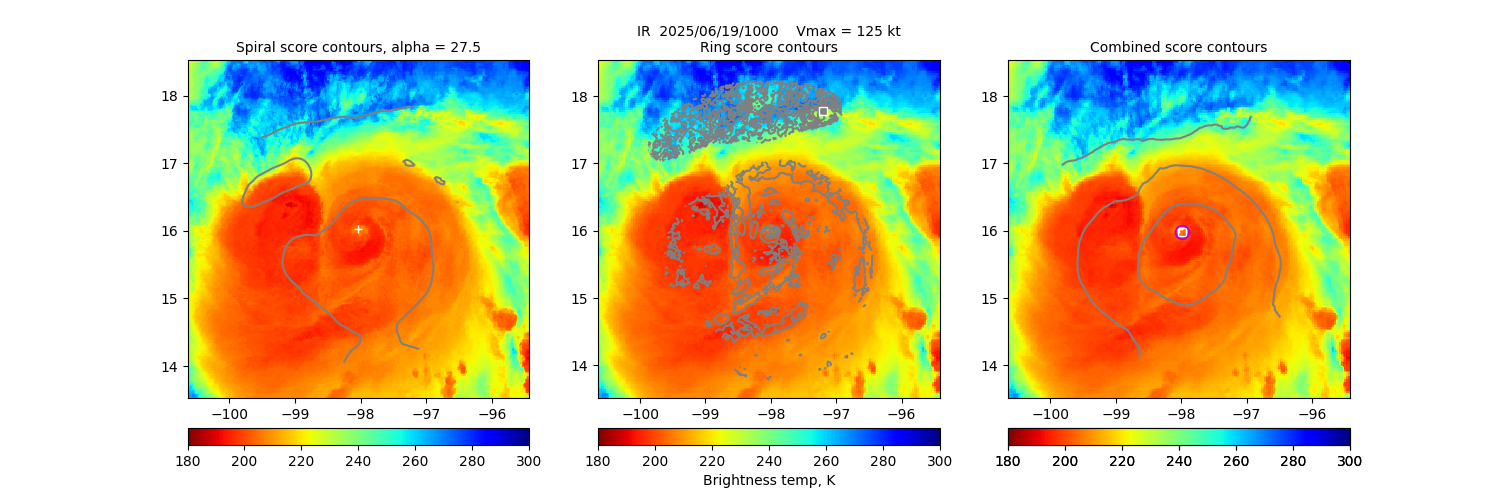

20250619 10:00:20 GOES-19 IR 16.03 -98.03 125.0 15.98 -97.98 1.07 0.10 0.38 0.27 27.50 16.3 PNG

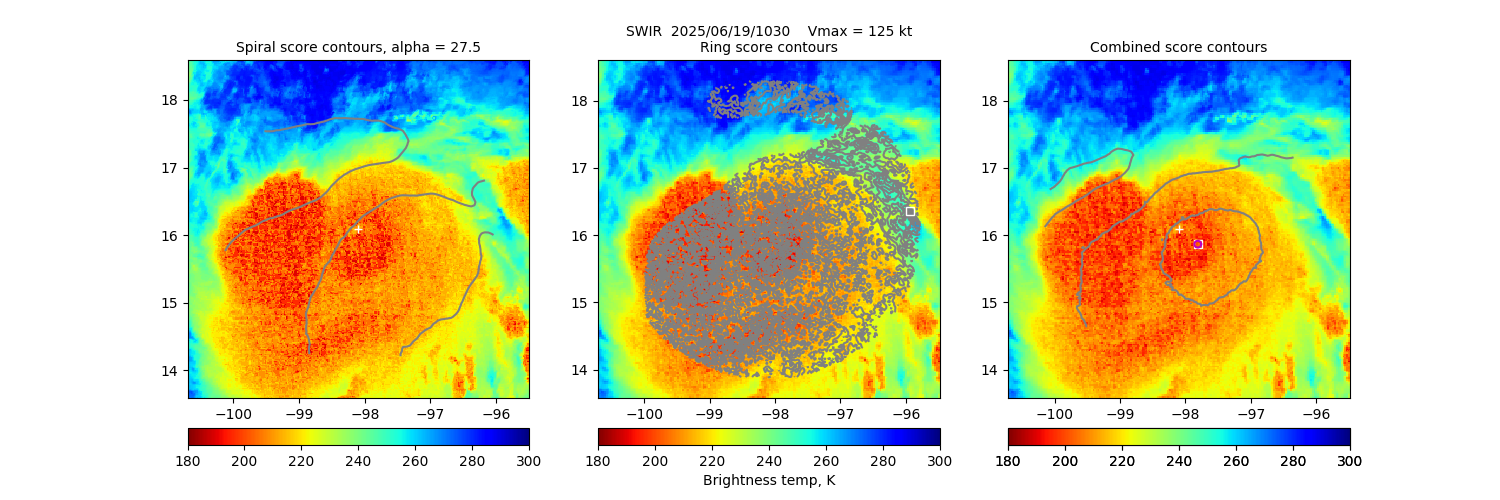

20250619 10:30:20 GOES-19 SWIR 16.09 -98.10 125.0 15.86 -97.81 2.89 0.05 N/A 0.13 27.50 0.0 PNG
20250619 11:00:20 GOES-19 SWIR 16.15 -98.16 125.0 15.72 -97.84 3.33 0.05 N/A 0.12 27.50 0.0 PNG
20250619 11:30:20 GOES-19 SWIR 16.20 -98.22 125.0 15.68 -97.80 4.75 0.10 N/A 0.09 27.50 0.0 PNG
20250619 12:00:20 GOES-19 IR 16.25 -98.28 125.0 16.05 -98.07 2.19 0.10 0.77 0.02 27.50 0.2 PNG
20250619 12:30:20 GOES-19 IR 16.31 -98.34 125.0 16.31 -97.84 1.18 0.05 0.42 0.22 27.50 2.5 PNG
20250619 13:00:20 GOES-19 IR 16.35 -98.39 125.0 16.43 -98.03 0.89 0.05 0.31 0.37 27.50 1.6 PNG
20250619 13:30:21 AMSR2 89GHz 16.03 -98.03 125.0 16.06 -98.34 0.35 0.40 0.13 2.37 7.21 86.1 PNG
20250619 14:00:21 AMSR2 89GHz 16.03 -98.03 125.0 16.09 -98.40 0.35 0.40 0.13 2.37 6.76 86.1 PNG
20250619 14:30:21 AMSR2 89GHz 16.03 -98.03 125.0 16.14 -98.45 0.35 0.40 0.13 2.37 6.35 86.1 PNG
20250619 15:00:21 SSMISF16 89GHz 16.70 -98.80 95.0 16.50 -98.28 0.42 1.45 0.15 1.13 11.39 7.9 PNG
20250619 15:30:21 SSMISF16 89GHz 16.70 -98.80 95.0 16.55 -98.35 0.42 1.45 0.15 1.13 10.02 7.9 PNG
20250619 16:00:21 SSMISF16 89GHz 16.70 -98.80 95.0 16.60 -98.41 0.42 1.45 0.15 1.13 9.50 7.9 PNG
20250619 16:30:21 SSMISF16 89GHz 16.70 -98.80 95.0 16.64 -98.48 0.42 1.45 0.15 1.13 8.98 7.9 PNG
20250619 17:00:20 SSMISF16 89GHz 16.70 -98.80 95.0 16.69 -98.55 0.42 1.45 0.15 1.13 8.47 7.9 PNG
20250619 17:30:20 SSMISF16 89GHz 16.70 -98.80 95.0 16.73 -98.62 0.42 1.45 0.15 1.13 7.98 7.9 PNG
20250619 18:00:20 SSMISF16 89GHz 16.70 -98.80 95.0 16.78 -98.68 0.42 1.45 0.15 1.13 7.52 7.9 PNG
20250619 18:30:20 SSMISF16 89GHz 16.70 -98.80 95.0 16.83 -98.75 0.42 1.45 0.15 1.13 5.28 7.9 PNG
20250619 19:00:20 GMI 89GHz 17.08 -99.34 65.0 18.33 -100.65 0.70 0.65 0.25 0.93 6.77 21.2 PNG
20250619 19:30:20 GMI 89GHz 17.08 -99.34 65.0 18.37 -100.71 0.70 0.65 0.25 0.93 6.69 21.2 PNG
20250619 20:00:20 GOES-19 Vis 17.17 -99.47 65.0 18.45 -101.04 0.69 0.45 N/A 0.48 6.92 0.0 PNG
20250619 20:30:20 GMI 89GHz 17.08 -99.34 65.0 18.46 -100.85 0.70 0.65 0.25 0.93 6.37 21.2 PNG
20250619 21:00:20 GMI 89GHz 17.08 -99.34 65.0 18.64 -101.02 0.70 0.65 0.25 0.93 6.17 21.2 PNG
20250619 21:30:20 GMI 89GHz 17.08 -99.34 65.0 18.70 -101.08 0.70 0.65 0.25 0.93 5.96 21.2 PNG
20250619 22:00:20 GMI 89GHz 17.08 -99.34 65.0 18.75 -101.16 0.70 0.65 0.25 0.93 5.75 21.2 PNG
20250619 22:30:20 GMI 89GHz 17.08 -99.34 65.0 18.79 -101.23 0.70 0.65 0.25 0.93 5.53 21.2 PNG
20250619 23:00:20 GMI 89GHz 17.08 -99.34 65.0 18.85 -101.30 0.70 0.65 0.25 0.93 5.31 21.2 PNG
20250619 23:30:20 GMI 89GHz 17.08 -99.34 65.0 18.89 -101.38 0.70 0.65 0.25 0.93 5.09 21.2 PNG
20250620 00:00:20 GMI 89GHz 17.08 -99.34 65.0 18.95 -101.46 0.70 0.65 0.25 0.93 4.89 21.2 PNG
|
|
Key: - Date/Time: UTC time. If this observation is used in the track it is marked with a "*". If it is used for its own 30-minute window, it is put in bold. - Source/sensor: Satellite source of the analyzed image. - Vmax: Maximum winds listed in the forecast center analysis/forecast, *not* ARCHER. - ARCHER lat/lon: Coordinates of the ARCHER algorithm, valid at the time of the observation. If no center fix could be found, then it is "***". - Geo ref lat/lon: Coordinates of the ARCHER algorithm, valid at the time of the *nearest geo image*. - 50% cert. rad.: Radius of the circle (in degrees) that defines the area in which the ARCHER center of rotation is 50% certain. The lower the number, the more certain the position. - 95% cert. rad.: Radius of the circle (in degrees) that defines the area in which the ARCHER center of rotation is 95% certain. - Eye diam (deg): ARCHER-resolved eye diameter (in degrees). Green: robust, yellow: less certain, red: not robust. - % cert. of eye: Percent certainty that an eye exists in this image, determined by ARCHER. Currently only available for IR and 85-92 GHz imagery.
|
|
