Tropical Cyclone 22W (Krovanh)
Latest Real-Time CIMSS Product Summary
Current Time :     		NHC/JTWC
Click on product name to access the full product homepage for each specific storm
Mouse over images to enlarge; click to view in window
Product Latency Color Code : Less than 3 hours old   3 - 6 hours old   6 - 12 hours old   Greater than 12 hours old   Not Available
Current Intensity Estimates ADT
Date Time Vmax MSLP
02Sep2026 0040UTC 32 kts 994 hPa
Scene CI# FT# AdjT# RawT# Eye T Cloud T
SHEAR 2.2 2.2 2.5 2.5 15.80C -10.53C
AiDT-V2
Date Time Vmax
02Sep2026 0040UTC 33 kts

DPRINT
Date Time Vmax MSLP
02Sep2026 0010UTC 29 kts 997 hPa
Vmax 25% Vmax 75%
27 kts 33 kts
DMINT
Date Time Vmax MSLP
01Sep2026 2034UTC 31 kts 998 hPa
Vmax 25% Vmax 75% MW Instr.
28 kts 34 kts GMI
Date Time Vmax MSLP
01Sep2026 1948UTC 30 kts 997 hPa
Vmax 25% Vmax 75% MW Instr.
27 kts 34 kts SSMISF18
MW Sounders
Date Time Vmax MSLP
01Sep2026 1717UTC 37 kts 990 hPa
  Satellite FOV
  NOAA-20 14

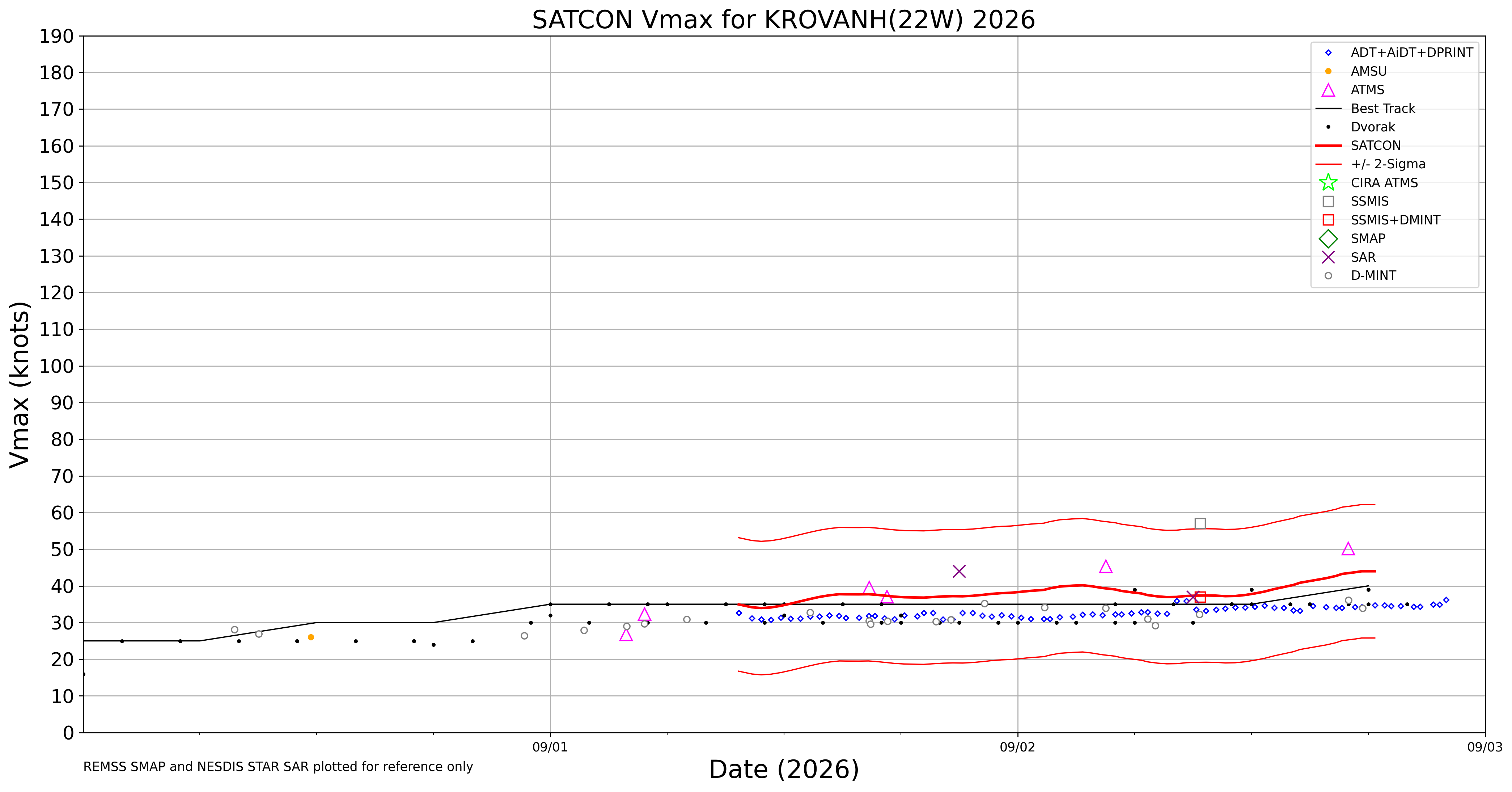

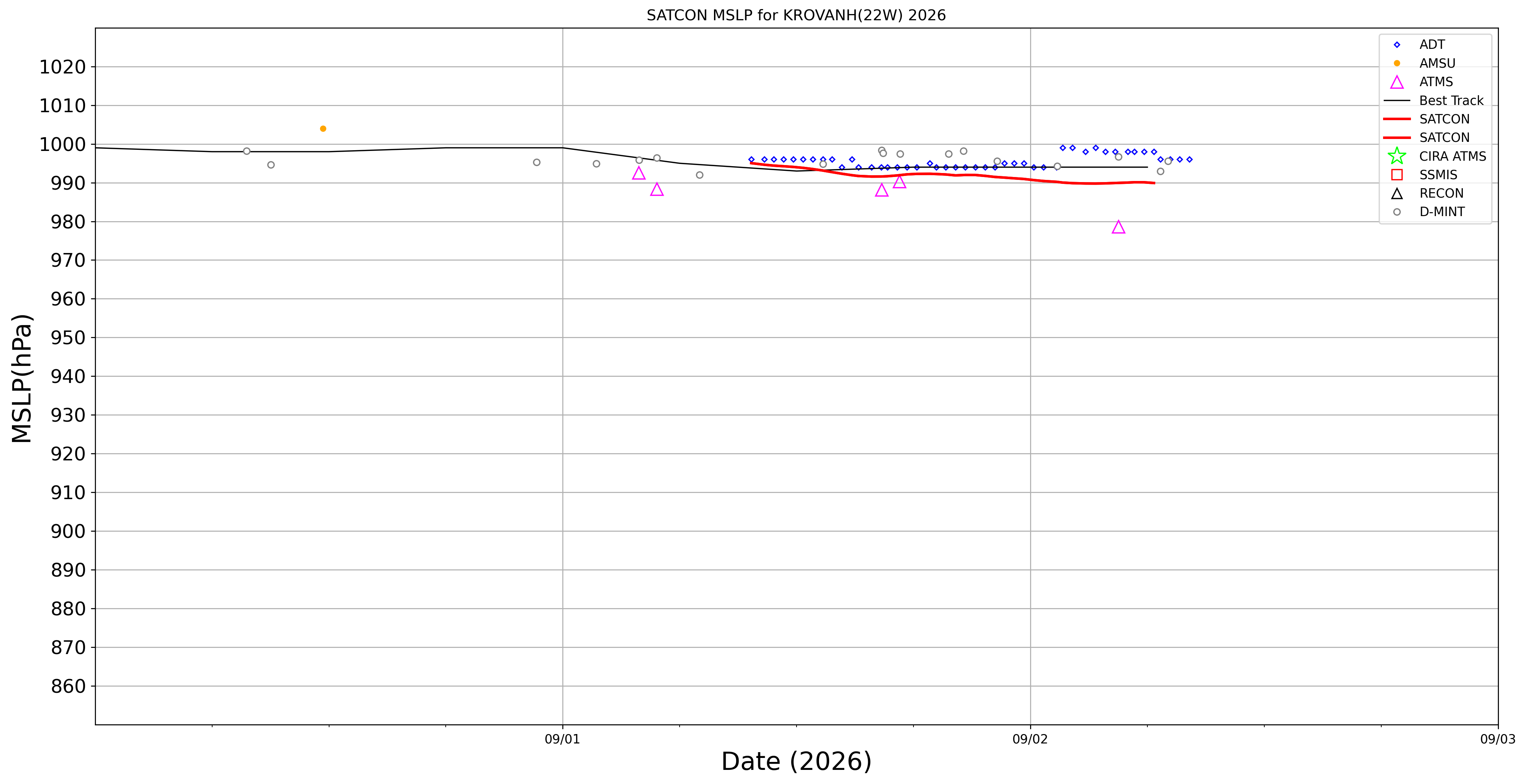

SATCON
Date Time Vmax MSLP
01Sep2026 1910UTC 38 kts 992 hPa
Consensus Members
2 (ADT+Sounders)

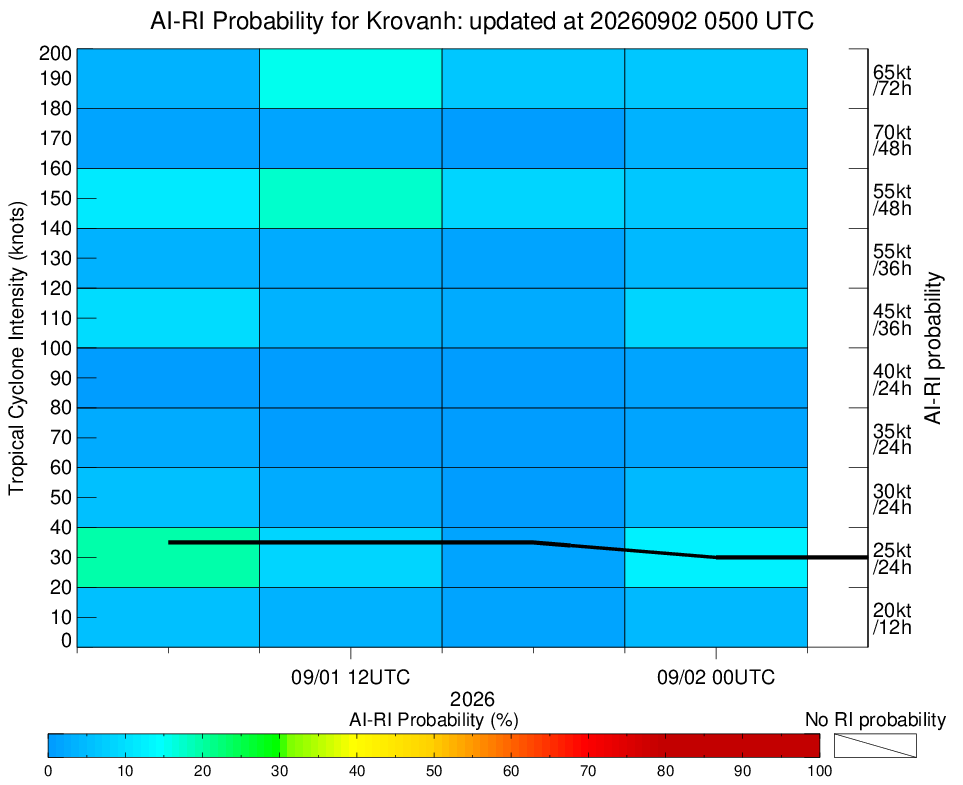

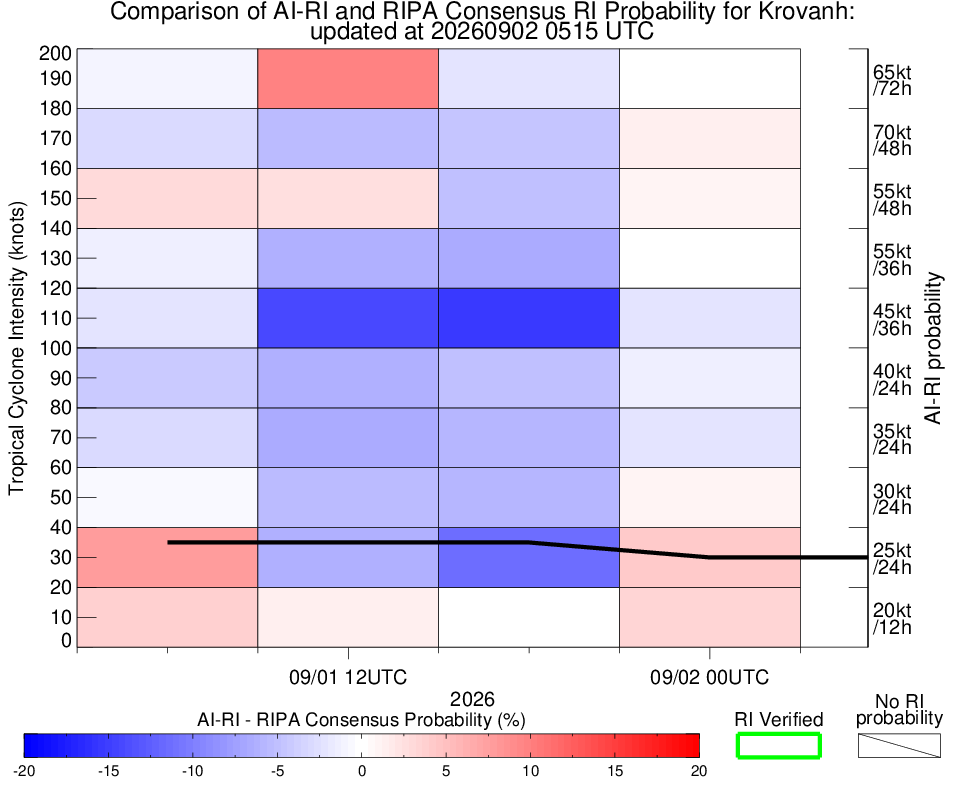

RI Forecast AI-RI
Date Time Current Vmax Current MPI
01Sep2026 1800UTC 35 kts 115 kts
20kt/12h 25kt/24h 30kt/24h 35kt/24h 40kt/24h 45kt/36h 55kt/48h 65kt/72h
2.0% 1.6% 0.5% 0.3% 0.2% 2.4% 8.2% 6.6%

Position Estimates ARCHER
Date Time Latitude Longitude
01Sep2026 1948UTC 22.65N 133.24E
Satellite Sensor Eye Diameter Eye Cert %
SSMIS-18 89-92GHz 1.30 deg 4.7%

TC Structure MPERC
Date Time Prob. ERC onset
Full Model		 Prob. ERC onset
V-based
N/A N/AUTC N/A N/A

MIMIC-TPW

MIMIC-TC

Shear Analysis
Date Time Shear Magnitude
 Shear Direction
02Sep2026 000UTC 8 kts 57 deg
Deep-layer vertical wind shear interpolated to storm center derived from the CIMSS AMV-aided analyses with vortex removed

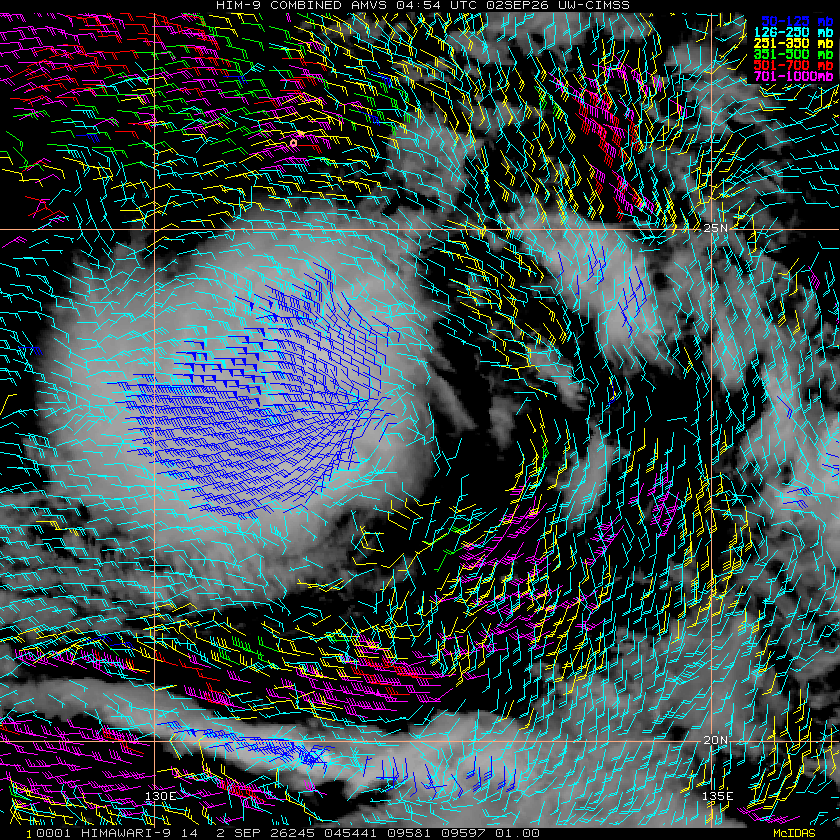

TC-Scale AMVs
